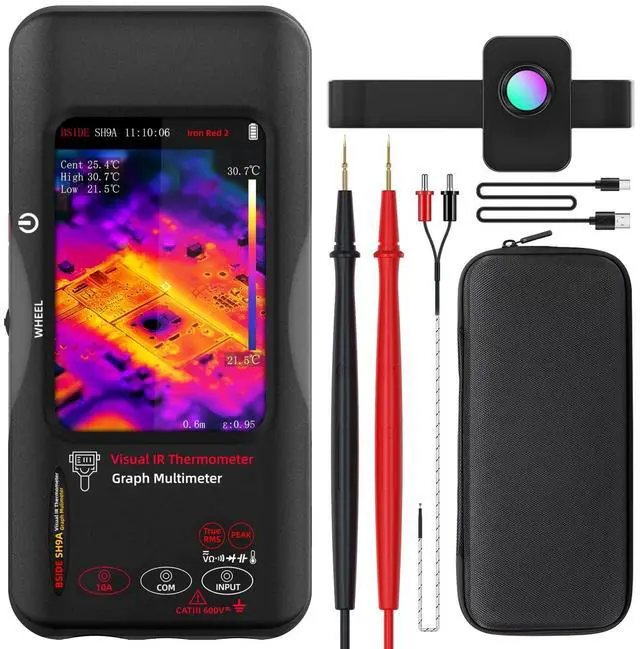

BSIDE Thermal Imaging Multimeter Date Recorder with Macro Lens, 428x320 IR Resolution with 15 Thermal Palettes, 20000 Counts with Dual-Light Fusion, Measures Cap Amp Temp Diode for PCB Circuit Break
- Features: Handheld thermal imaging camera Infrared camera with touch LCD screen 20000 counts smart digital multimeter Thermal multimeter integrates data recorder 320 x 428 ir resolution thermal imaging camera 320 x 480 screen display resolution infrared camera Measures ac and dc voltage, resistance and continuity Measures capacitance, amps, diode and temperature Display hot, cold and central spots temperature on the screen The emissivity of infrared imaging camera is adjustable Rechargeable portable infrared camera with 15 thermal palettes Tested data can be exported to your computer for analyzed for home inspection, hvac electrical plumbing, electronic maintenance Specification: 1.Infrared Camera Display Size: 3.98 Inch TFT LCD IR Resolution: 320 x 428 Screen Resolution: 320 x 480 Angle of View (FOV): 50.0°(H)x 37.2°(V)/63.6°(D) Spatial Resolution (IFOV): 8.89mrad Temperature Range: -20-550(-4-1022) Thermal sensitivity/NETD: Less 50mk Refresh Rate: 25Hz Distance Settings: 0.3-3 m Emissivity: 0.01-1 Thermal Palettes: 15 Number of storage image: 12900 MAX Display: 20000 counts DC voltage: 20mV/200mV/2V/20V 0.001mV/0.01mV/0.0001V/0.001V ±(0.1%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3) AC voltage: 20mV/200mV/2V/20V/200V/750V 0.001mV/0.01mV/0.0001V/0.001V/0.01V/0.1V ±(0.5%+3); AC Current (40Hz-1KHz): 2A/10A 0.0001A/0.001A ±(0.8%+3) DC Current: 2A/10A 0.0001A/0.001A ±(0.8%+3) Resistance: 200 0.01 ±(0.5%+3); 2k/20K/200K 0.0001K/0.001K/0.01K ±(0.2%+3); 2M/20M 0.0001M/0.001M
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
[428x320 IR

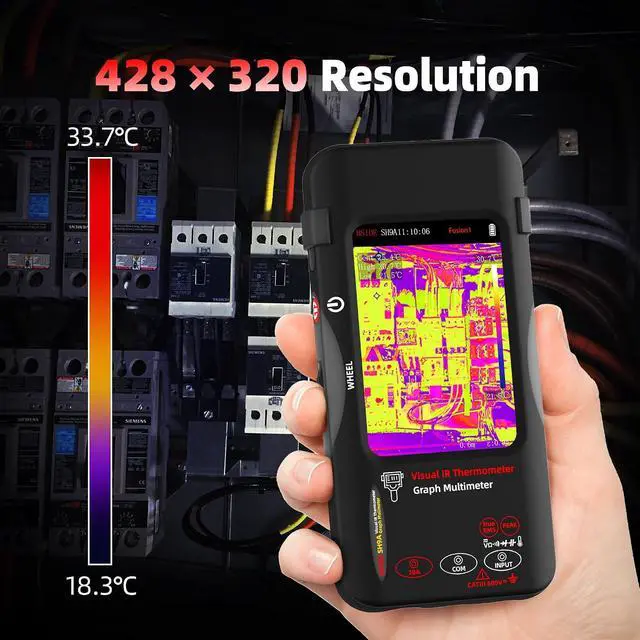

Infrared Camera]: BSIDE SH9A thermal camera features 428 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.;

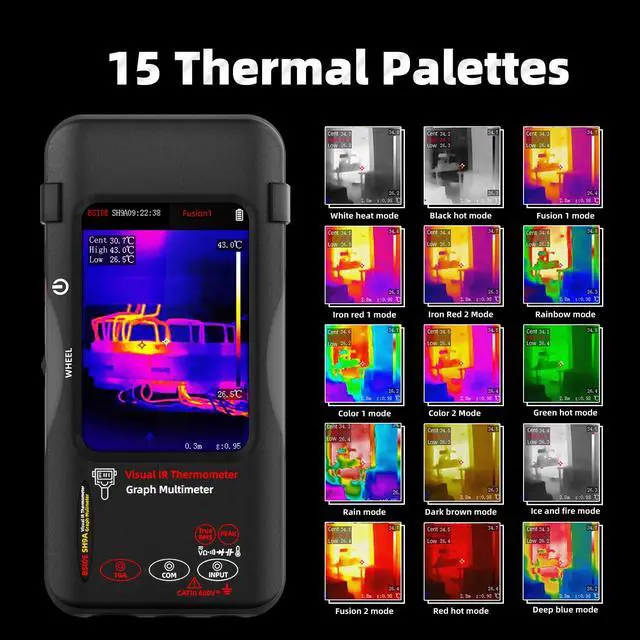

[15 Thermal Palettes]: Handheld thermal imager has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.;

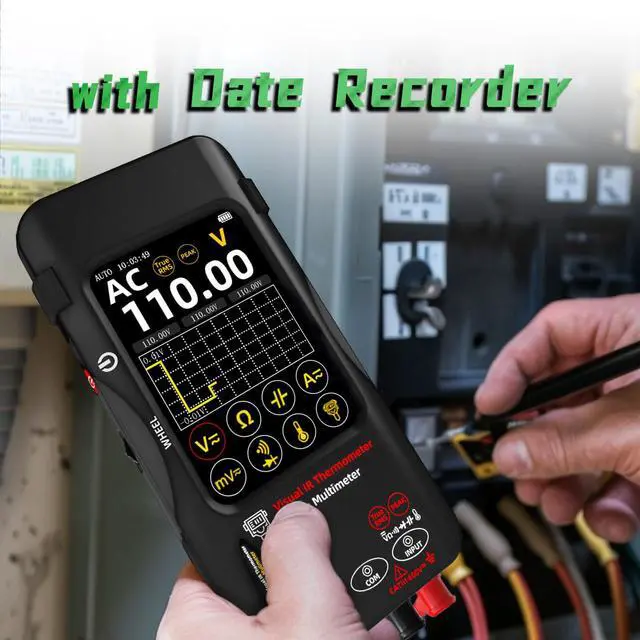

[Date Recorder]: Thermal multimeter can record the graph of tested data over time. Such as voltage, resistance, current, capacitance, temperature. Records up to 3 measurements.;
[with Macro Lens]: Infrared camera with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc.
Working object distance: 35mm;
Magnification: 0.3X; [20000

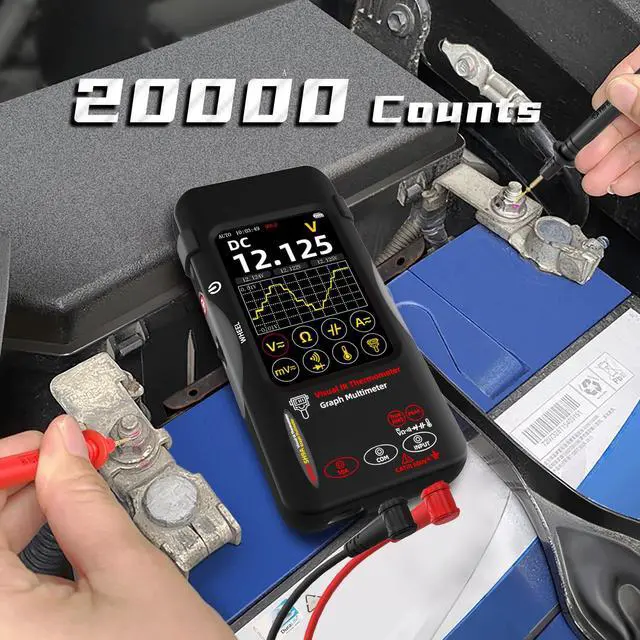

Counts Multimeter]: Thermal camera integrated multimeter design, which measures amp, capacitance, diode, temperature, voltage, resistance, continuity, etc.;

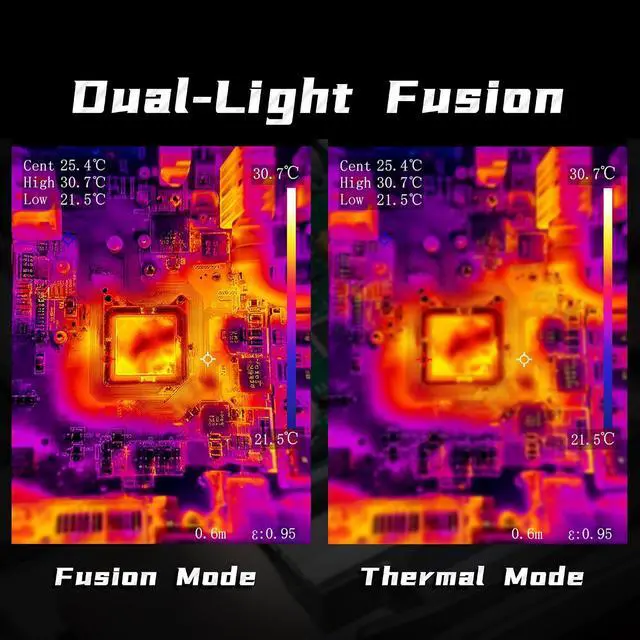

[Dual-Light Fusion]: Handheld thermal camera with dual-light fusion overlays regular and thermal images for enhanced visibility, making it ideal for professional inspections and industrial troubleshooting.; [ 3.98

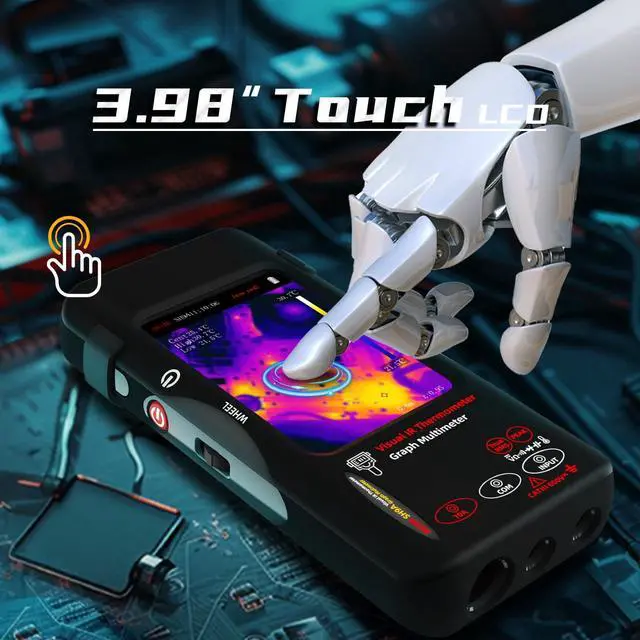

Touch TFT Screen]: Infrared camera multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.;
[Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20 to 550(-4 to 1022).; [Efficient
Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 12, 900 images.;
[Super Battery Life]: Smart digital multimeter comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.
Infrared Camera]: BSIDE SH9A thermal camera features 428 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.;
[15 Thermal Palettes]: Handheld thermal imager has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.;
[Date Recorder]: Thermal multimeter can record the graph of tested data over time. Such as voltage, resistance, current, capacitance, temperature. Records up to 3 measurements.;
[with Macro Lens]: Infrared camera with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc.
Working object distance: 35mm;
Magnification: 0.3X; [20000
Counts Multimeter]: Thermal camera integrated multimeter design, which measures amp, capacitance, diode, temperature, voltage, resistance, continuity, etc.;
[Dual-Light Fusion]: Handheld thermal camera with dual-light fusion overlays regular and thermal images for enhanced visibility, making it ideal for professional inspections and industrial troubleshooting.; [ 3.98
Touch TFT Screen]: Infrared camera multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.;
[Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20 to 550(-4 to 1022).; [Efficient
Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 12, 900 images.;
[Super Battery Life]: Smart digital multimeter comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.
