BSIDE DC Current Clamp Meter 6000 Counts Digital Multimeter Amp Continuity Ohm Hz Live Check V-Alert Voltage Tester with Back Clip

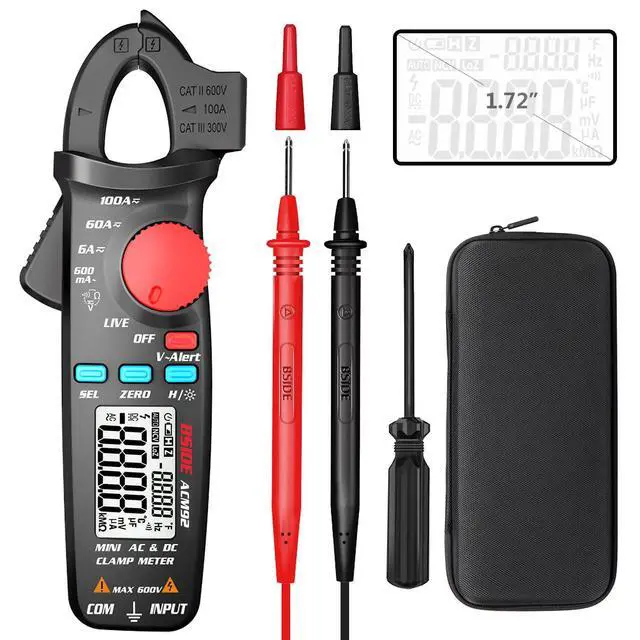

- Features: Measure DC Current (minimum 1mA by jaws) Measure AC Current (minimum 0.1mA by jaws) Measure AC/DC voltage V-alert measurement, live-wire check Measure frequency, resistance and continuity Clamp on frequency function Auto power off, data hold, low battery indication with backlight Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II Specifications: Display: 6000 counts DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+10 counts) AC current: 600mA 0.1mA ±(3.0%+10 counts); 6A/60A/100A 0.1mA/0.001A/0.01A/0.1A ±(2.5%+10 counts) DC voltage: 600V 0.1V ±(1.0%+5 counts) AC voltage: 600V 0.1V ±(1.0%+3 counts) Resistance: 6000 1 ±(1.0%+3 counts) Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.5%+5 counts) Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5 counts) V-Alert: LCD display flashes and alarm buzzer sounds when detected AC voltage Continuity: If the resistance is less than 30, the continuity beeper sounds Jaw Capacity: 20mm Power: 1.5V (AAA) x 2 Size: 179 x 67 x 36 mm Weight: 137g Package Includes: 1 x Clamp Meter 1 x Test Leads 1 x Carrying Case 1 x Screwdriver 1 x User Manual Note: The batteries are not included in the package due to Aviation Security Check Before testing DC current, zero out the readings several times and hold the meter in the same orientation when taking readings. Because clamp meter is use the Hall effect sensor to detect dc current.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
[Ultra

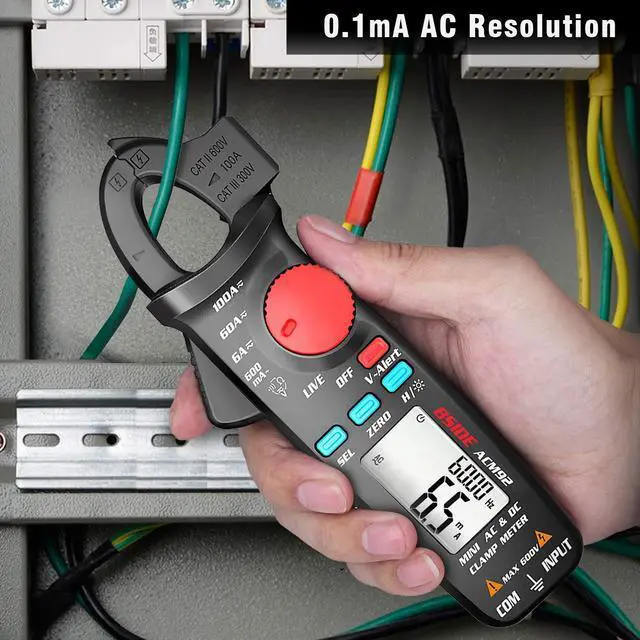

Steady & Accurate]: The new generation of our best-selling clamp meter ever - now more steady and accurate when test current, especially super low current.; [ 0.1 mA
AC Resolution]: Delivers 0.1 mA AC resolution and sensitivity.;

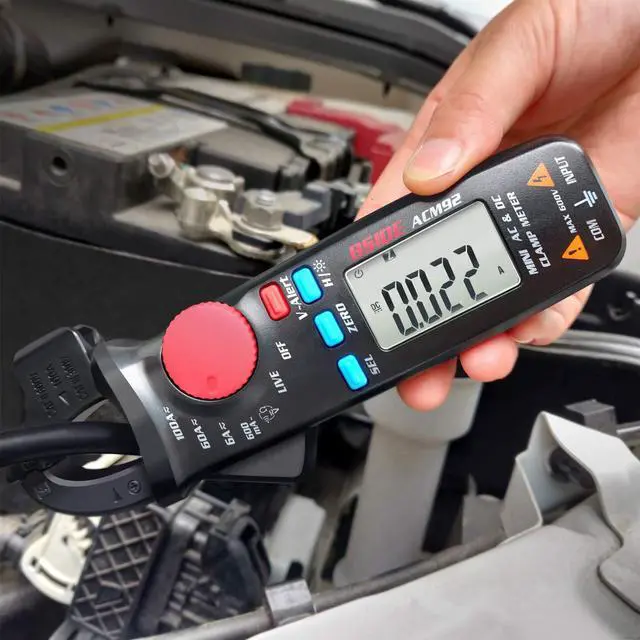

[1mA Resolution]: Delivers 1mA resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.;
[Dual Line Display]: Dual line display can show both AC voltage/current and frequency on the screen.;
[Probe Holder]: Side probe holder make measurement more convenient, especially for narrow or tight space environment.; The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions. 1) Zero out the readings before each measurement. 2) Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed. 3) Measures the dc current within 3 seconds, and you will get a accurate results.
Steady & Accurate]: The new generation of our best-selling clamp meter ever - now more steady and accurate when test current, especially super low current.; [ 0.1 mA
AC Resolution]: Delivers 0.1 mA AC resolution and sensitivity.;
[1mA Resolution]: Delivers 1mA resolution and sensitivity, which make it a great a tool for measuring such as parasitic draws.;
[Dual Line Display]: Dual line display can show both AC voltage/current and frequency on the screen.;
[Probe Holder]: Side probe holder make measurement more convenient, especially for narrow or tight space environment.; The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions. 1) Zero out the readings before each measurement. 2) Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed. 3) Measures the dc current within 3 seconds, and you will get a accurate results.
