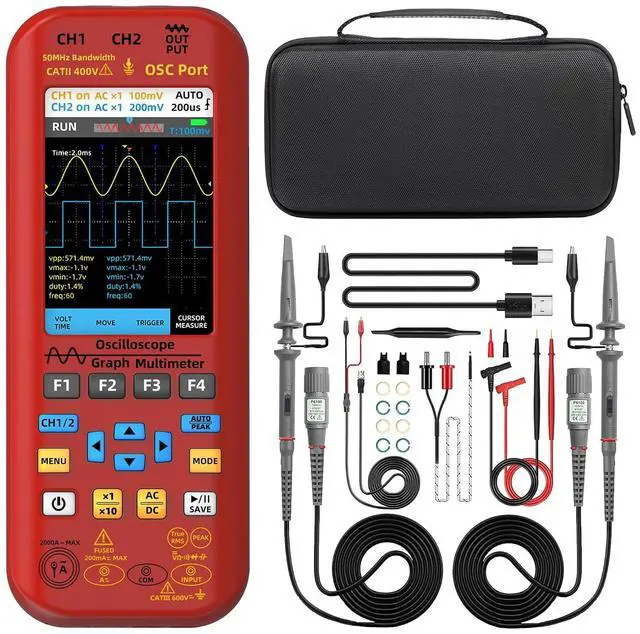

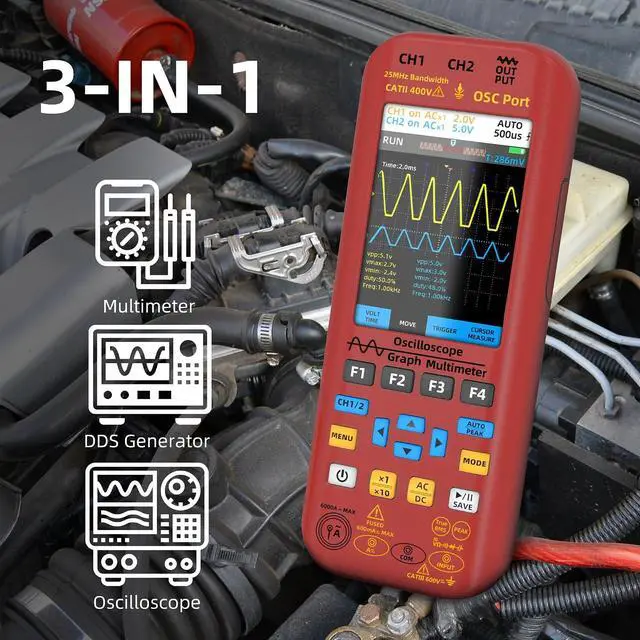

    BSIDE Dual Channel Oscilloscope Multimeter, 50MHz Bandwidth 3.98" Full-Viewing TFT LCD DDS Generator, Measure Flexible AC Current Clamp Temp Capacitance Diode Voltage with 5000mAh Rechargeable Battery

    Be the first to review this product...

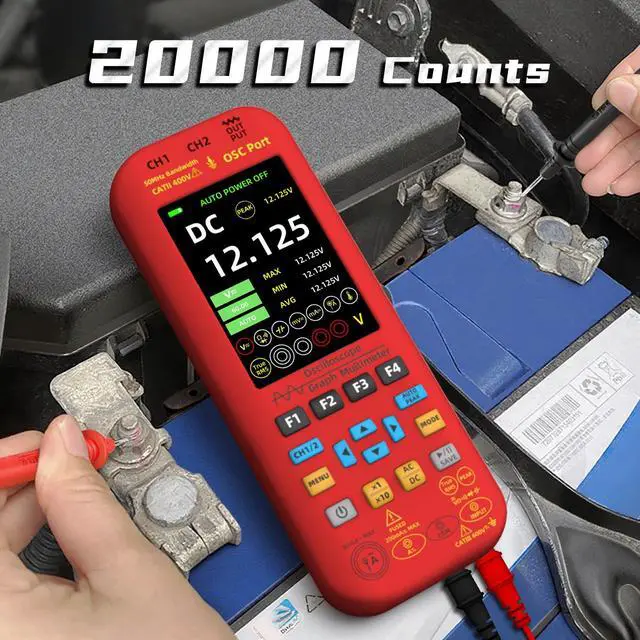

    • Features: Dual channel with 50MHz bandwidth 3.98 inch TFT color display voltmeter Rechargeable graph scope tester Handheld smart digital multimeter tester Measures ac and dc current, capacitance and diode Measures ac and dc voltage, resistance, a-alert and continuity Measures flexible ac current clamp, temperature and live wire check Tested data can be saved and exported to your computer, PC Rechargeable intelligent digital voltmeter with low battery indication Specifications: MAX Display: 20000 counts Bandwidth: 50MHz Channel: 2 Real-time sample rate: 250MSa/s Input Impedance: 1M,@16pf Maximum input voltage: 300V (DC+AC peak) Horizontal SEC range: 100ns/div -20s/div Vertical sensitivity: 20mV/div -100V/div DC voltage: 20mV 0.001mV (1%+5); 200mV/2V/20V 0.01mV/0.0001V/0.001V/ (0.8%+3); 200V/1000V 0.01V/0.1V (1%+5) AC voltage: 20mV 0.001mV (1.2%+5); 200mV/2V/20V 0.01mV/0.0001V/0.001V/ (1%+3); 200V/7500V 0.01V/0.1V (1.2%+5) DC current: 20mA/200mA 0.001mA/0.01mA (1%+3) AC current: 20mA/200mA 0.001mA/0.01mA (1.2%+5) Flexible AC Current: 200A/2000A 0.1A/1A (1.0%+5) Resistance: 200 0.01 (1.2%+5); 2k/20K/200K 0.001K/0.01K/0.1K (1.0%+3); 2M 0.0001M (1.2%+5); 20M/200M 0.001M/0.01M (1.5%+5) Capacitance: 999.99nF 0.01nF (5.0%+20); 9.999µF/999.9µF 0.001µF/0.01µF (4.5%+5); 99.999mF 0.001mF (5%+10) Temperature: -201000/-4-1832 1/1 (2.5%+5) Diode: Yes Continuity: Yes Output Waveforms: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, dc wave Fre
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

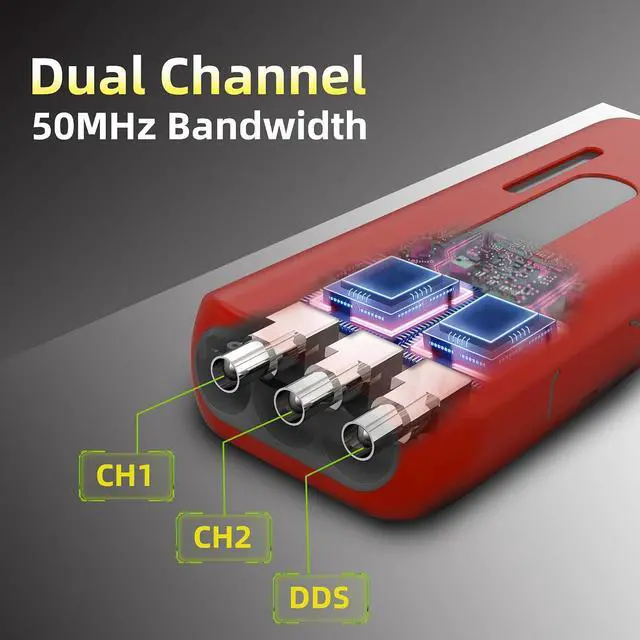

    [Dual Channel 50MHz
    Bandwidth]: Dual channel oscilloscope multimeter features 50MHz bandwidth, 250MSa/s sampling rate, 128kb record depth, etc.; [ 3.98"

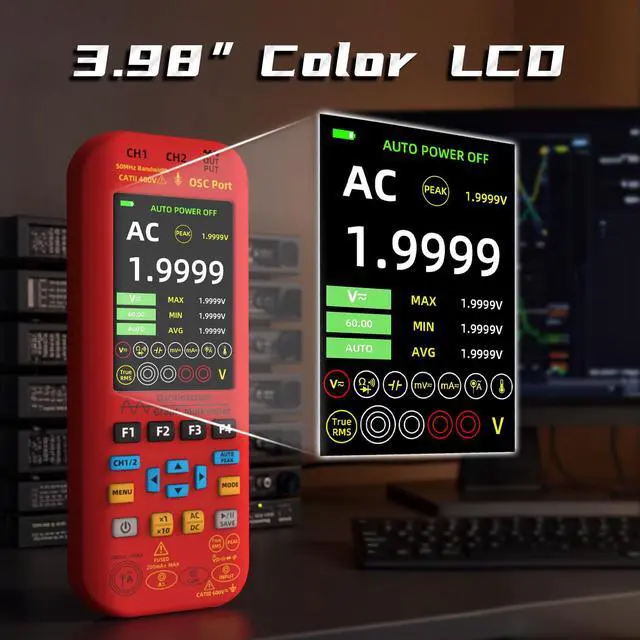

    TFT Display]: Automotive oscilloscope multimeter features ultra-large 3.98 inch color screen, which greatly enhance your reading experience, you can get the measurement very easy, even in bright sunlight or poor light.;
    [Full-Viewing LCD]: Handheld oscilloscope multimeter equipped with ultra-wide angle 480*320 screen, which provides you with best reading enjoyment, you could get the clear test results at wide angle.; [Flexible AC
    Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.;
    [5000mAh Rechargeable Battery]: BSIDE O9 multimeter tester comes with rechargeable 5000mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurements.
