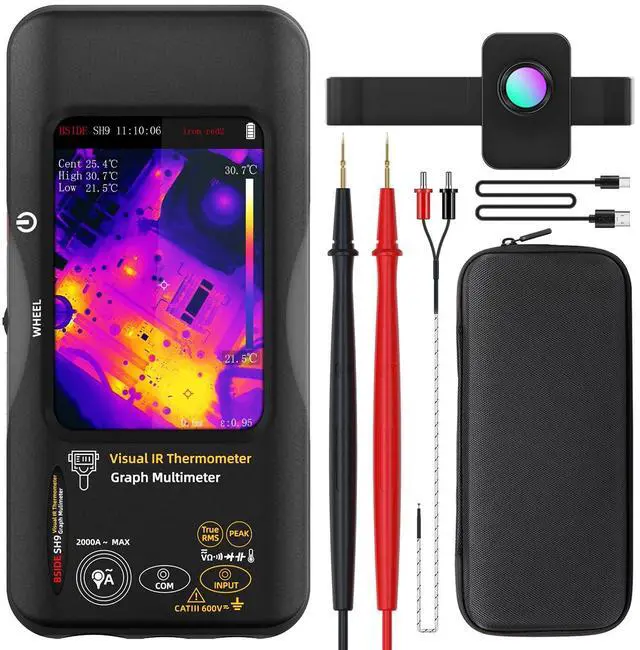

BSIDE Thermal Imager Multimeter Date Recorder, Dual-Light Fusion with 428x320 IR Resolution, 20000 Count 15 Thermal Palettes Infrared Camera with Macro Lens for PCB Water Leak Circuit Break Electronic
- Features: Handheld thermal imaging camera Infrared camera with touch LCD screen 20000 counts smart digital multimeter Thermal multimeter integrates data recorder 320 x 428 ir resolution thermal imaging camera 320 x 480 screen display resolution infrared camera Measures ac and dc voltage, resistance and continuity Measures capacitance, diode, temperature and ac current clamp Display hot, cold and central spots temperature on the screen The emissivity of infrared imaging camera is adjustable Rechargeable portable infrared camera with 15 thermal palettes Tested data can be exported to your computer for analyzed for home inspection, hvac electrical plumbing, electronic maintenance Specification: 1.Infrared Camera Display Size: 3.98 Inch TFT LCD IR Resolution: 320 x 428 Screen Resolution: 320 x 480 Angle of View (FOV): 50.0°(H)x 37.2°(V)/63.6°(D) Spatial Resolution (IFOV): 8.89mrad Temperature Range: -20-550(-4-1022) Thermal sensitivity/NETD: Less 50mk Refresh Rate: 25Hz Distance Settings: 0.3-3 m Emissivity: 0.01-1 Thermal Palettes: 15 Number of storage image: 15000 2.Digital Multimeter MAX Display: 20000 counts DC Voltage: 20mV/200mV 0.001mV/0.01mV ±(0.1%+3); 2V/20V 0.0001V/0.001V/ ±(0.1%+3); 200V/1000V 0.01V/0.1V ±(0.5%+3) AC Voltage: 20mV/200mV 0.001mV/0.01mV ±(0.5%+3); 2V/20V/200V/750V 0.0001V/0.001V/0.01V/0.1V ±(0.05%+3) Flexible AC Current: 200A/2000A 0.1A/1A Resistance: 200 0.01 ±(0.5%+3); 2k/20K/200K 0.0001K/0.001K/0.01K ±(0.2%+3); 2M/20M 0.0001M/0.001M ±(
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
[428x320 IR

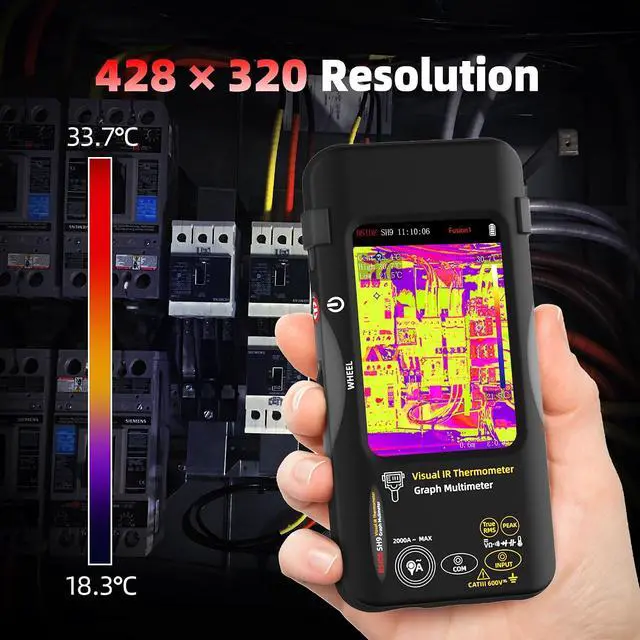

Infrared Camera]: Thermal imaging camera has 428 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.;
[Dual-Light Fusion]: Handheld thermal imager with dual-light fusion overlays regular and thermal images for enhanced visibility, making it ideal for professional inspections and industrial troubleshooting.;
[20000 Counts Multimeter]: BSIDE SH9 Infrared camera integrated multimeter, which measures flexible ac current clamp, capacitance, diode, temperature, ac and dc voltage, resistance, continuity, etc.;

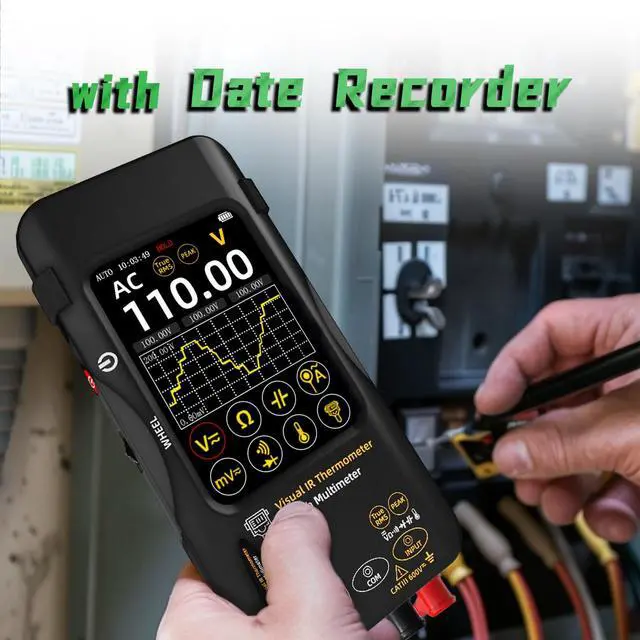

[Recording Mode]: Smart digital multimeter can records the graph of tested data over time. Records up to 3 measurements.;
[with Macro Lens]: Thermal imager with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc.
Working object distance: 35mm;
Magnification: 0.3X.;

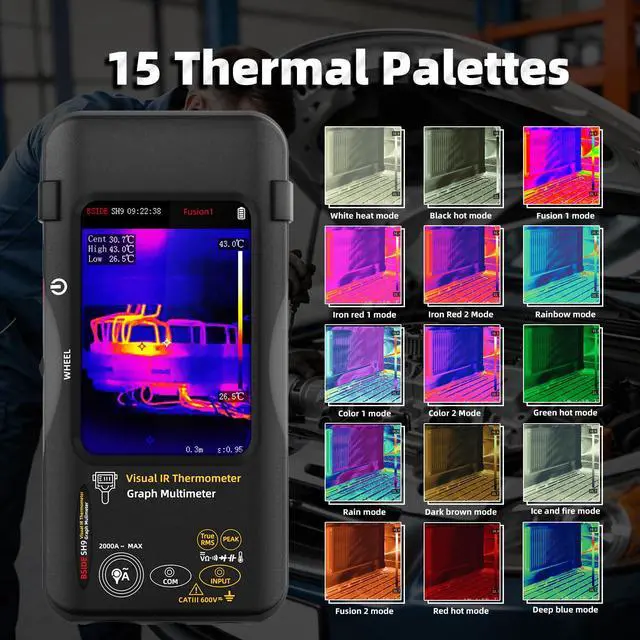

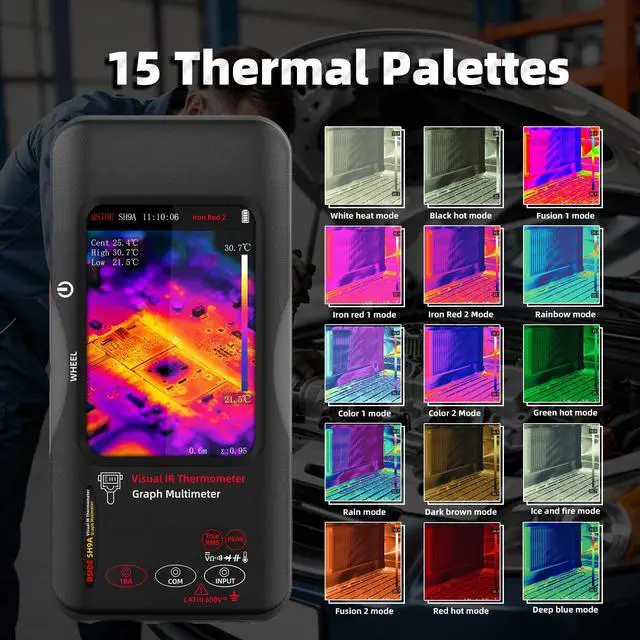

[15 Thermal Palettes]: Infrared multimeter has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.; [ 3.98

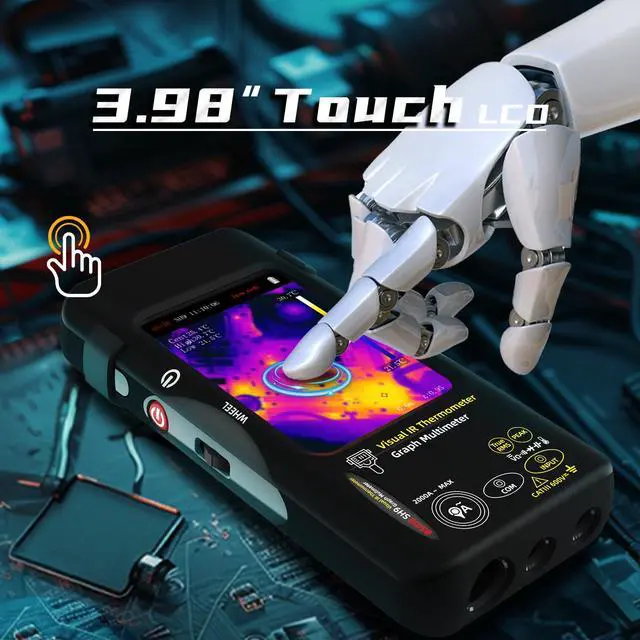

Touch TFT Screen]: IR multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.;
[Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20to 550(-4 to 1022).; [Flexible AC
Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.; [Efficient
Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 15, 000 images.
Infrared Camera]: Thermal imaging camera has 428 x 320 ir resolution, which could help you detect potential problems early and diagnose problems reliably.;
[Dual-Light Fusion]: Handheld thermal imager with dual-light fusion overlays regular and thermal images for enhanced visibility, making it ideal for professional inspections and industrial troubleshooting.;
[20000 Counts Multimeter]: BSIDE SH9 Infrared camera integrated multimeter, which measures flexible ac current clamp, capacitance, diode, temperature, ac and dc voltage, resistance, continuity, etc.;
[Recording Mode]: Smart digital multimeter can records the graph of tested data over time. Records up to 3 measurements.;
[with Macro Lens]: Thermal imager with macro lens allows you to spot potential design flaws, evaluate PCB hot spots, and inspect small electronic components, etc.
Working object distance: 35mm;
Magnification: 0.3X.;
[15 Thermal Palettes]: Infrared multimeter has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.; [ 3.98
Touch TFT Screen]: IR multimeter equipped with 3.98 inch 320 x 480 color touch lcd, which provides you with best reading enjoyment, you could get the clear test results at wide angle.;
[Accurate Measurement]: Thermal imager voltmeter enables a refresh rate of 25 Hz and a wide temperature range from -20to 550(-4 to 1022).; [Flexible AC
Current Clamp Measurement]: Digital multimeter tester measures flexible ac current clamp accurately up to 2000A. The flexible clamp wire were not included.; [Efficient
Data Storage and Export]: Thermal imaging camera can be connected to computer via USB for further analysis. The memory card can hold more than 15, 000 images.
