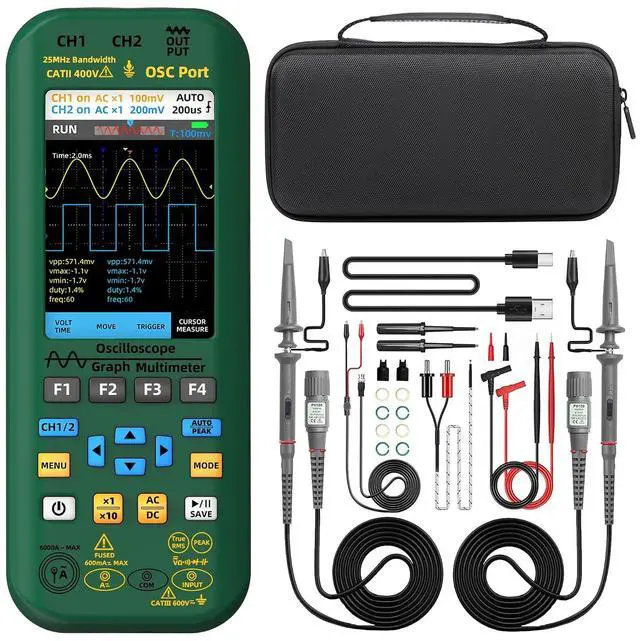

BSIDE Handheld Digital Oscilloscope Multimeter 2 Channels 50MHz Bandwidth Scope Tester, 3.98" TFT LCD DDS Generator with 2 Probes, Measure Flexible AC Current Clamp, Temp Capacitance Diode Amp Voltage

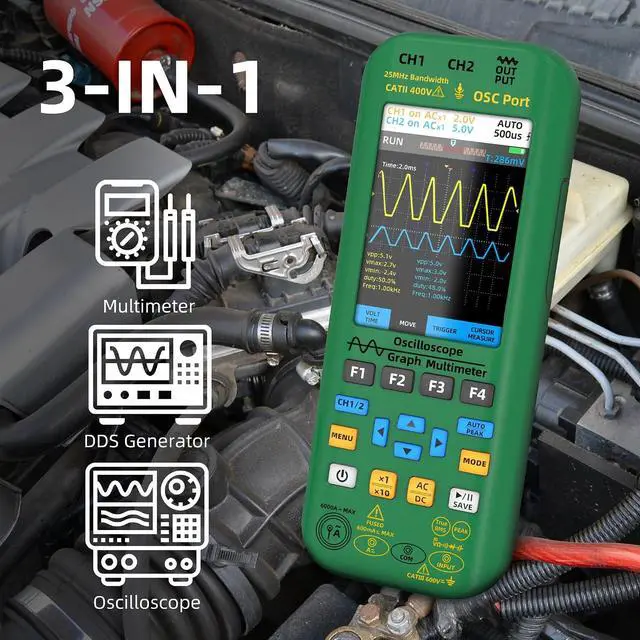

- Features: 3-in-1 handheld oscilloscope Portable oscilloscope multimeter Dual channel 50MHz bandwidth scope tester Measures ac and dc current, capacitance and diode Measures ac and dc voltage, resistance, a-alert and continuity Measures flexible ac current clamp, temperature and live wire check Tested data can be saved and exported to your computer Rechargeable intelligent digital voltmeter with low battery indication Specifications: MAX Display: 6000 counts Bandwidth: 50MHz Channels: 2 Real-time sample rate: 208MSa/s Input Impedance: 1M,@16pf Maximum input voltage: 300V (DC+AC peak) Horizontal SEC range: 100ns/div -20s/div Vertical sensitivity: 20mV/div -100V/div DC voltage: 60mV 0.01mV (1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ (0.8%+3); 600V/1000V 0.1V (1%+5) AC voltage: 60mV 0.01mV (1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ (1%+3); 600V/750V 0.1V/1V (1.2%+5) DC current: 60mA/600mA 0.01mA/0.1mA (1%+3) AC current: 60mA/600mA 0.01mA/0.1mA (1.2%+5) Flexible AC Current: 600A/6000A 0.1A/1A (1.0%+5) Resistance: 600 0.1 (1.2%+5); 6k/60K/600K 0.001K/0.01K/0.1K (1.0%+3); 6M 0.001M (1.2%+5); 60M 0.01M (1.5%+5) Capacitance: 999.9nF 0.1nF (5%+20); 9.999µF/999.9µF 0.001µF/0.1µF (4.5%+5); 99.99mF 0.01mF (5.0%+10) Temperature: -201000/-4-1832 1/1 (2.5%+5) Diode: Yes Continuity: Yes Output Waveforms: sine wave, square wave, triangle wave, full wave, half wave, sawtooth wave, dc wave Frequency range: 0-2MHz Output Amplitude: 0.1-3V Square Wave Duty Cycle: 1%-99% Power: 2* R
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

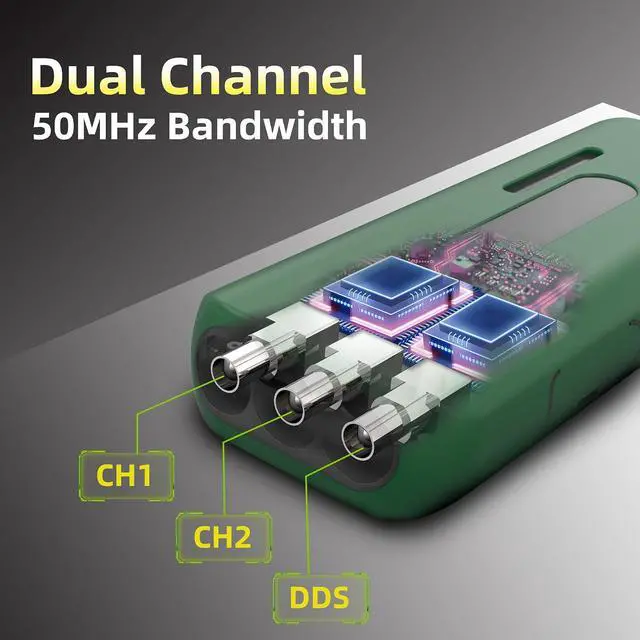

[Dual Channels 50MHz
Bandwidth]: 2 channels oscilloscope features 50MHz bandwidth and 208MSa/s sampling rate, 128kb record depth.;
[Full-Viewing Screen]: Handheld oscilloscope multimeter equipped with ultra-wide angle 480*320 screen, which provides you with best reading enjoyment, you could get the clear test results at wide angle.; [ 3.98
TFT Screen]: Digital oscilloscope multimeter features ultra-large 3.98 inch color display screen, which greatly enhance your reading experience, you can get the measurement very easy, even in bright sunlight or poor light.; [Flexible AC
Current Clamp Measurement]: Portable digital multimeter measures flexible ac current clamp accurately up to 6000A. The flexible clamp wire were not included.;
[5000mAh Rechargeable Battery]: BSIDE O7 oscilloscope multimeter comes with rechargeable 5000mAh rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.; [Soft
Silicone Protective Case]: Smart digital multimeter equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.;
[NOTICE]: The bandwidth of the oscilloscope is 50MHz, but the logo on it and the user manual of it is 25MHz, we will update them next generation, sorry for the inconvenience.
Bandwidth]: 2 channels oscilloscope features 50MHz bandwidth and 208MSa/s sampling rate, 128kb record depth.;
[Full-Viewing Screen]: Handheld oscilloscope multimeter equipped with ultra-wide angle 480*320 screen, which provides you with best reading enjoyment, you could get the clear test results at wide angle.; [ 3.98
TFT Screen]: Digital oscilloscope multimeter features ultra-large 3.98 inch color display screen, which greatly enhance your reading experience, you can get the measurement very easy, even in bright sunlight or poor light.; [Flexible AC
Current Clamp Measurement]: Portable digital multimeter measures flexible ac current clamp accurately up to 6000A. The flexible clamp wire were not included.;
[5000mAh Rechargeable Battery]: BSIDE O7 oscilloscope multimeter comes with rechargeable 5000mAh rechargeable battery, ensuring that you never have to worry about running out of power during your measurements.; [Soft
Silicone Protective Case]: Smart digital multimeter equipped with full-body soft silicone case that provides a comfortable feel and protection against shocks, friction & bumps.;
[NOTICE]: The bandwidth of the oscilloscope is 50MHz, but the logo on it and the user manual of it is 25MHz, we will update them next generation, sorry for the inconvenience.
