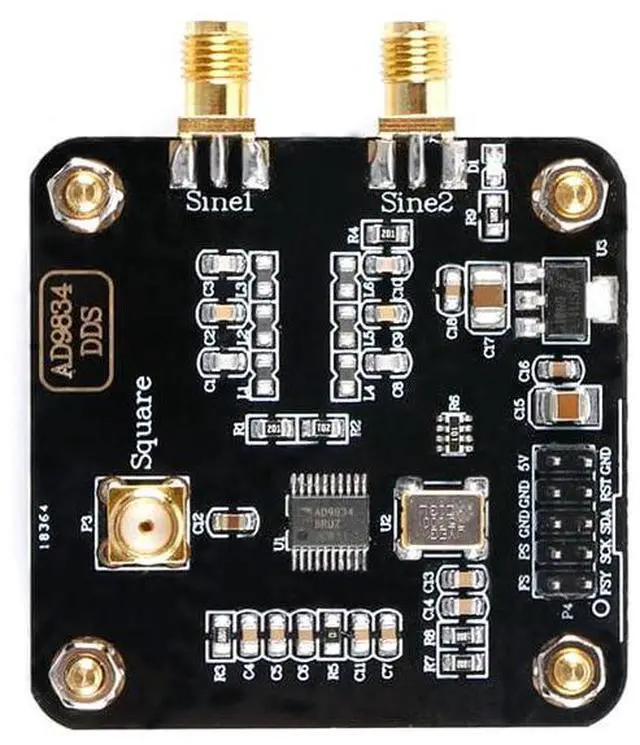

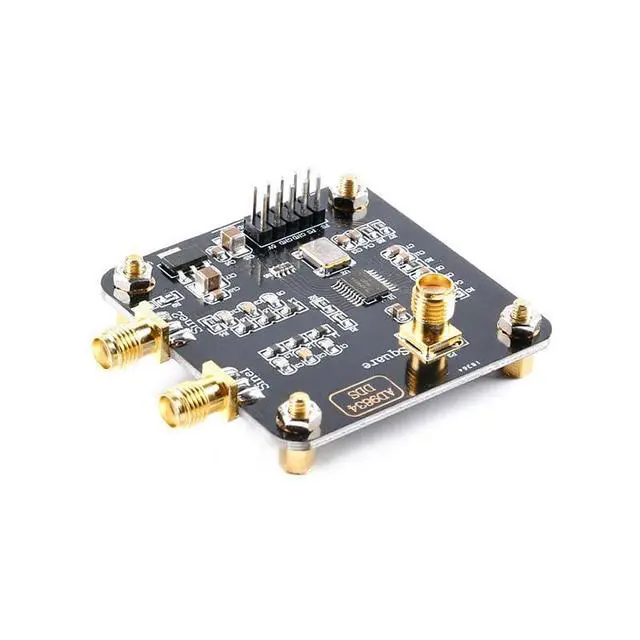

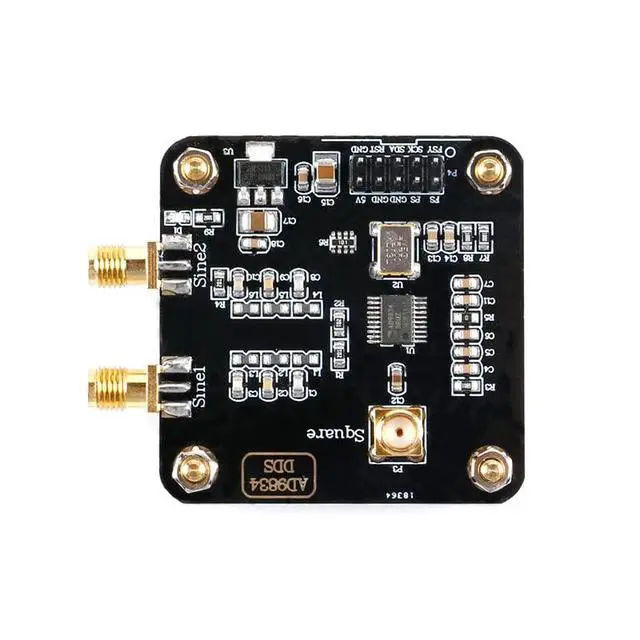

AD9834 DDS High-Speed Signal Generator Module Sine Wave Triangular Wave Signal Generator DDS Sweep Source DC-5V 75MHz
- AD9834 is a 75MHZ, low-power DDS device that can generate high-performance sine wave and triangular wave outputs.; The product also integrates a comparator inside the chip, which supports generating square waves for clock generation. When the power supply voltage is 3V, its power consumption is only 20mW, making it very suitable for applications with strict power consumption requirements.; AD9834 provides phase modulation and frequency modulation functions. The frequency register is 28 bits; The clock speed is 75MH, which can achieve a resolution of 0.28HZ.; AD9834 provides phase modulation and frequency modulation functions. The frequency register is 28 bits; The clock speed is 75MH, which can achieve a resolution of 0.28HZ. Similarly, AD9834 can achieve a resolution of 0.004H at a clock rate of 1MH.; The method of affecting frequency and phase modulation is to load registers through a serial interface
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description We delivering products that are designed to elevate your projects to the next level. Whether you are a hardware engineer, hobbyist, student, or professional. Our development boards and components are here to help. Welcome to JESSINIE, for development boards and electronic components. At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets to meet your project needs. At JESSINIE, We focus on the importance of reliable and efficient products, we prioritize quality and performance in everything we offer.
Choose JESSINIE for your development board and electronic components needs. Thank you for choosing JESSINIE.
Module parameters Module model: AD9834
Module type: digital synthesis frequency source
Module power supply: DC-5V
Module current: 20mA (MAX); Normal driving current 15mA (TYP)
Module communication protocol: SPI serial
Module provides routine: STM32F103RC
Routine platform: STM32F103X - KEIL5 version source code
System module main frequency: 75MHz (MAX)
DAC resolution bits: 10 bits
Phase accumulation number: 28 bits
Module output interface: SMA 24-hour salt spray oxidation resistance
Module output signals: sine wave, square wave, triangular wave. Sine wave band 30MHz low-pass filter. Square wave coupling output. Square and triangular waves cannot be output simultaneously.
Module output channel: 2-channel differential. The phase difference is 180 degrees, and the high-freque...
