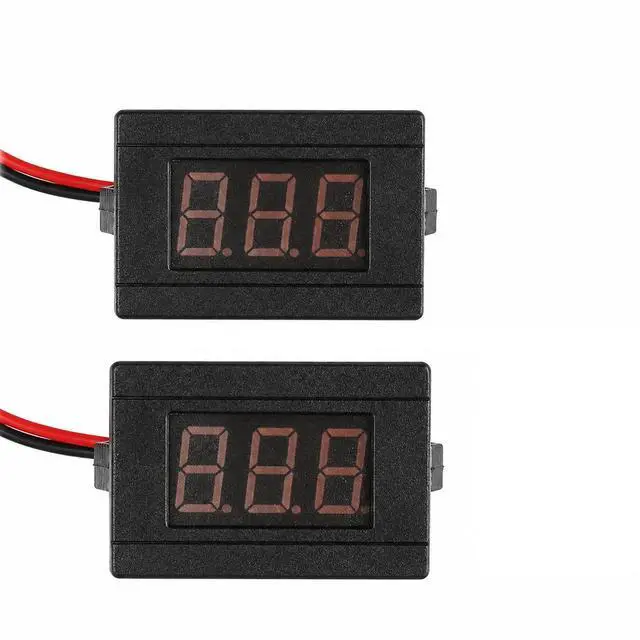

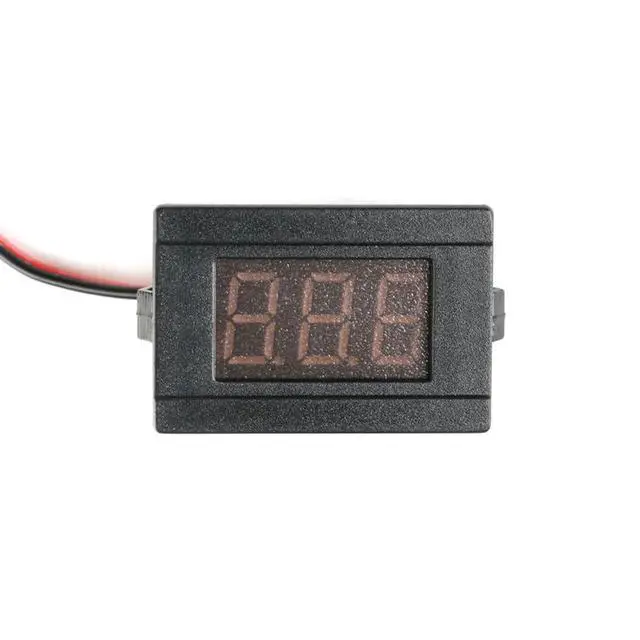

2Pcs 0.36" DC Voltmeter Module, 4.5-120V 2-Wire LED Digital Voltage Meter
- Wide Measurement Range: This 0.36-inch DC digital voltmeter supports voltage measurement from DC 4.5V to 120V, making it suitable for battery packs, electric vehicles, DC power supplies, solar systems, chargers, control cabinets, and DIY electronics projects.; Simple Two-Wire Connection: Designed with a two-wire system, this voltage meter requires no separate power supply. Simply connect it in parallel to the DC circuit under test, and it will power on and display the measured voltage directly.; Clear 0.36-Inch Red LED Display: The three-digit 0.36-inch red LED display provides bright and easy-to-read voltage values, ideal for panel mounting, equipment enclosures, control boxes, regulated power supplies, and compact electronic devices.; Fast Refresh for Real-Time Monitoring: With an update rate of approximately 200 ms per cycle, or about 23 readings per second, this DC voltmeter helps display voltage changes promptly for real-time power supply.; Compact Panel Mount Design: The module measures approximately 34 x 23 x 17 mm, with a cutout size of about 31 x 19 mm and 15 cm leads. Built-in reverse polarity protection helps reduce the risk of damage from incorrect wiring.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
0.36 Inch DC 4.5V -120V Digital Voltmeter, Two-Wire LED Panel Voltage Meter Module, Red Display DC Voltage Tester for Battery Pack, Power Supply, Charger, Electric Vehicle and DIY Electronics
Product
Measurement Range: DC 4.5V 120V Lower
Input Voltage Limit: DC 4.5V Upper
Input Voltage Limit: DC 120V
Above 120V: Risk of burnout
Measurement Type: DC voltage
Display Type: Three-digit 0.36 -inch LED display
Display Color: Red
Wiring Method: Two-wire system
Power Supply: No separate power source required; powered by the measured voltage
Refresh Rate: Approx. 200 ms per update, about 23 updates per second
Permissible Error: Approx. 1%, ±1 digit
Display Resolution: 0.1V / 1V, automatically displayed based on measurement range
Current Consumption: Approx. 525 mA Reverse
Polarity Protection: Yes
Operating Temperature: -10°C to +65°C
Module Dimensions: Approx. 34 × 23 × 17 mm
Cutout Dimensions: Approx. 31 × 19 mm
Lead Length: Approx.
15 cm Installation Type: Embedded / panel mount
Product
Specifications
Product Name: 0.36 -inch DC Digital VoltmeterMeasurement Range: DC 4.5V 120V Lower
Input Voltage Limit: DC 4.5V Upper
Input Voltage Limit: DC 120V
Above 120V: Risk of burnout
Measurement Type: DC voltage
Display Type: Three-digit 0.36 -inch LED display
Display Color: Red
Wiring Method: Two-wire system
Power Supply: No separate power source required; powered by the measured voltage
Refresh Rate: Approx. 200 ms per update, about 23 updates per second
Permissible Error: Approx. 1%, ±1 digit
Display Resolution: 0.1V / 1V, automatically displayed based on measurement range
Current Consumption: Approx. 525 mA Reverse
Polarity Protection: Yes
Operating Temperature: -10°C to +65°C
Module Dimensions: Approx. 34 × 23 × 17 mm
Cutout Dimensions: Approx. 31 × 19 mm
Lead Length: Approx.
15 cm Installation Type: Embedded / panel mount
