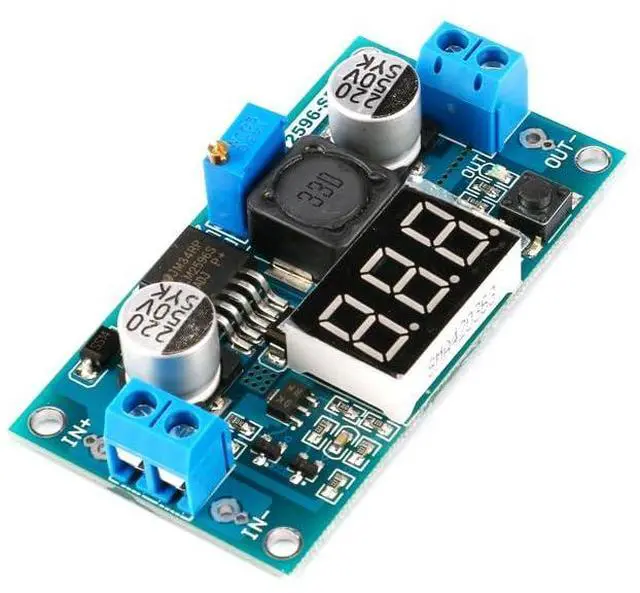

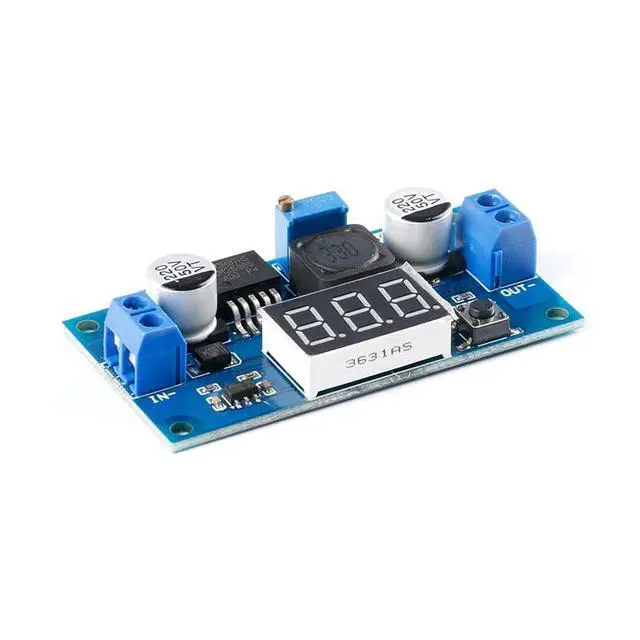

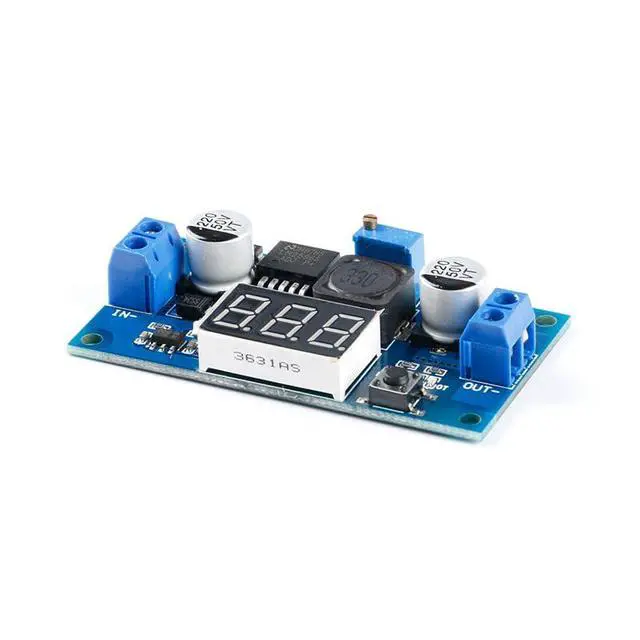

2Pcs LM2596 Adjustable DC-DC Buck Converter Module with Voltage Meter
- Adjustable LM2596 DC-DC Buck Module: This regulated power supply module uses the LM2596 step-down design to convert a higher DC input voltage into a lower adjustable output voltage. It is suitable for DIY power supplies, electronics testing, LED projects, device repair, and prototype circuits.; Wide Input and Output Voltage Range: The module supports a 4.0V to 40V DC input and provides an adjustable 1.25V to 37V output. The input voltage must be at least 1V higher than the desired output voltage for proper step-down regulation.; Built-In Digital Voltage Display: An onboard voltage meter allows you to monitor the operating voltage directly without an external multimeter. The tactile button can switch the display between input voltage and output voltage, making adjustment and troubleshooting more convenient.; Voltage Meter Calibration and Display Control: The digital voltmeter has a 040V measurement range with approximately ±0.1V error and supports calibration for improved display accuracy. The voltage display can also be turned off when not needed. Please note that the onboard meter will not function when the input voltage is below 4V.; 3A Max Output with Compact Layout: The module supports up to 3A maximum output current, with 2A recommended for stable normal operation. It features an internal 150kHz oscillation frequency and a compact 66.04 × 35.05mm board size, making it easy to integrate into DIY power boxes, test benches, and small electronic devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
DC-DC Adjustable Regulated Power Supply Module LM2596 Buck Converter with Digital Voltmeter, Upgraded Version with Calibration
Product
Voltage Meter Module Type: DC-DC adjustable buck / step-down converter
Regulator Chip: LM2596
Input Voltage Range: 4.0V 40V DC
Output Voltage Range: 1.25V 37V DC
Maximum Output Current: 3A max
Recommended Stable Working Current: 2A Voltmeter
Display Range: 040V
Voltmeter Accuracy: ± 0.1V
Voltmeter Function: Input / output voltage display switching
Display Note: When the input voltage is below 4V, the onboard voltmeter will not function or display a reading
Oscillation Frequency: Internal 150kHz
Product Dimensions: Approx. 66.04 mm × 35.05 mm
Control Method: Tactile buttons and adjustable potentiometer

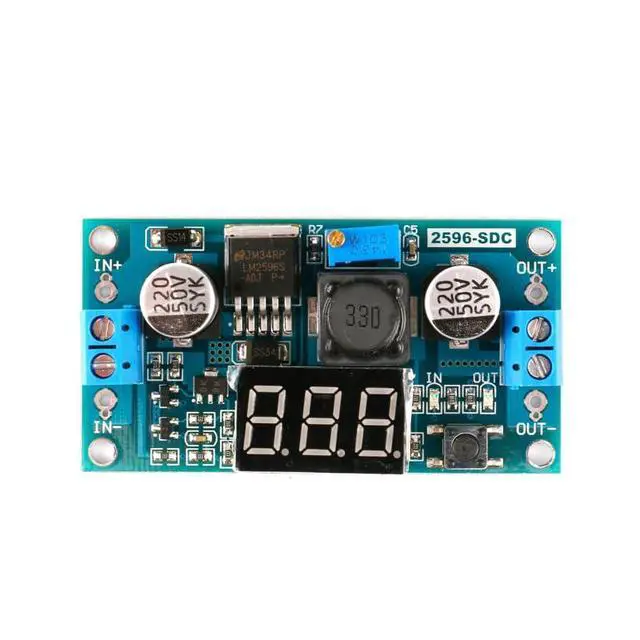

Pin Definitions IN+: Input positive terminal
IN-: Input negative terminal
OUT+: Output positive terminal
OUT-: Output negative terminal Application Scenarios This LM2596 adjustable power supply module with digital voltmeter is suitable for a variety of DC voltage conversion and testing applications, including: DIY adjustable power supply projects; Electronic circuit testing and debugging; Battery pack voltage conversion; LED strip and LED module power supply; Motor, relay, and control board power supply.
Product
Specifications
Product Name: LM2596 Adjustable Regulated Power Supply Module withVoltage Meter Module Type: DC-DC adjustable buck / step-down converter
Regulator Chip: LM2596
Input Voltage Range: 4.0V 40V DC
Output Voltage Range: 1.25V 37V DC
Maximum Output Current: 3A max
Recommended Stable Working Current: 2A Voltmeter
Display Range: 040V
Voltmeter Accuracy: ± 0.1V
Voltmeter Function: Input / output voltage display switching
Display Note: When the input voltage is below 4V, the onboard voltmeter will not function or display a reading
Oscillation Frequency: Internal 150kHz
Product Dimensions: Approx. 66.04 mm × 35.05 mm
Control Method: Tactile buttons and adjustable potentiometer
Pin Definitions IN+: Input positive terminal
IN-: Input negative terminal
OUT+: Output positive terminal
OUT-: Output negative terminal Application Scenarios This LM2596 adjustable power supply module with digital voltmeter is suitable for a variety of DC voltage conversion and testing applications, including: DIY adjustable power supply projects; Electronic circuit testing and debugging; Battery pack voltage conversion; LED strip and LED module power supply; Motor, relay, and control board power supply.
