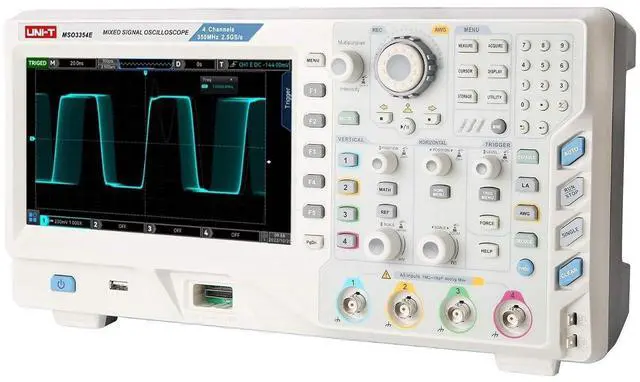

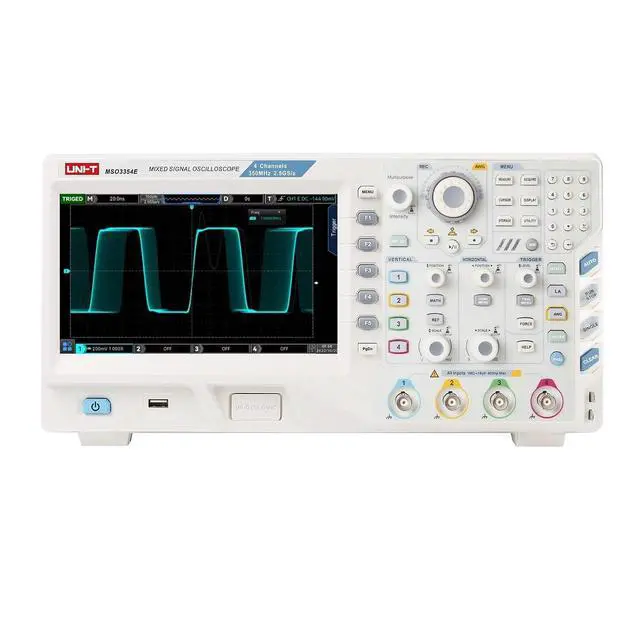

UNI-T MSO3354E 350MHz 4+16Ch MSO Mixed Signal Digital Oscilloscope

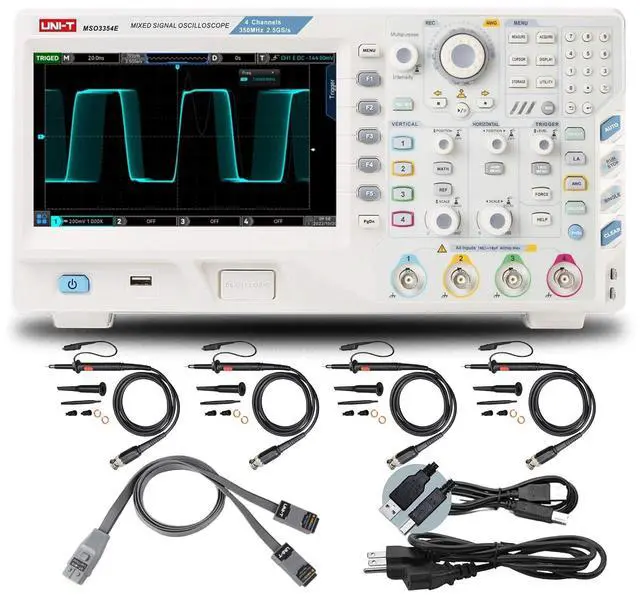

- Specifications: 350 MHz, 4+16 CH, digital logic probe, 2.5 GSa/s, memory depth: 250 Mpts, 200,000 wfm/s, 8 inch display; oscilloscope probe (UT-P08A)x4, logic probe (UT-M15), power cord, USB 2.0 printing cable, English download guide, multi-language safety manual, and calibration report (COC); Embedded with Web Server, you can remotely control the instrument, observe waveforms, and obtain measurement results through a browser, which can meet the application requirements of special environments such as high pressure and high temperature; Provides 2 8-channel splitters and simplifies connection to the device under test; when connecting with square pins, UT-M15 can be directly connected with 8X2 square pin headers with pins of 2.54 mm; The built-in dual-channel function arbitrary waveform generator can output sine wave, square wave, ramp wave, pulse wave, arbitrary wave, noise and DC; the maximum frequency output of sine wave is 50 MHz; The full-memory hardware decoding under the deep storage of 250Mpts; XY mode cursor measurement can quickly measure the phase difference between two signals; automatic parameter measurement up to 36 kinds
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Experience Excellence in Measurement with the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO) MSO3354E Oscilloscope LA Logic Analyzer The UNI-T MSO3354E Mixed Signal Oscilloscope (MSO) is your gateway to multifunctionality, high performance, and unmatched value, all powered by UNI-T's cutting-edge Ultra Phosphor technology. Designed with engineers in mind, this oscilloscope seamlessly combines ease of use, exceptional technical indicators, and a wide array of functional features, enabling you to complete your measurement tasks efficiently. Whether you're working in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, or R & D / education, the MSO3354E is your ideal companion.
UNI-T MSO3354E Mixed Signal Oscilloscope
Top
Bandwidth: 350MHz
Analog Channels: 4
Digital Channels: 16 (UT-M15 Logic probe included)
Real-Time Sample Rate: 2.5GS a/s Max.
Memory depth: 250Mpts MSO3354E Oscilloscope Maximum Memory Depth Waveform Capture Rate: 200, 000wfms/s
Display: 8in Multi-point Capacitive Touchscreen Key Features and Benefits of the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO): Impressive 350MHz
Bandwidth: When assessing an oscilloscope, like the UNI-T MSO3354E Mixed Signal Oscilloscope, the bandwidth is a critical consideration. This oscilloscope boasts a substantial 350MHz bandwidth, ensuring you're equipped to tackle a wide range of devices and circuits. Adhering to the industry-standard "Rule of Five, " this oscilloscope provides five times the bandwidth needed for your fastest signals, making it suitable for applications up to 70MHz and below.
4 Analog Input Channels: With its four analog input channels, the UNI
UNI-T MSO3354E Mixed Signal Oscilloscope
Top
Specifications
:Bandwidth: 350MHz
Analog Channels: 4
Digital Channels: 16 (UT-M15 Logic probe included)
Real-Time Sample Rate: 2.5GS a/s Max.
Memory depth: 250Mpts MSO3354E Oscilloscope Maximum Memory Depth Waveform Capture Rate: 200, 000wfms/s
Display: 8in Multi-point Capacitive Touchscreen Key Features and Benefits of the UNI-T MSO3354E Mixed Signal Oscilloscope (MSO): Impressive 350MHz
Bandwidth: When assessing an oscilloscope, like the UNI-T MSO3354E Mixed Signal Oscilloscope, the bandwidth is a critical consideration. This oscilloscope boasts a substantial 350MHz bandwidth, ensuring you're equipped to tackle a wide range of devices and circuits. Adhering to the industry-standard "Rule of Five, " this oscilloscope provides five times the bandwidth needed for your fastest signals, making it suitable for applications up to 70MHz and below.
4 Analog Input Channels: With its four analog input channels, the UNI
