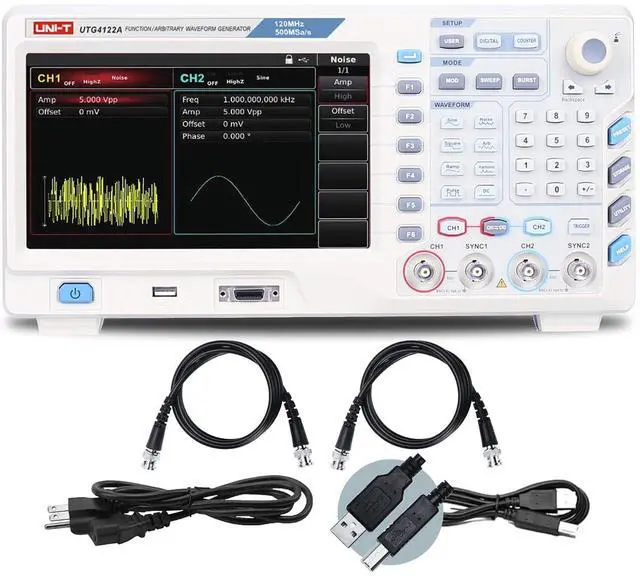

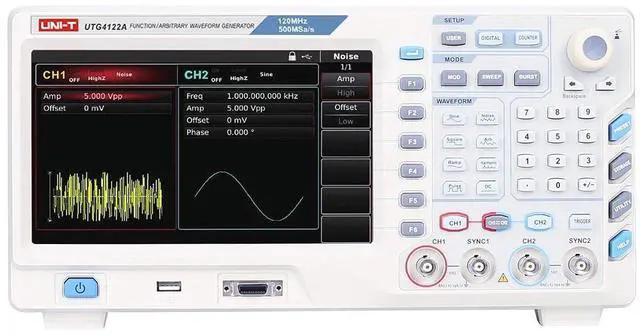

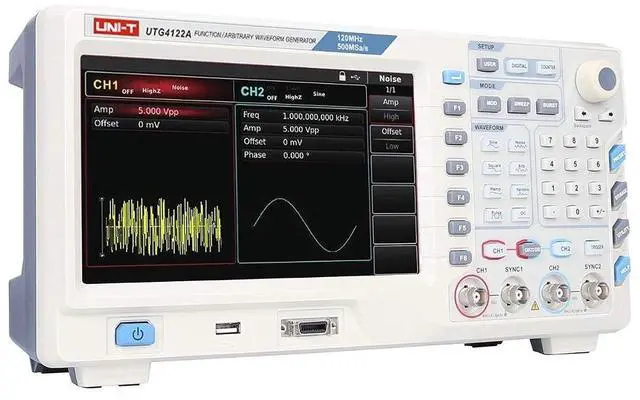

UNI-T UTG4122A 120MHz 2Ch Peformance-Series Arbitrary Waveform Generator

Product description UTG4000A Series waveform generators Rich modulation functions Rich analog and digital modulation types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM UTG4000A Series waveform generators Main Description The UNI-T UTG4000A Series waveform generators are applied to a wide range of application domain, integrating multiple waveforms for Function Generation, Arbitrary Waveform Generation, Pulse Generation, Harmonic Generation, Analog/Digital Modulation source. The UTG4000A Series is a waveform generator with high sampling rate up to 500MS/s, MAX waveform length up to 32Mpt. To generate stable, precise, low distortion signals Harmonic output function Up to 16 harmonic output function, with specified order, amplitude and phase of harmonics, the order of harmonics can be set. Built-in arbitrary waveform available at any time Built-in up to 160 arbitrary waveforms, 32Mpts arbitrary waveform memory, 7GB non-volatile waveform storage Sweep function Support scanning output from low frequency to high frequency or from high frequency to low frequency. scanning types include linear and logarithmic. Unique digital interface
Optional digital signal output interface: SPI, IIC, UART UTG4082A UTG4122A Add to Cart Add to Cart Add to Cart Price $ 661.50 $661. 50 $ 843.50 $843. 50 $ 948.50 $948. 50 MAX. OUTPUT FREQUENCY 80 MHz 120 MHz 160 MHz SAMPLE RATE 500 MSa/s 500 MSa/s 500 MSa/s VERTICAL RESOLUTION 16-bit 16-bit 16-bit CHANNELS 2 2 2 ARBITRARY WAVE LENGTH 32 Mpts 32 Mpts 32 Mpts DISPLAY 8 inch TFT LCD 8 inch TFT LCD 8 inch TFT LCD
