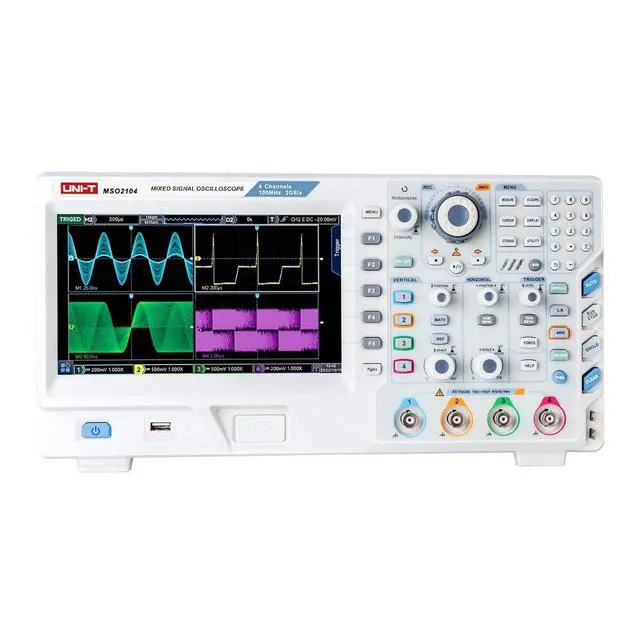

UNI-T MSO2104 100MHz 4+16Ch MSO Digital Oscilloscope

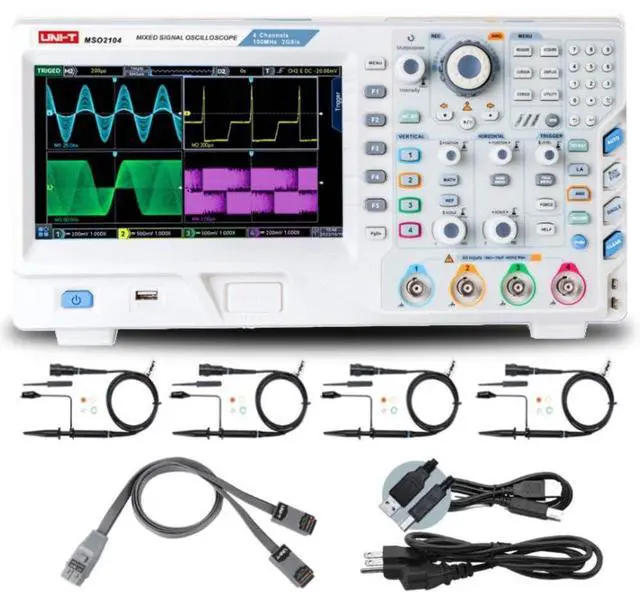

- Specifications: 100 MHz, 4+16 CH, digital logic probe, 2 GSa/s, memory depth: 56 Mpts, 1,000,000wfms/s, 8 inch touch screen; oscilloscope probe (UT-P04)x4, logic probe (UT-M15), power cord, USB 2.0 printing cable, English download guide, multi-language safety manual, and calibration report (COC); Features 4 Mpts enhanced FFT: supports full screen, split screen, waterfall chart and multiple detections; 256-level grayscale display; can be used for parallel bus, protocol decoding and timing measurements; Provides 2 8-channel splitters and simplifies connection to the device under test; when connecting with square pins, UT-M15 can be directly connected with 8X2 square pin headers with pins of 2.54 mm; The area trigger can be used in combination with the existing basic trigger, advanced trigger and protocol trigger to complete the capture of various occasional and complex characteristic signals; can be used for loop analysis; The decoding speed is improved; the full-memory hardware decoding under the deep storage of 56 Mpts; the decoding time is increased from more than 10 seconds to milliseconds; memory depth 56 Mpts per channel
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Unleash the Power of Precision with the UNI-T MSO2104 Mixed Signal Oscilloscope (MSO) MSO2104 Oscilloscope Full memory hardware decoding Experience the pinnacle of measurement and analysis with the UNI-T MSO2104 Mixed Signal Oscilloscope (MSO). Built on UNI-T's original Ultra Phosphor technology, this multifunctional, high-performance oscilloscope combines ease of use with exceptional technical prowess and an array of functional features. Whether you're involved in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, or education, the MSO2104 is your go-to tool. UNI-T MSO2104 Mixed Signal Oscilloscope
Key
BANDWIDTH: 100MHz
ANALOG CHANNELS: 4
DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)
REAL-TIME SAMPLE RATE: 2GSa/s MAX.
MEMORY DEPTH: 56Mpts
WAVEFORM CAPTURE RATE: 1, 000, 000wfms/s MSO2104 Oscilloscope 4M pts enhanced
FFT DISPLAY: 8in Multi-point Capacitive
Touchscreen Versatile Performance: Seamlessly tackle design, debugging, and testing tasks in various fields, making your measurement work faster and more efficiently.
Enhanced Channel Capacity: With four analog channels and 16 digital channels (including the UT-M15 Logic probe), you have the flexibility to measure multiple signals simultaneously. This is invaluable for debugging circuits, monitoring serial protocols, and analyzing video signals.

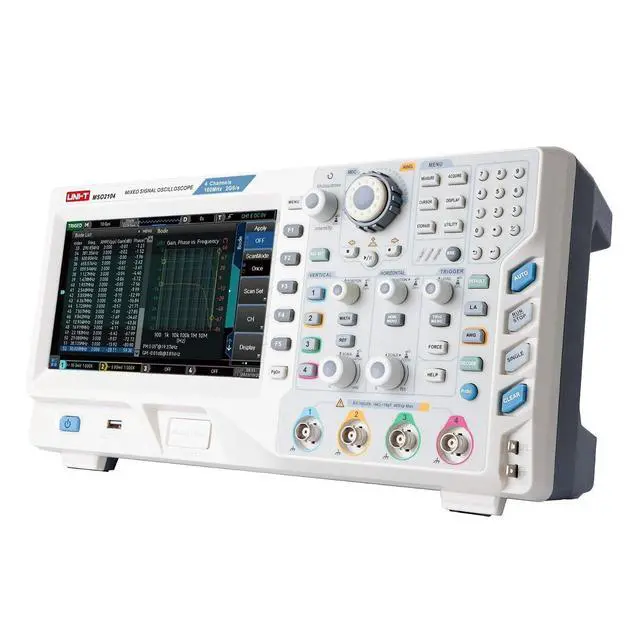

Built-in AWG: The MSO2104 features a dual-channel function arbitrary waveform generator that outputs sine waves, square waves, ramp waves, pulse waves, arbitrary waves, noise, and DC signals, with a maximum sine wave frequency output of 50MHz. Bode Plot Ana
Key
Specifications
:BANDWIDTH: 100MHz
ANALOG CHANNELS: 4
DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)
REAL-TIME SAMPLE RATE: 2GSa/s MAX.
MEMORY DEPTH: 56Mpts
WAVEFORM CAPTURE RATE: 1, 000, 000wfms/s MSO2104 Oscilloscope 4M pts enhanced
FFT DISPLAY: 8in Multi-point Capacitive
Touchscreen Versatile Performance: Seamlessly tackle design, debugging, and testing tasks in various fields, making your measurement work faster and more efficiently.
Enhanced Channel Capacity: With four analog channels and 16 digital channels (including the UT-M15 Logic probe), you have the flexibility to measure multiple signals simultaneously. This is invaluable for debugging circuits, monitoring serial protocols, and analyzing video signals.
Built-in AWG: The MSO2104 features a dual-channel function arbitrary waveform generator that outputs sine waves, square waves, ramp waves, pulse waves, arbitrary waves, noise, and DC signals, with a maximum sine wave frequency output of 50MHz. Bode Plot Ana
