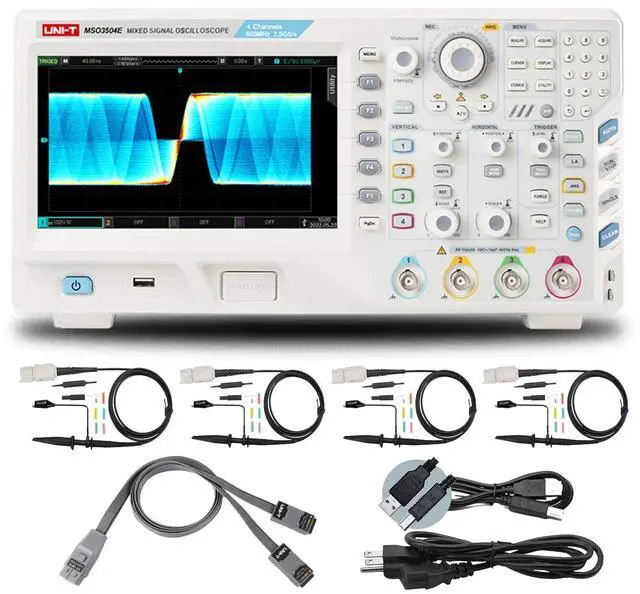

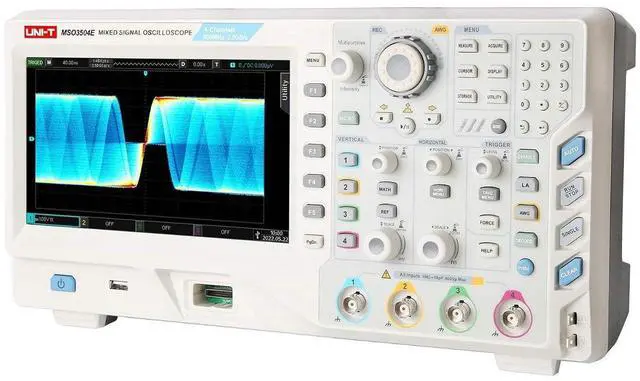

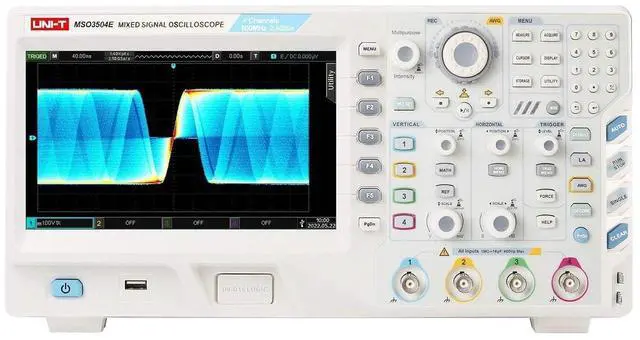

UNI-T MSO3504E Digital Phosphor Oscilloscope with 4 Channels (Analogue), 16 Channels (Digital), 2.5GSa/s Real-time Sample Rate 250Mpts, 500MHz Bandwidth
- Specifications: 500 MHz, 4+16 CH, digital logic probe, 2.5 GSa/s, memory depth: 250 Mpts, 200,000 wfm/s, 8 inch display; oscilloscope probe (UT-P07A)x4, logic probe (UT-M15), power cord, USB 2.0 printing cable, English download guide, multi-language safety manual, and calibration report (COC); Embedded with Web Server, you can remotely control the instrument, observe waveforms, and obtain measurement results through a browser, which can meet the application requirements of special environments such as high pressure and high temperature; Provides 2 8-channel splitters and simplifies connection to the device under test; when connecting with square pins, UT-M15 can be directly connected with 8X2 square pin headers with pins of 2.54 mm; The built-in dual-channel function arbitrary waveform generator can output sine wave, square wave, ramp wave, pulse wave, arbitrary wave, noise and DC; the maximum frequency output of sine wave is 50 MHz; The full-memory hardware decoding under the deep storage of 250Mpts. XY mode cursor measurement can quickly measure the phase difference between two signals. Automatic parameter measurement up to 36 kinds.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Elevate Your Measurements with the UNI-T MSO3504E Mixed Signal Oscilloscope (MSO) MSO3504E Oscilloscope Area Trigger The UNI-T MSO3504E Mixed Signal Oscilloscope (MSO) is the pinnacle of versatility and performance, equipped with four analog input channels for an expanded range of measurement applications. Built on UNI-T's original Ultra Phosphor technology, it combines user-friendliness, exceptional technical specifications, and an array of functional features to streamline your measurement tasks. Whether you work in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, R&D, or education, this oscilloscope is tailored to your needs.
Its Fast Acquire technology excels at capturing elusive events such as video signals, jitter, noise, and low waveforms, ensuring precise measurements every time. UNI-T MSO3504E Mixed Signal Oscilloscope
Top
Bandwidth: 500MHz
Analog Channels: 4
Digital Channels: 16 (UT-M15 Logic probe included)
Real-Time Sample Rate: 2.5GS a/s Max.
Memory depth: 250Mpts MSO3504E Oscilloscope Brand New Interactive Experience Waveform Capture Rate: 200, 000wfms/s
Display: 8in Multi-point Capacitive Touchscreen Unleash the Power of Versatility 500MHz
Bandwidth: The UNI-T MSO3504E Mixed Signal Oscilloscope boasts a 500MHz bandwidth, a testament to its ability to handle high-frequency signals with ease. Adhering to the "Rule of Five, " this oscilloscope provides ample bandwidth for applications up to 100MHz and below.
Four Analog Input Channels: With four channels at your disposal, the UNI-T MSO3504E Mixed Signal Oscilloscope allows you to simultaneously meas
Its Fast Acquire technology excels at capturing elusive events such as video signals, jitter, noise, and low waveforms, ensuring precise measurements every time. UNI-T MSO3504E Mixed Signal Oscilloscope
Top
Specifications
:Bandwidth: 500MHz
Analog Channels: 4
Digital Channels: 16 (UT-M15 Logic probe included)
Real-Time Sample Rate: 2.5GS a/s Max.
Memory depth: 250Mpts MSO3504E Oscilloscope Brand New Interactive Experience Waveform Capture Rate: 200, 000wfms/s
Display: 8in Multi-point Capacitive Touchscreen Unleash the Power of Versatility 500MHz
Bandwidth: The UNI-T MSO3504E Mixed Signal Oscilloscope boasts a 500MHz bandwidth, a testament to its ability to handle high-frequency signals with ease. Adhering to the "Rule of Five, " this oscilloscope provides ample bandwidth for applications up to 100MHz and below.
Four Analog Input Channels: With four channels at your disposal, the UNI-T MSO3504E Mixed Signal Oscilloscope allows you to simultaneously meas
