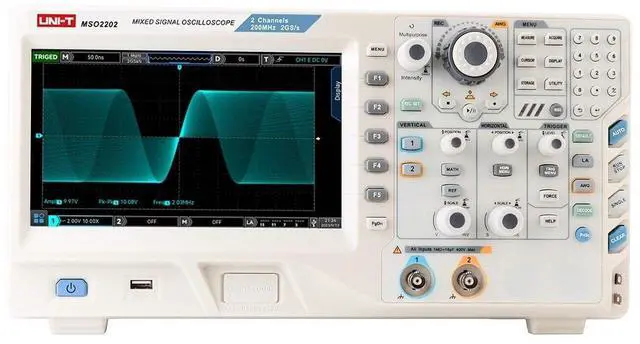

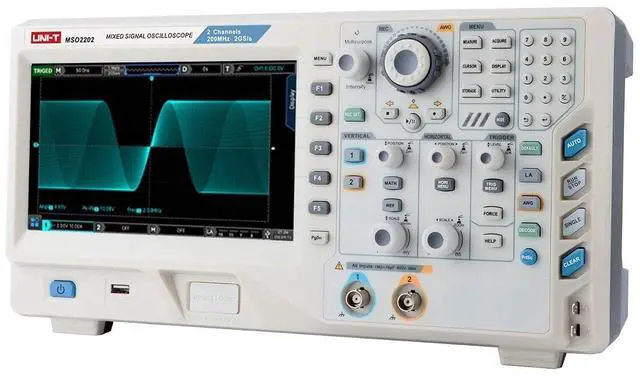

UNI-T MSO2202 200MHz 2+16Ch MSO Digital Oscilloscope

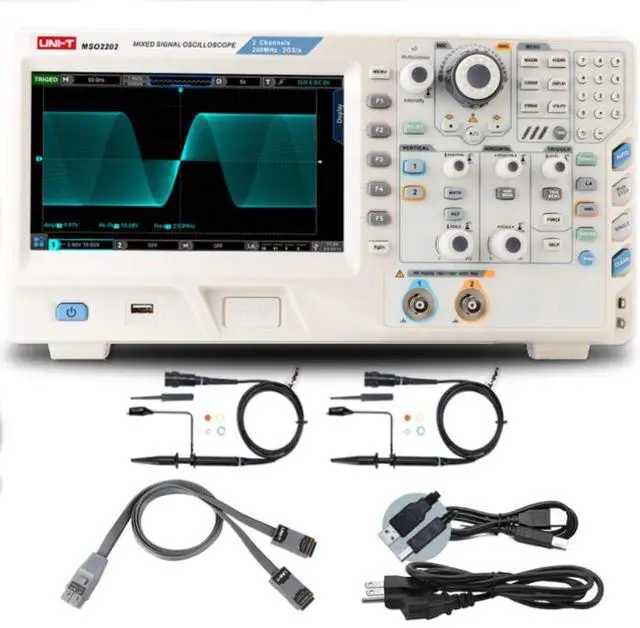

- 200 MHz, 2+16 CH, Digital Logic Probe Included, 2 GSa/s, Memory Depth: 56 Mpts, 1,000,000wfms/s, 8in touch screen. Accessories: Oscilloscope probe (UT-P05)*2, logic probe (UT-M15), Power cord, USB2.0 printing cable, English download guide, multi-language safety manual, calibration report (COC).; 4M pts enhanced FFT: supports full screen / split screen / waterfall chart and multiple detections. 256-level grayscale display. Can be used for parallel bus, protocol decoding and timing measurements.; Provides two 8-channel splitters and simplifies connection to the device under test. When connecting with square pins, UT-M15 can be directly connected with 8X2 square pin headers with pins of 2.54mm.; The area trigger can be used in combination with the existing basic trigger, advanced trigger and protocol trigger to complete the capture of various occasional and complex characteristic signals. Can be used for loop analysis.; The decoding speed is greatly improved. The full-memory hardware decoding under the deep storage of 56Mpts, the decoding time is increased from more than ten seconds to milliseconds. Memory depth 56Mpts per channel.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Discover Precision Measurement with the UNI-T MSO2202 Mixed Signal Oscilloscope (MSO) UNI-T MSO2202 Oscilloscope LA Logic Analyzer The UNI-T MSO2202 Mixed Signal Oscilloscope (MSO) is your gateway to multifunctional, high-performance measurement solutions, built on UNI-T's cutting-edge Ultra Phosphor technology. This versatile instrument seamlessly combines user-friendliness, exceptional technical prowess, and a wealth of features, accelerating your measurement tasks. Tailored for diverse applications in communication, semiconductor, computer, instrumentation, industrial electronics, consumer electronics, automotive electronics, on-site maintenance, and R&D/education, it empowers you to capture abnormal events like video signals, jitter, noise, and low waveforms with precision.
Equipped with two analog channels and 16 digital channels (including the UT-M15 Logic probe), the UNI-T MSO2202 Mixed Signal Oscilloscope ensures accurate measurements across various domains. UNI-T MSO2202 Mixed Signal Oscilloscope
Key
BANDWIDTH: 200MHz
ANALOG CHANNELS: 2
DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)
REAL-TIME SAMPLE RATE: 2GSa/s MAX.
MEMORY DEPTH: 56Mpts UNI-T MSO2202 Oscilloscope 4M pts enhanced
FFT WAVEFORM CAPTURE RATE: 1, 000, 000wfms/s
DISPLAY: 8in Multi-point Capacitive
Touchscreen Impressive Bandwidth: Boasting a 200MHz bandwidth, the UNI-T MSO2202 Mixed Signal Oscilloscope is primed for various applications. When considering an oscilloscope, remember the "Rule of Five" opt for a bandwidth at least five times greater than the fastest signal you intend to measure. For the MSO2202, we recommend applications at 40MHz and below.
Enhanced FFT Analysis: With support for full screen/split screen/waterfall chart and multiple d
Equipped with two analog channels and 16 digital channels (including the UT-M15 Logic probe), the UNI-T MSO2202 Mixed Signal Oscilloscope ensures accurate measurements across various domains. UNI-T MSO2202 Mixed Signal Oscilloscope
Key
Specifications
:BANDWIDTH: 200MHz
ANALOG CHANNELS: 2
DIGITAL CHANNELS: 16 (UT-M15 Logic probe included)
REAL-TIME SAMPLE RATE: 2GSa/s MAX.
MEMORY DEPTH: 56Mpts UNI-T MSO2202 Oscilloscope 4M pts enhanced
FFT WAVEFORM CAPTURE RATE: 1, 000, 000wfms/s
DISPLAY: 8in Multi-point Capacitive
Touchscreen Impressive Bandwidth: Boasting a 200MHz bandwidth, the UNI-T MSO2202 Mixed Signal Oscilloscope is primed for various applications. When considering an oscilloscope, remember the "Rule of Five" opt for a bandwidth at least five times greater than the fastest signal you intend to measure. For the MSO2202, we recommend applications at 40MHz and below.
Enhanced FFT Analysis: With support for full screen/split screen/waterfall chart and multiple d
