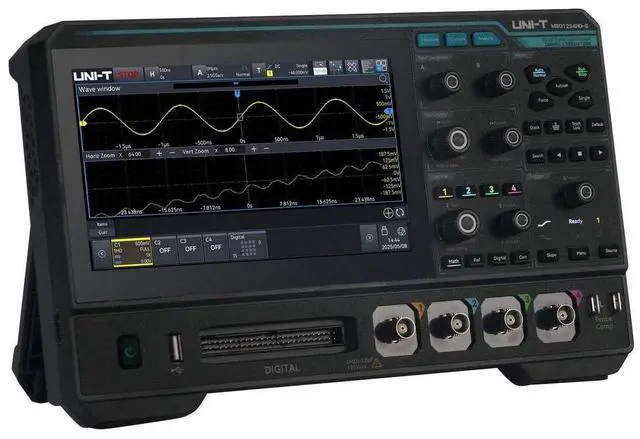

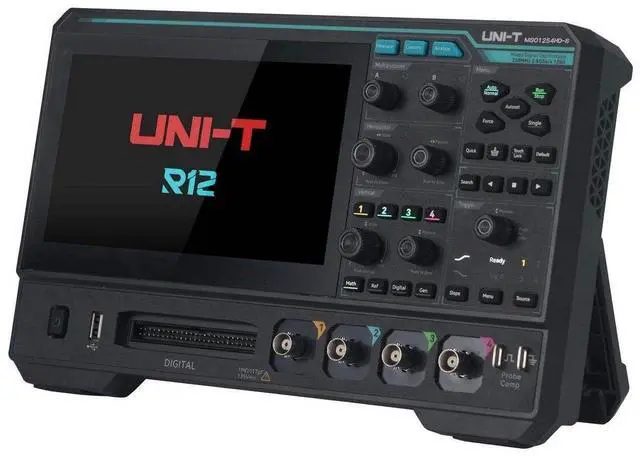

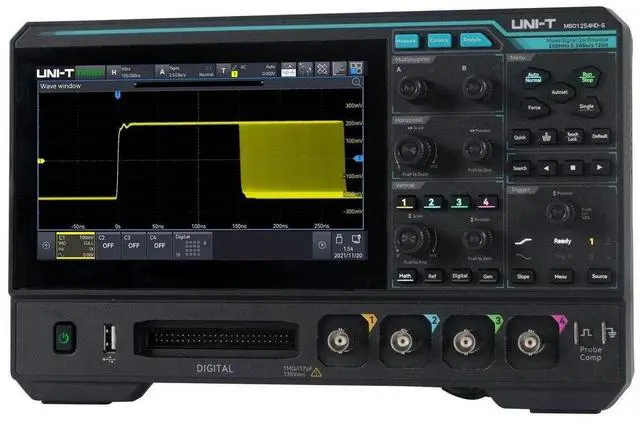

UNI-T MSO1254HD-S Mixed Signal Oscilloscope 4 Analog + 16 Digital, 12-Bit High Resolution, 250MHz, 2.5GSa/s, 100Mpts Memory, 1,000,000 wfms/s, 7" Touchscreen, 1Ch AWG
- WARRANTY AND DISPLAY: Five years limited warranty. Features a 12-bit vertical resolution and 4096 quantization levels for precise waveform analysis on a high-resolution display.; MIXED SIGNAL CAPABILITY: Four analog and sixteen digital channels enable advanced mixed signal analysis. Ultra Phosphor 3.0 delivers up to 1,000,000 wfms/s and 256 color grading.; HIGH-SPEED CAPTURE: Achieve 1,000,000 waveforms per second with Ultra Phosphor 3.0. 2.5 GSa/s sampling and 100 Mpts memory depth ensure detailed signal acquisition and glitch detection.; TOUCHSCREEN INTERFACE: Seven-inch color touchscreen allows intuitive navigation and quick access to measurement functions. USB-C powered for flexible lab or portable use. Power analysis tools included.; PROTOCOL AND TOOL INTEGRATION: Built-in serial bus decoding supports UART, I2C, SPI, CAN, LIN, CANFD, and Audio. Nine-in-one integration includes oscilloscope, logic analyzer, and spectrum analyzer.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Experience high-precision signal analysis with the UNI-T MSO1000HD Mixed Signal Oscilloscope, designed for professionals seeking advanced measurement capabilities. This 250MHz, 4-channel oscilloscope with 1-channel arbitrary waveform generator delivers 12-bit vertical resolution, a fast 2.5GS a/s sampling rate, and a deep 100Mpts memory depth for capturing detailed waveforms. Achieve rapid troubleshooting with a 1, 000, 000 waveforms per second capture rate powered by Ultra Phosphor 3.0 technology, making it easy to detect rare signal anomalies. The intuitive 7-inch touchscreen display with 1024x600 resolution ensures effortless navigation and clear data visualization.
Comprehensive protocol analysis is supported, including UART, I2C, SPI, CAN, LIN, CANFD, and Audio, making this oscilloscope a versatile 9-in-1 solution that integrates oscilloscope, logic analyzer, protocol decoder, and spectrum analyzer functions. The package includes a power cable, USB cable, probe compensation tool, quick start guide, and user manual for immediate setup. With USB-C power delivery compatibility, this oscilloscope is ideal for both laboratory and field use, and its robust design measures 18 x 14 x 10 in. for reliable performance in demanding environments.
Comprehensive protocol analysis is supported, including UART, I2C, SPI, CAN, LIN, CANFD, and Audio, making this oscilloscope a versatile 9-in-1 solution that integrates oscilloscope, logic analyzer, protocol decoder, and spectrum analyzer functions. The package includes a power cable, USB cable, probe compensation tool, quick start guide, and user manual for immediate setup. With USB-C power delivery compatibility, this oscilloscope is ideal for both laboratory and field use, and its robust design measures 18 x 14 x 10 in. for reliable performance in demanding environments.
