UNI-T MSO2104X 100 MHz 4Ch Nine-in-One Oscilloscope
- NINE-IN-ONE INSTRUMENT: 100 MHz 4-channel oscilloscope integrates logic analyzer, spectrum analyzer, protocol decoder, DVM, counter, AWG, and power analyzer in one instrument; DEEP MEMORY AND FAST CAPTURE: 100 Mpts memory depth captures long signal records without reducing sample rate; 2,000,000 wfms/s waveform capture rate reveals rare glitches and intermittent anomalies; BUILT-IN PROTOCOL DECODING: Integrated UART, I2C, SPI, CAN, and LIN serial bus analysis included; time-correlated decode overlay on waveforms simplifies embedded system debugging; TOUCHSCREEN INTERFACE: 10.1-inch capacitive touchscreen with gesture controls for intuitive waveform navigation; USB, LAN, and HDMI connectivity for lab integration; COMPLETE TEST SOLUTION: Ships with probes, power cord, and documentation; 5-year warranty with product registration (3+2 years); free PC software for waveform analysis and reporting
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Experience advanced signal analysis with the UNI-T MSO2000X Mixed Signal Oscilloscope, a versatile instrument that combines 9 essential functions in one powerful package. This professional-grade oscilloscope features 4 analog channels and 16 digital channels, with an impressive 100Mpts memory depth and ultra-fast waveform capture rate of 2, 000, 000 wfms/s in sequence mode. The stunning 10.1 -inch HD touchscreen display (1280x800) showcases Ultra Phosphor 3.0 technology with 256 grey levels for crystal-clear signal visualization. Navigate effortlessly using intuitive gesture controls including click, slide, zoom, edit, and drag functions.

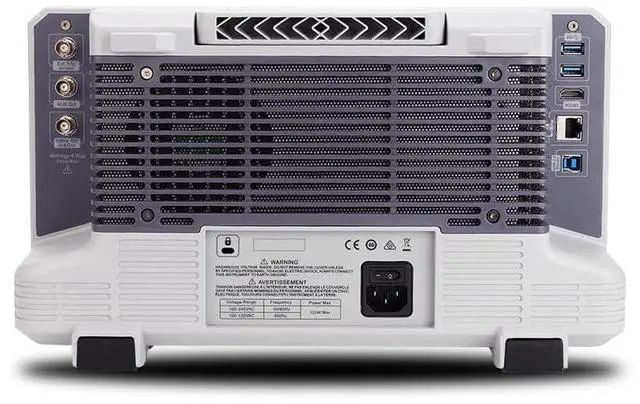

The device comes equipped with comprehensive protocol trigger and decoding capabilities, including RS232/UART, I2C, and SPI, with optional support for CAN, CAN-FD, LIN, FlexRay, AUDIO, and SENT protocols. Connect seamlessly through multiple interfaces including USB 3.0, LAN, and HDMI, while the built-in Webserver enables remote access and control via PC or mobile devices. Package includes four oscilloscope probes, BNC straight-through cable (UT-L45) and BNC to alligator clip cable (UT-L02A) for immediate setup and operation.
The device comes equipped with comprehensive protocol trigger and decoding capabilities, including RS232/UART, I2C, and SPI, with optional support for CAN, CAN-FD, LIN, FlexRay, AUDIO, and SENT protocols. Connect seamlessly through multiple interfaces including USB 3.0, LAN, and HDMI, while the built-in Webserver enables remote access and control via PC or mobile devices. Package includes four oscilloscope probes, BNC straight-through cable (UT-L45) and BNC to alligator clip cable (UT-L02A) for immediate setup and operation.
