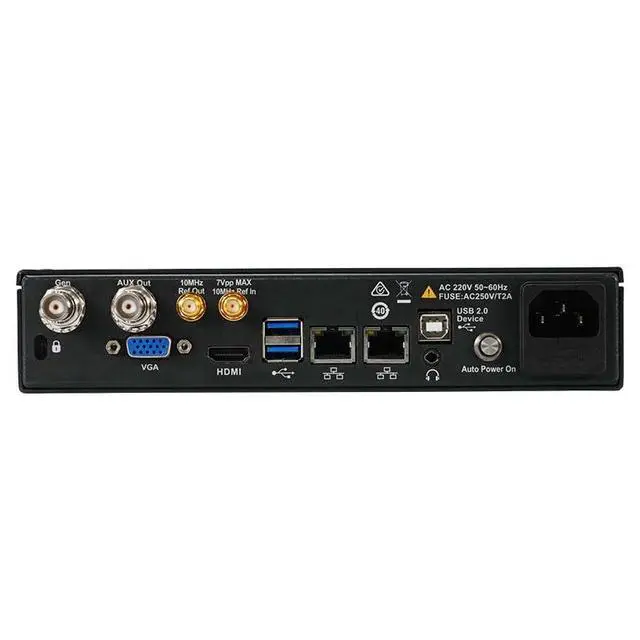

UNI-T UPO7204L Lab-Grade 2 GHz 4-Channel Rack-Mount Oscilloscope
- 2 GHz BANDWIDTH: Delivers high-frequency signal capture with a 2 GHz bandwidth, ideal for advanced lab and engineering applications. 10 GSa/s Sample Rate, 1 Gpts Memory, UltraAcq Acquisition.; 4-CHANNEL INPUT: Features four independent channels for simultaneous multi-signal analysis, enabling complex waveform comparisons. High Resolution Mode and FPGA-Resident ERes.; EIGHT-IN-ONE FUNCTIONALITY: Combines oscilloscope, spectrum analyzer, data logger, and more in a single rack-mount unit. 1U Headless Rack-Mount Form Factor.; RACK-MOUNT DESIGN: Lab-grade rack-mountable form factor integrates seamlessly into professional test benches and equipment racks. Multi-Machine Synchronization Up to 128 Units / 512 Channels.; LAB-GRADE PRECISION: Built to UNI-T's professional standards, delivering reliable, accurate measurements for demanding test environments. 11-Protocol Decode Set.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The UPO7204L is a lab-grade 2 GHz, four-channel digital storage oscilloscope in a 1U headless rack-mount form factor, engineered for high-density ATE rack integration, parallel high-channel-count semiconductor parametric test, and aerospace/automotive validation environments. The full 2 GHz analog bandwidth and 10 GSa/s sample rate are available in single-channel mode at 50; four-channel mode runs at 1 GHz analog bandwidth and 2.5 GSa/s. With 1 Gpts of acquisition memory in single-channel mode (250 Mpts at full four-channel), UltraAcq waveform mapping at 600, 000 wfms/s standard (2, 000, 000 wfms/s in Sequence mode), and external display via HDMI plus full WebServer browser-based remote control, the UPO7204L is an eight-in-one bench platform consolidating oscilloscope, spectrum analyzer, DVM, frequency counter, AWG, multi-bus protocol analyzer, power analyzer, and jitter analyzer with eye diagram (some functions require optional license unlocks see Detailed Features below).
For high-speed digital signal-integrity work at 2 GHz analog bandwidth in ATE rack environments, serial-link compliance in the USB 3.0 / PCIe Gen 1-2 region, MIPI characterization, jitter analysis on data rates above ~1 Gbps, and parallel high-channel-count test architectures where benchtop scopes hit channel-count and rack-density ceilings, the UPO7204L is the top SKU in the UPO7000L line. Calculated rise time of 175 ps resolves leading-edge content on the fastest commercial silicon. Selectable 50 / 1 M inputs (1 M caps at 500 MHz) bring RF-grade signal-chain options to the same instrument.
Multi-machine synchronization up to 128 units / 512 channels enables parallel test architectures benchtop scopes cannot match.
For high-speed digital signal-integrity work at 2 GHz analog bandwidth in ATE rack environments, serial-link compliance in the USB 3.0 / PCIe Gen 1-2 region, MIPI characterization, jitter analysis on data rates above ~1 Gbps, and parallel high-channel-count test architectures where benchtop scopes hit channel-count and rack-density ceilings, the UPO7204L is the top SKU in the UPO7000L line. Calculated rise time of 175 ps resolves leading-edge content on the fastest commercial silicon. Selectable 50 / 1 M inputs (1 M caps at 500 MHz) bring RF-grade signal-chain options to the same instrument.
Multi-machine synchronization up to 128 units / 512 channels enables parallel test architectures benchtop scopes cannot match.
