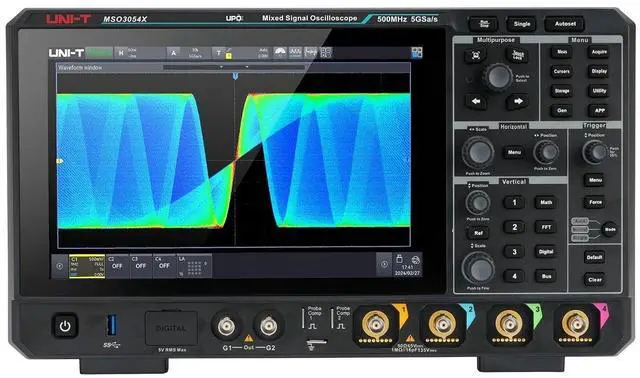

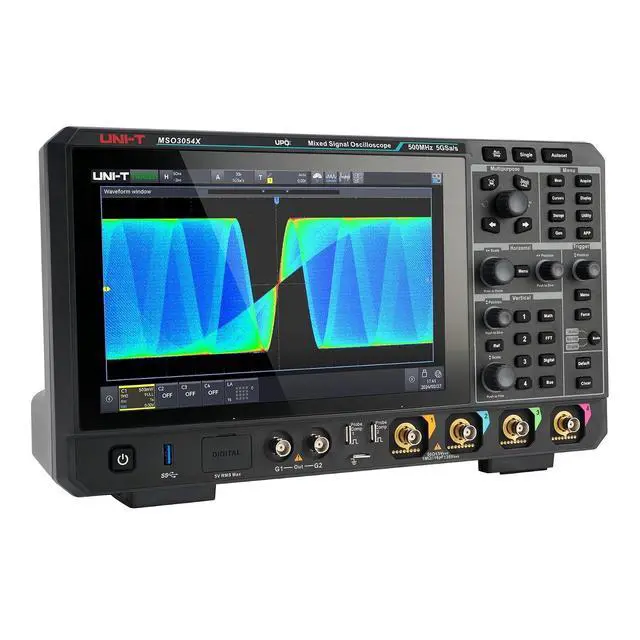

UNI-T MSO3054X 4Ch Mixed Signal Oscilloscope Analog Channel 5GSa/s 500Mpts Memory Depth 2,000,000wfms/s 12-bit ERES Resolution 10.1" Ultra Phosphor 3 Touchscreen Display (500MHz)

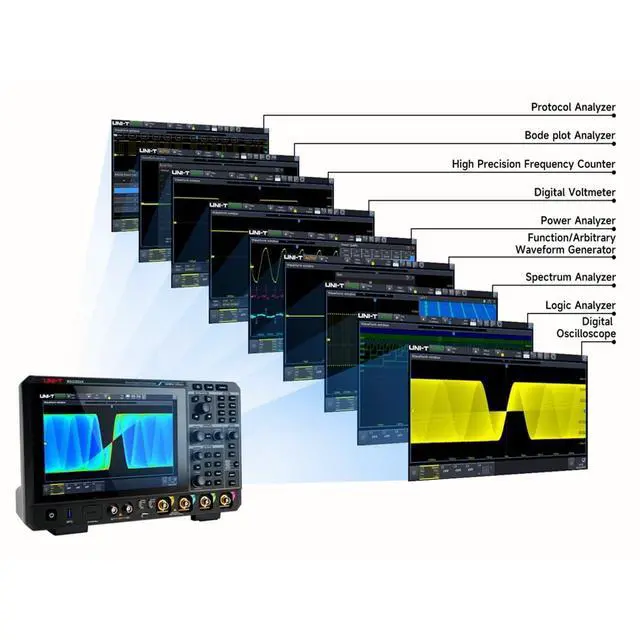

- 5 YEARS LIMITED WARRANTY. 9-IN-1 INTEGRATED INSTRUMENT: Combines Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, High-Precision Frequency Counter, Protocol Analyzer, Jitter/Eye Analyzer and Power Analyzer in one device; HIGH PERFORMANCE SPECIFICATIONS: Features 4 analog channels with 5GSa/s sampling rate, 16 digital channels, 500Mpts maximum memory depth, and exceptional 2,000,000 wfms/s waveform capture rate in sequence mode with 12-bit ERES resolution; ADVANCED DISPLAY AND INTERFACE: 10.1-inch 1280x800 HD capacitive multi-touch screen with Ultra Phosphor 3.0 technology supporting up to 256 grey levels, intuitive gesture controls including click, slide, zoom, edit and drag functions; COMPREHENSIVE PROTOCOL SUPPORT: Includes RS232/UART, I2C, SPI protocol trigger and decoding functions with optional CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT capabilities, plus zone triggering for capturing accidental and complicated signals; VERSATILE CONNECTIVITY: Multiple peripheral interfaces including USB 3.0 Host and Device, LAN, EXT Trig, AUX Out, Gen Out, HDMI, plus built-in Webserver for remote access and control via PC or mobile device across platforms; Package includes four oscilloscope probes, BNC straight-through cable (UT-L45) and BNC to alligator clip cable (UT-L02A) for immediate setup and operation
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Experience advanced signal analysis with the UNI-T MSO3000X Mixed Signal Oscilloscope, a versatile instrument that combines 9 essential functions in one powerful package. This professional-grade oscilloscope features 4 analog channels and 16 digital channels, with an impressive 100Mpts memory depth and ultra-fast waveform capture rate of 2, 000, 000 wfms/s in sequence mode. The stunning 10.1 -inch HD touchscreen display (1280x800) showcases Ultra Phosphor 3.0 technology with 256 grey levels for crystal-clear signal visualization. Navigate effortlessly using intuitive gesture controls including click, slide, zoom, edit, and drag functions.

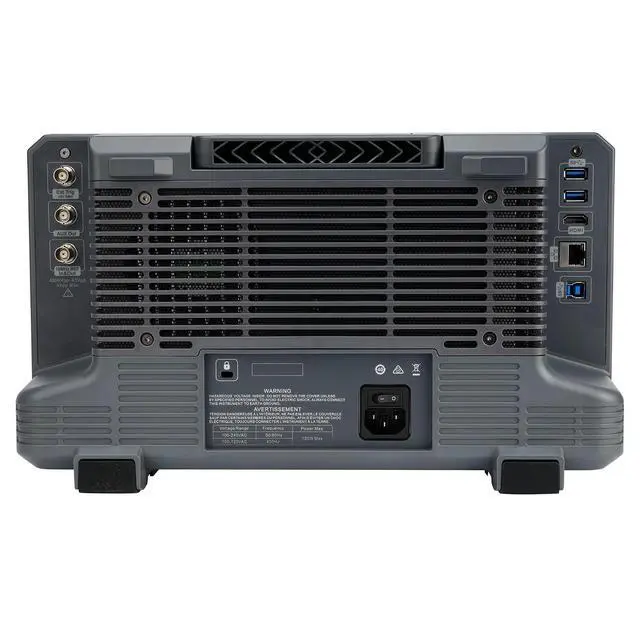

The device comes equipped with comprehensive protocol trigger and decoding capabilities, including RS232/UART, I2C, and SPI, with optional support for CAN, CAN-FD, LIN, FlexRay, AUDIO, and SENT protocols. Connect seamlessly through multiple interfaces including USB 3.0, LAN, and HDMI, while the built-in Webserver enables remote access and control via PC or mobile devices. Package includes four oscilloscope probes, BNC straight-through cable (UT-L45) and BNC to alligator clip cable (UT-L02A) for immediate setup and operation.
The device comes equipped with comprehensive protocol trigger and decoding capabilities, including RS232/UART, I2C, and SPI, with optional support for CAN, CAN-FD, LIN, FlexRay, AUDIO, and SENT protocols. Connect seamlessly through multiple interfaces including USB 3.0, LAN, and HDMI, while the built-in Webserver enables remote access and control via PC or mobile devices. Package includes four oscilloscope probes, BNC straight-through cable (UT-L45) and BNC to alligator clip cable (UT-L02A) for immediate setup and operation.
