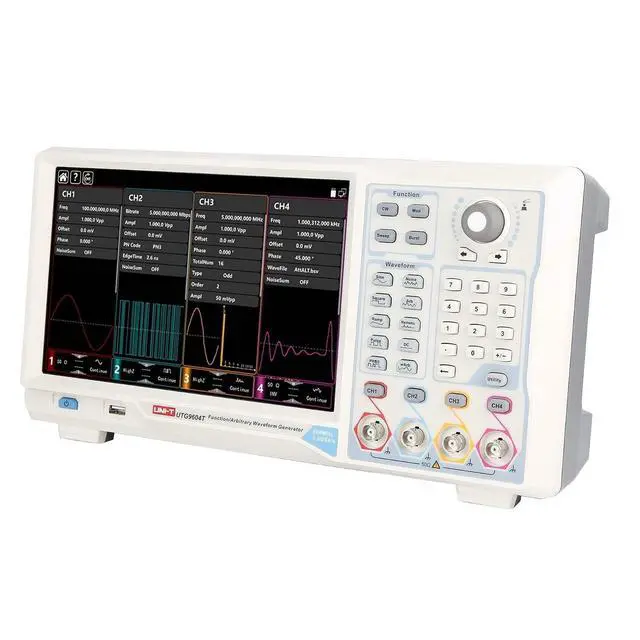

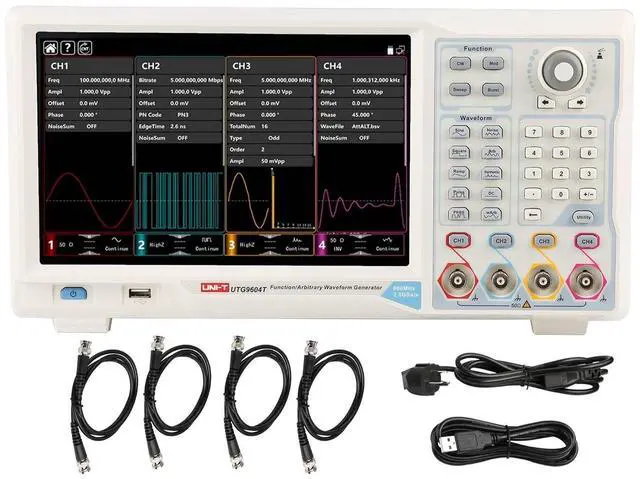

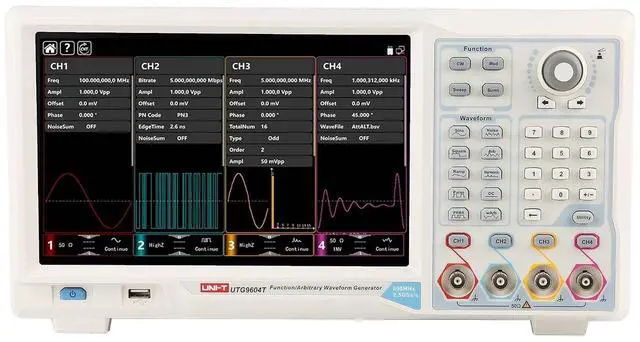

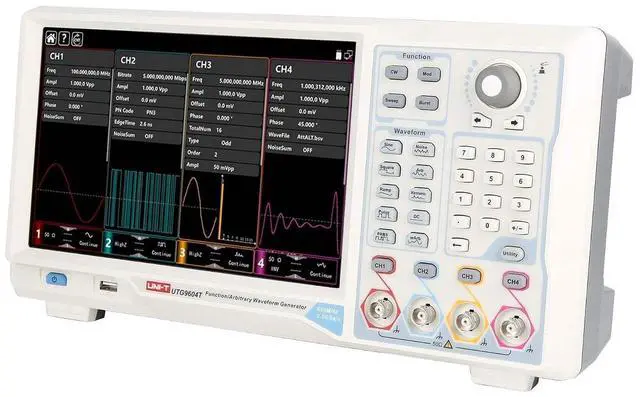

UNI-T UTG9604T 600MHz 4Ch Elite-Series Arbitrary Waveform Generator Function/Arbitrary Waveform Generator 4 Channels, 2.5GSa/s, Wave Length: 16Mpts, 10.1Display
- 600MHz, 4 channels, 2.5GSa/s, Memory Depth: 64Mpts, 10.1in display, USB. Modulations: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM. Accessories: BNC straight line*2, Power cord, USB2.0 printing cable, English download guide, multi-language safety manual, calibration report (COC).; Stores over 200 types of standard waveforms in nonvolatile memory. Upper-computer software can create and compile arbitrary wave, use USB interface on the front panel to read arbitrary wave data file in USB.; Sweep function: Support scanning output from low frequency to high frequency or from high frequency to low frequency. Scanning types include linear and logarithmic.; Unique digital interface: Optional digital signal output interface: SPI, IIC, UART. To generate stable, precise, low distortion signals the UTG9000T Elite-Series adopts Direct Digital Synthesizer (DDS) technology. User-friendly interface design with high resolution 10.1-inch display screen and rational panel layout to improve operational efficiency.; The UTG9000T Series waveform generators are applied to a wide range of application domain, integrating multiple waveforms for Function Generation and Arbitrary Waveform Generation. The UTG9000T Series is a waveform generator with high sampling rate up to 2.5GSa/s, MAX waveform length up to 64Mpts.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product description UNI-T UTG9000T waveform generator UNI-T UTG9000T waveform generator features 10.1 inch large touch screen 10.1 inches capacitive touchscreen with 1280*800 resolution The new UI design brings a different user experience. 4 channel output, 4 scan function modes With standard analog 4-channel output, 4
scanning function modes: linear, logarithmic, step, list High-precision frequency meter 100mHz~800MHz 8-bit high-precision frequency counter which can measure the frequency, period, duty cycle, positive pulse width and negative pulse width of external input signals Multiple modulation modes and multiple output arbitrary waveforms Abundant analog and digital modulation types include AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM to meet the needs of more teaching or communication system testing. Built-in more than 200 kinds of arbitrary waveforms commonly used, engineering, bioelectricity, medical, standard, mathematics, trigonometric functions, inverse triangles, complex waveforms, etc. for classification With PRBS pseudo-random wave and a signal-to-noise ratio function The bit error rate of high-speed serial channel transmission can be tested by sending PRBS codes.
One-key signal-to-noise ratio: The noise superposition function supports superimposing a Gaussian noise on the main output signal, which can be used to test the anti-noise performance of the equipment. UNI-T UTG9000T waveform generator The UNI-T UTG9000T series is a 4 channels waveform generator and able to provide more multi-function such as Noise, IQ signals and PRBS etc. The series MAX Frequency output is 600MHz and the MAX sampling rate is up to 2.5GS a/s. It generates accurate & stable waveform which adopts Direct Digital Synthesizer (DDS) technology. The Series provides high performance and multiple functions with high-resolution (1Hz). With a super screen 10.1 inches & rational layout is to enhance comfort level and improve users work UTG9604T efficiency. UTG9354T UTG9504T UTG9604T Add to Cart Add to Cart Add to Cart Price $3, 023.20 $3, 023. 20 $4, 719.20 $4, 719. 20 $5, 087.20 $5, 087. 20 MAX. OUTPUT FREQUENCY 350 MHz 500 MHz 6000 MHz SAMPLE RATE 2.5 GSa/s 2.5 GSa/s 2.5 GSa/s VERTICAL RESOLUTION 16-bit/14bit 16-bit/14bit 16-bit CHANNELS 4 4 4 ARBITRARY WAVE LENGTH 64 Mpts 64 Mpts 64 Mpts DISPLAY 10.1 inch 10.1 inch 10.1 inch See More
scanning function modes: linear, logarithmic, step, list High-precision frequency meter 100mHz~800MHz 8-bit high-precision frequency counter which can measure the frequency, period, duty cycle, positive pulse width and negative pulse width of external input signals Multiple modulation modes and multiple output arbitrary waveforms Abundant analog and digital modulation types include AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM to meet the needs of more teaching or communication system testing. Built-in more than 200 kinds of arbitrary waveforms commonly used, engineering, bioelectricity, medical, standard, mathematics, trigonometric functions, inverse triangles, complex waveforms, etc. for classification With PRBS pseudo-random wave and a signal-to-noise ratio function The bit error rate of high-speed serial channel transmission can be tested by sending PRBS codes.
One-key signal-to-noise ratio: The noise superposition function supports superimposing a Gaussian noise on the main output signal, which can be used to test the anti-noise performance of the equipment. UNI-T UTG9000T waveform generator The UNI-T UTG9000T series is a 4 channels waveform generator and able to provide more multi-function such as Noise, IQ signals and PRBS etc. The series MAX Frequency output is 600MHz and the MAX sampling rate is up to 2.5GS a/s. It generates accurate & stable waveform which adopts Direct Digital Synthesizer (DDS) technology. The Series provides high performance and multiple functions with high-resolution (1Hz). With a super screen 10.1 inches & rational layout is to enhance comfort level and improve users work UTG9604T efficiency. UTG9354T UTG9504T UTG9604T Add to Cart Add to Cart Add to Cart Price $3, 023.20 $3, 023. 20 $4, 719.20 $4, 719. 20 $5, 087.20 $5, 087. 20 MAX. OUTPUT FREQUENCY 350 MHz 500 MHz 6000 MHz SAMPLE RATE 2.5 GSa/s 2.5 GSa/s 2.5 GSa/s VERTICAL RESOLUTION 16-bit/14bit 16-bit/14bit 16-bit CHANNELS 4 4 4 ARBITRARY WAVE LENGTH 64 Mpts 64 Mpts 64 Mpts DISPLAY 10.1 inch 10.1 inch 10.1 inch See More
