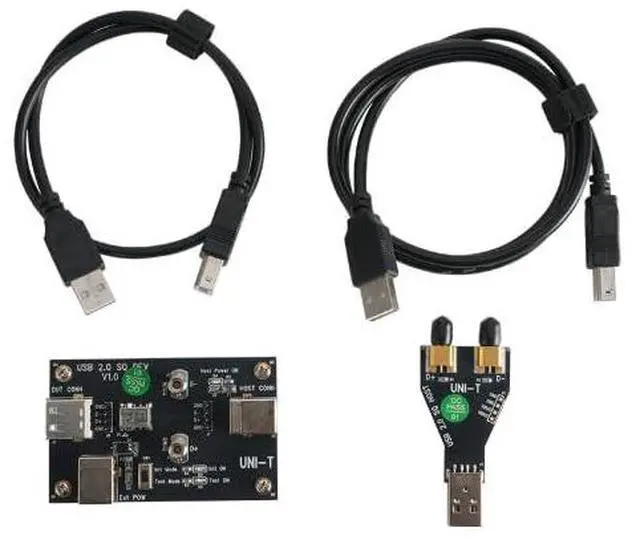

UNI-T UT-USB20-SQ-HD USB 2.0 Compliance Test Fixture
- USB 2.0 Compliance Testing: Dedicated test fixture designed for precise USB 2.0 compliance and signal integrity measurements.; Compatible with UNI-T Oscilloscopes: Engineered specifically for use with UNI-T high-resolution oscilloscopes for accurate results.; Controlled Impedance Design: Ensures consistent, standards-traceable test results for reliable signal quality measurements.; Repeatable Measurements: Precision-built fixture delivers consistent performance across multiple test cycles and setups.; Signal Integrity Focus: Ideal for engineers and technicians requiring dependable USB 2.0 compliance verification and diagnostics.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
The UT-USB20-SQ-HD is a dedicated USB 2.0 compliance test fixture built for engineers and technicians who demand precision in signal integrity testing. Designed specifically for use with UNI-T high-resolution oscilloscopes, this fixture streamlines the process of evaluating USB 2.0 compliance and signal quality measurements. Its controlled impedance design ensures repeatable, consistent results that are traceable to recognized standards, making it a reliable choice for both development and quality assurance workflows. Whether you are validating a new design or troubleshooting signal issues, the UT-USB20-SQ-HD delivers the accuracy and consistency needed to meet USB 2.0 specifications.
Its purpose-built construction minimizes measurement variability, giving you confidence in every test result. A solid addition to any electronics testing bench, this fixture pairs seamlessly with compatible UNI-T oscilloscopes to form a complete USB signal analysis solution.
Its purpose-built construction minimizes measurement variability, giving you confidence in every test result. A solid addition to any electronics testing bench, this fixture pairs seamlessly with compatible UNI-T oscilloscopes to form a complete USB signal analysis solution.
