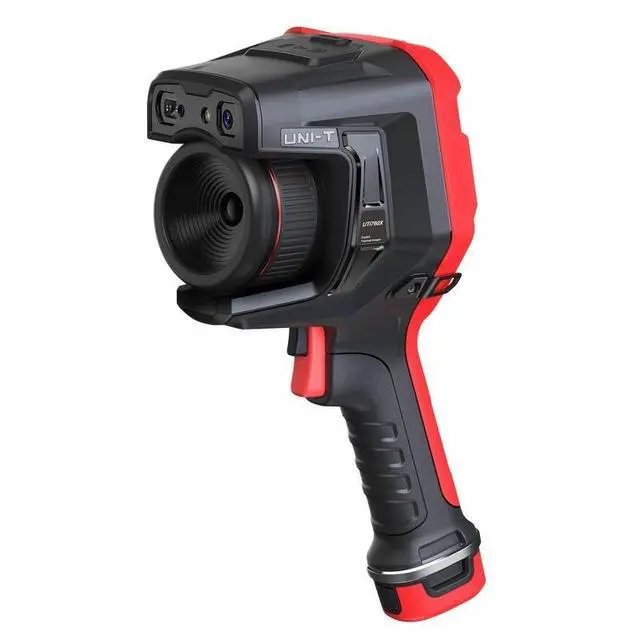

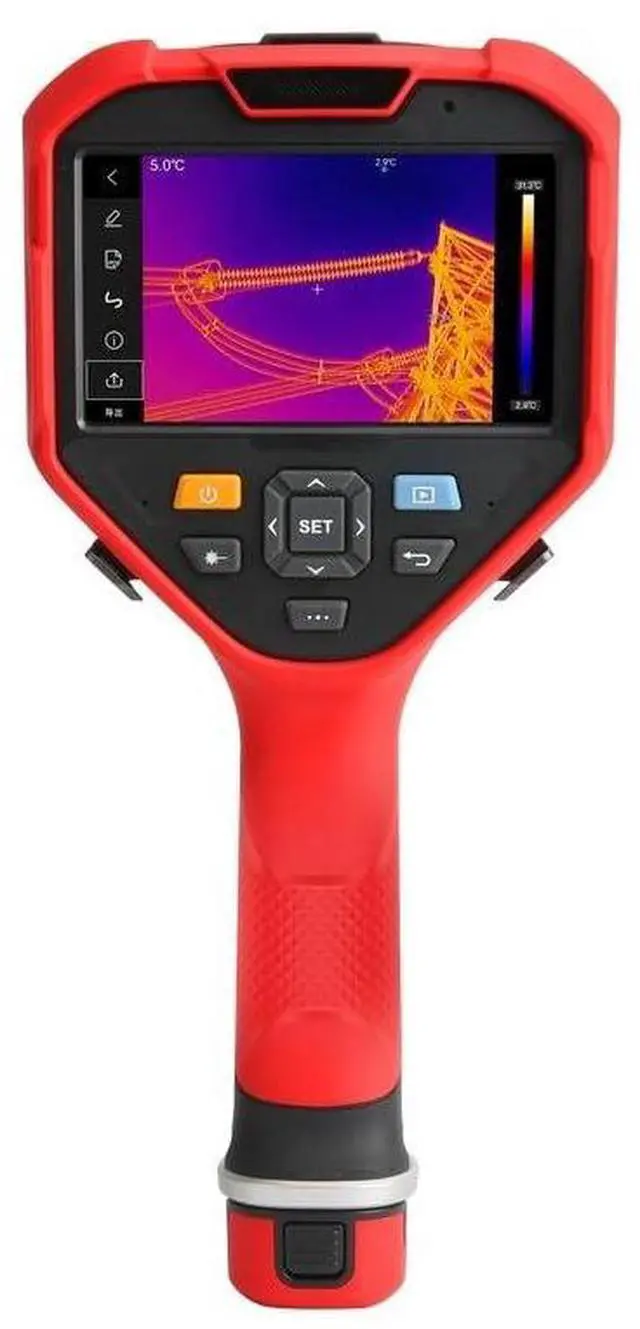

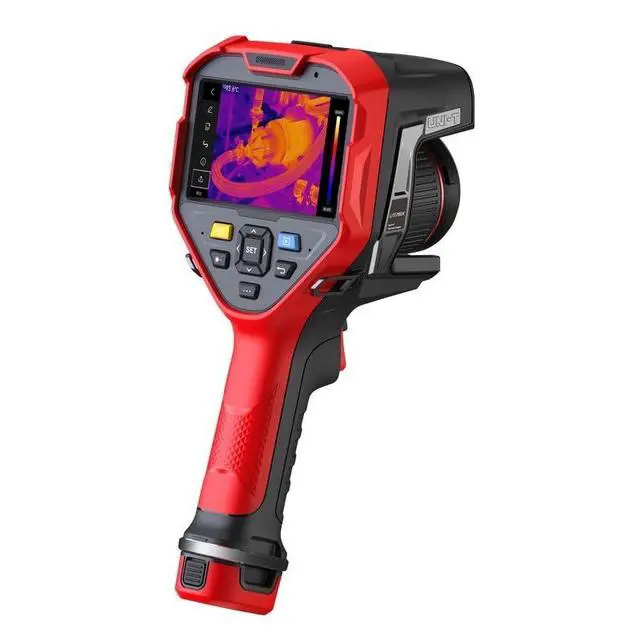

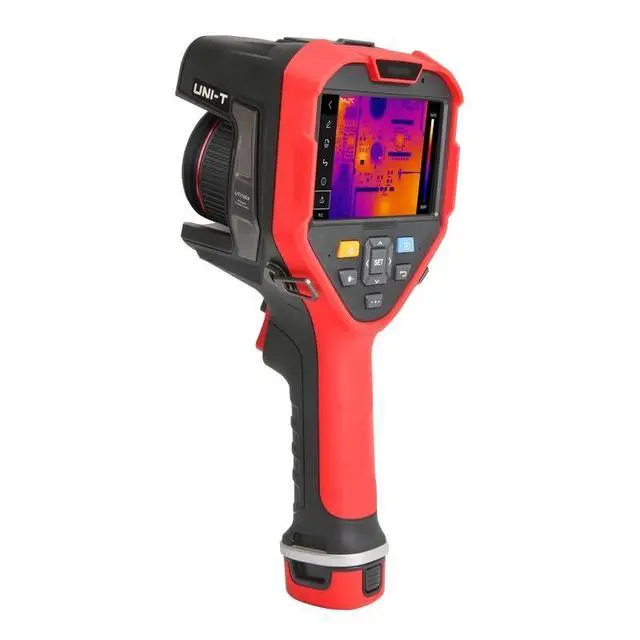

UNI-T UTi760X 640 Inspector Series Thermal Imager 640x512 Resolution

The UNI-T Inspector Series brings the imaging capability of a thermography lab into a single 5-inch handheld instrument. A 640×512 radiometric detector at 0.66 mrad IFOV resolves temperature variation across switchgear panels, motor housings, transformer oil-fill levels, and PCB hotspots without the cooled-detector cost or the workflow overhead of a dedicated thermography rig. Super-resolution synthesizes a 1280×1024 output from the native detector useful when the source image needs to read clearly in a report figure or annotation panel. Continuous autofocus, contrast / semi-auto AF, and laser-assisted focus combine to keep the target in focus across the working range useful when moving down a substation aisle inspecting bus connections, or stepping in and out of an MCC panel.

The Inspector Series accepts six interchangeable lenses covering field-of-view from 7° tele to 46° wide, with a High-Temperature lens that extends measurement to 1000°C 2200°C for foundry, refractory, kiln, and induction-heating work. A 16-point analyzer with T-select, ROI emissivity correction, Smart Meter (auto-recognition of gauges and meters in the visual channel), AI Voice annotation, dual-channel imaging, and OTA firmware updates round out the Inspector Series feature set. The instrument ships with PC + mobile analysis software included no subscription, no per-seat license. Field workflow connects via Wi-Fi live streaming, Bluetooth, HDMI display extension, and Type-C USB.
