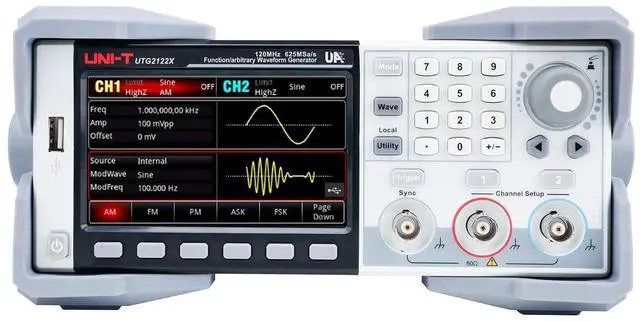

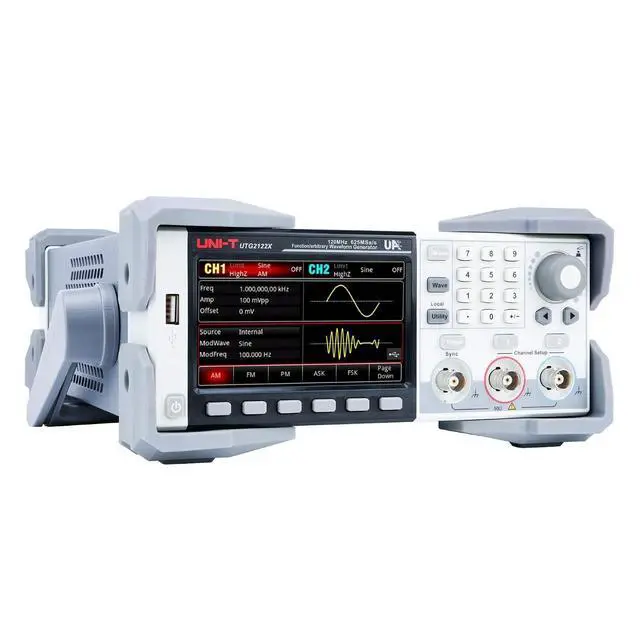

UNI-T UTG2122X 120 MHz 2-Channel Arbitrary Waveform Generator

The UNI-T UTG2122X is a two-channel arbitrary waveform generator delivering 120 MHz sine wave output with 1.25 GSa/s sampling, 16-bit vertical resolution, and 64 Mpts waveform memory. The high sample rate relative to maximum frequency gives the UTG2122X excellent waveform fidelityover 20 sample points per cycle at 80 MHzproducing cleaner output with lower harmonic distortion than generators that run closer to their Nyquist limits. 120 MHz Sine / 40 MHz Square & Pulse High-quality output with less than 0.07 % total harmonic distortion (DC20 kHz, 1 Vpp). Pulse output with minimum 8 ns width and 5 ns edge time handles fast digital timing applications.

1.25 GSa/s Sampling with 16-Bit Resolution Industry-leading sample rate for a two-channel generator in this class. High oversampling ratio produces cleaner signals at all frequencies with lower quantization noise and spurious content. 64 Mpts Arbitrary Waveform Memory Point-by-point output at up to 64 million points reproduces complex captured waveforms without interpolation artifacts. 200+ built-in waveforms plus USB import from free PC software. 15 Modulation Types Complete analog and digital modulation coverage: AM, FM, PM, PWM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, DSB-AM, SUM, and QAM. Internal and external modulation sources supported. Expression Output Define waveforms mathematically as Vout = f (x) using operators, functions, and free variabl Ships from authorized US dealer with 5-year warranty (3 years standard + 2 years with free registration)
