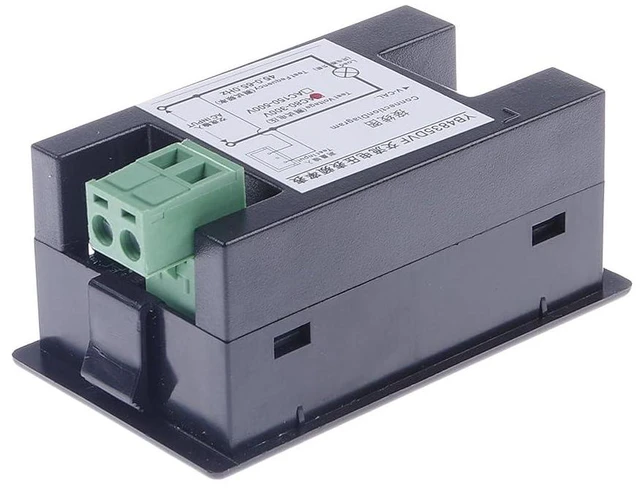

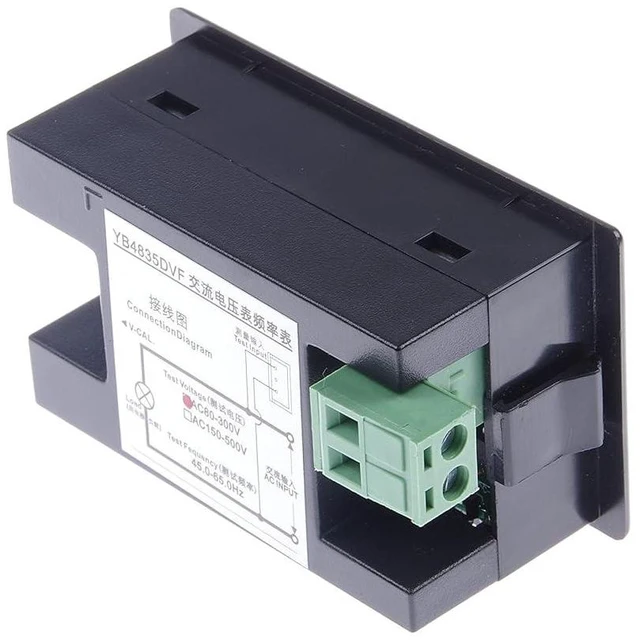

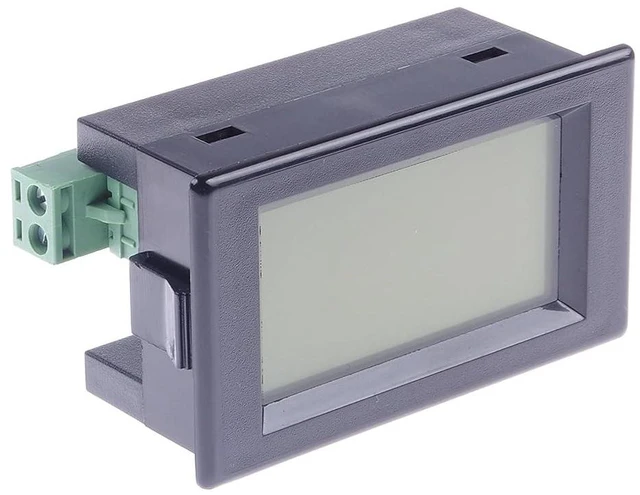

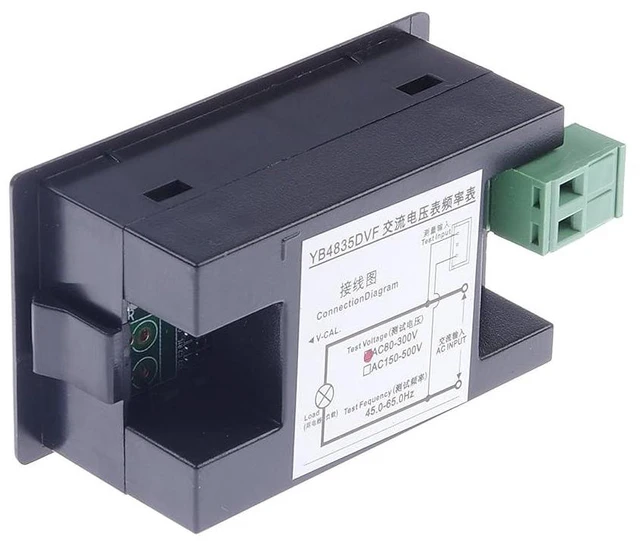

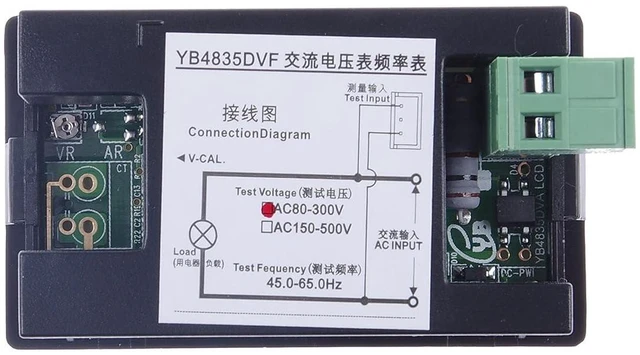

Digital AC Voltmeter AC 80-300V Frequency Counter 45.0-65.0Hz LCD Display Voltage Frequency 2 in 1 Meter Tester
- Digital AC 80-300V Voltmeter and Frequency Meter, you can measure both AC voltage and frequency in one voltmeter.; This voltmeter uses two-wire design, wide measurement range, wiring is simple and convenient.; Accuracy: 1%, minimum resolution: 1V.; AC frequency measuring range: 45.0-65.0 Hz, minimum resolution -0.1Hz.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Parameters: Measuring range of the voltmeter AC 80-300V.
Accuracy: 1%.
Display: LCD display, blue backlight, black characters.
LCD Size: 48* 24.5 mm.
AC frequency measuring range: 45.0 - 65.0 Hz, minimum resolution - 0.1H z.
AC voltage measuring range:
AC80-300V: minimum resolution --1V.
Measurement speed: about 2 times per second.
Dimensions: 70x40x30mm (LWH).
Mounting Holes: 68*38mm (LW).
Working temperature: -10 ~ + 50
Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Note: This table uses the principle of capacitor step-down design, because the higher the frequency the smaller the impedance of the capacitor, it is not suitable for use in high-frequency electronic speed control, non-mains frequency sine wave, or other high-frequency components.
Packge Included: 1pcs Digital AC 80-300V Voltmeter
Accuracy: 1%.
Display: LCD display, blue backlight, black characters.
LCD Size: 48* 24.5 mm.
AC frequency measuring range: 45.0 - 65.0 Hz, minimum resolution - 0.1H z.
AC voltage measuring range:
AC80-300V: minimum resolution --1V.
Measurement speed: about 2 times per second.
Dimensions: 70x40x30mm (LWH).
Mounting Holes: 68*38mm (LW).
Working temperature: -10 ~ + 50
Humidity: 10 to 80% (non-condensing)
Working pressure: 80 ~ 106kPa
Note: This table uses the principle of capacitor step-down design, because the higher the frequency the smaller the impedance of the capacitor, it is not suitable for use in high-frequency electronic speed control, non-mains frequency sine wave, or other high-frequency components.
Packge Included: 1pcs Digital AC 80-300V Voltmeter
