NetAlly EtherScope® nXG Ethernet Network Tester & Wi-Fi 6 & 7 Diagnostics Tool Model EXG-300-KT-X2

Brand NetAlly ,

Model EXG-300-KT-X2

Battery Rechargeable lithium-ion battery pack (7.2 V, 6.4 A, 46 Wh),

Battery life Typical operating life is 3-4 hours (Battery life from full charge varies depending on the feature being used); Typical charge time is 3 hours,

Display 5.0-inch color LCD with capacitive touchscreen (720 x 1280 pixels),

Host Interfaces RJ-45 Cable Test and Management Port,

USB Type-A Port and USB Type-C On-the-Go Port,

SD Card Port Supports Micro SD card storage up to 32GB supported,

Memory Approximately 8 GB available for storing test results and user applications,

Charging USB Type-C 45-W adapter: 100-240 Vac, 50-60 Hz; DC Output Power 15 V (3 A),

Media Access Copper: 10M/100M/1G/2.5G/5G/10G,

Fiber SFP Adapters: 1G/10GBASE-X,

Supported IEEE Standards Wired: 802.3/ab/ae/an/bz/i/u/z WiFi: 802.11a/b/g/n/ac/ax,

PoE: 802.3af/at/bt, Class 0-8 and UPOE,

Cable Test Pair lengths, opens, shorts, splits, crossed, straight through, and WireView ID,

Wireless:

EtherScope nXG has two internal WiFi Radios:

Testing 2×2 Tri-band 802.11ax wireless radio, IEEE 802.11a/b/g/n/ac/ax compliant,

Management 1×1 Dual-band 802.11ac Wave 2 + Bluetooth 5.0 and BLE wireless radio, IEEE 802.11a/b/g/n/ac compliant.

Specification Compliance IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.1ax,

WiFi Connectivity 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax,

Operating Frequencies NOTE: These are the center frequencies of the channels that the EtherScope nXG tester supports. Frequencies of channels received and transmitted:

2.4 GHz band: 2.412 2.484 GHz (channel 1 to 14),

5 GHz band: 5.170 5.320 GHz, 5.500 5.700 GHz, 5.745 5.825 GHz (channel 36 to 165),

6 GHz band: 5.925 7.125 GHz (channel 1 to channel 233),

*NOTE: Where allowed my country regulations.The tester transmits only on the frequencies allowed in the country where it is operating.

Antennas:

Internal WiFi Antennas Minimum gain 2.0 dBi peak in the 2.4 GHz band, 1.5 dBi peak in the 5 GHz band, and 2.7 dBi peak in the 6 GHz band.

External Directional Antennas

Antenna, frequency range 2.4 to 2.5 GHz, 4.9 to 5.9 GHz, and 6.0 to 7.1 GHz,

Minimum gain 6.4 dBi peak in the 2.4 GHz band, 8.9 dBi peak in the 5 GHz band, a 8.6 dBi peak in the 6 GHz band

NPT Reflector Agent:

Supporting Operating Systems Windows® 10, Windows® 11, and Windows® Servers 2019, 2022, and 2025,

Minimum Hardware Requirement,

Processor 1 GHz or better CPU,

RAM 1 GB or more RAM,

Hard Disk 1 GB available space,

Network Interface Ethernet and/or WiFi,

Dimensions 4.05 in x 7.67 in x 2.16 in (10.3 cm x 19.5 cm x 5.5 cm),

Weight 1.677 lbs. (0.76 kg),

EtherScope nXG Portable Network Expert Professional Kit

Includes: (1) EXG-300 mainframe with one-year of AllyCare Pro support (EXG-300-1YS), NXT-2000 Spectrum Analyzer, G3-PWRADAPTER, EXG-LR10G-HOLSTER, SFP+MR-10G850, SFP+MR-10G1310, RJ-45 inline coupler, EXT-ANT-TRIBAND, TEST-ACC, WIREVIEW 1-6, Quick Start Guide, and medium softcase.

The EtherScope nXG is the industrys most comprehensive portable network analyzer, purpose-built for engineers managing the converged chaos of multi-gig Ethernet, PoE, enterprise Wi-Fi 6/7, and Bluetooth/BLE environments.

One device. Complete visibility. Zero compromises.

Provides realtime visibility into essential WiFi7 parameters like multi-link operation (MLO), wider channels, WPA3 security, and 6 GHz adoption.

Supports LANBERT Media Qualification, including long-duration testing to diagnose intermittent physical-layer issues that can be hard to detect with other tools.

Portable network analyzer for Wi-Fi 6/6E/7 surveying (with AirMapper Site Survey), troubleshooting, diagnostics, and spectrum analysis (with optional NXT-2000 Portable Spectrum Analyzer) in the 2.4, 5, and 6 GHz bands.

Verify multi-gig and 10G Ethernet link performance for critical servers, key end devices, and Wi-Fi 7 network deployments.

Automatically discover and instantly generate a topology map of your wired and Wi-Fi networks using Link-Live reporting and analysis platform.

Enables remote engineers to troubleshoot and collaborate with on-site technicians.

Key Features:

Use smart testing apps and purpose-built hardware

Quickly install, test, verify, and troubleshoot technology upgrades, NBASE-T, 10G, Bluetooth/BLE, and Wi-Fi networks with smart testing apps and purpose-built ruggedized hardware.

Identify physical layer issue that other tools miss

Different from cable certification and qualification tools, LANBERT allows you to verify max achievable speeds by using actual traffic and Digital Signal Processing.

Easily document complex network deployments

Empower technicians who may not have access to network management systems or other engineer-level tools to assess and document complex network deployments with multiple VLANs and Wi-Fi SSIDs.

Wi-Fi visibility and validation

With realtime visibility into essential WiFi7 parameters (including MLO), EtherScope nXG is ideal for validating the deployment of 802.11be access points and assessing client support.

Attain complete device visibility and detect network changes

Automatically discover and instantly map* your wired Ethernet and Wi-Fi networks in Link-Live; identifies network changes, discovers wireless security threats, and keeps network documentation up to date.

Simple access-anywhere with Remote Control

The EtherScope nXG has a dedicated Wi-Fi management port that enables a remote engineer to control the unit out of band (via VNC or Link-Live). Allowing them to collaborate with technicians on-site, or to troubleshoot remotely.

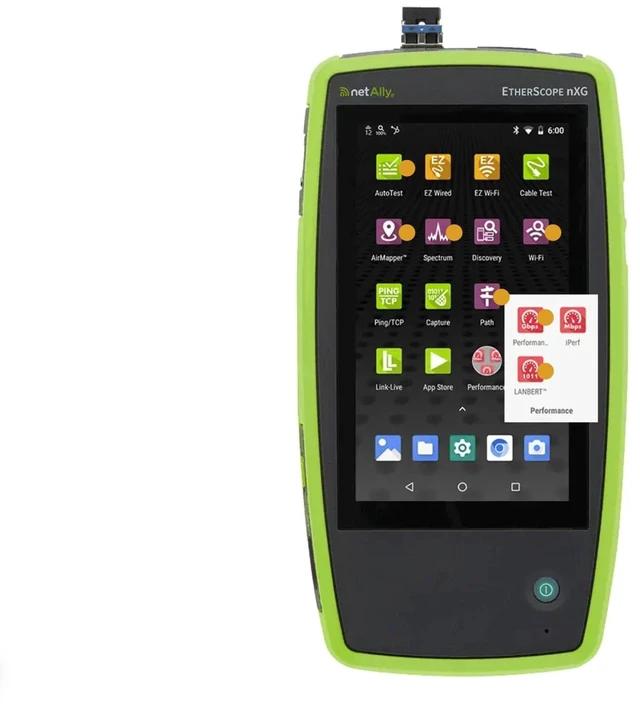

Home Screen:

The EtherScope nXG is a Wi-Fi and 10G wired network analyzer. It has a dedicated set of Ethernet and WiFi management interfaces which support remote control and additional testing. It has a Bluetooth/BLE radio, and advanced test apps downloaded from the Link-Live collaboration, reporting, and analysis platform can use these interfaces for testing and communication purposes.

Benefit:

As a lightweight, handheld, multi-function instrument, EtherScope is perfect for remote site validation and troubleshooting, eliminating the need to purchase multiple testers, and the need to carry a fragile laptop PC or tablet. Apps make the users workflow more efficient by expanding the usage of the instrument beyond testing, allowing the user to check trouble tickets, run speed tests, configure networked devices, and complete other tasks with its smartphone-like features.
