2024 Upgraded Mini1300 Antenna Analyzer 0.1-1300MHz with 4.3 Inch TFT LCD Touch Screen,Portable Vector Network Analyzer with SMA Calibration Kits,HF/VHF/UHF All Bands
- Diverse functionsThis device has functions such as single frequency point testing, frequency scanning, multi band standing wave testing, single frequency standing wave testing, and feeder length testing. Having such a device can meet various needs.

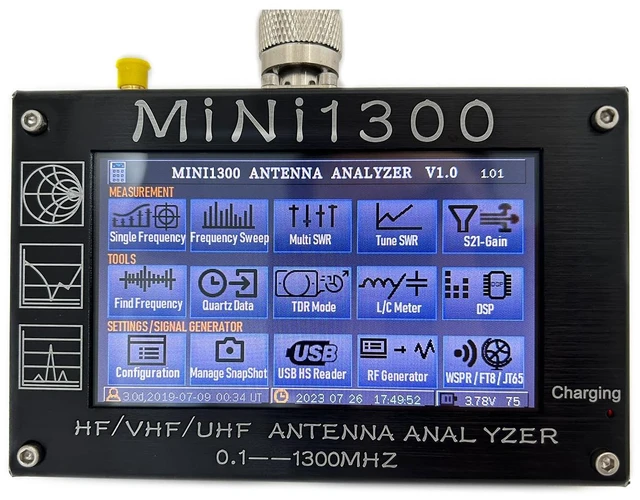

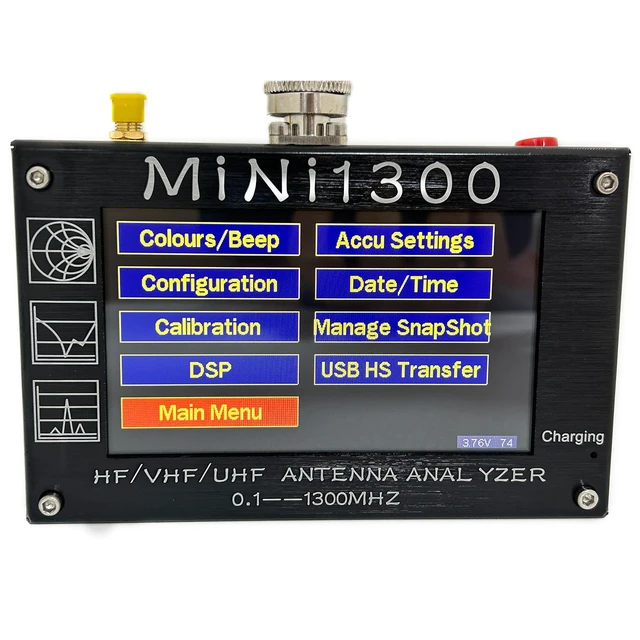

- Easy operationEquipped with a 4.3 inch TFT LCD touch screen, the menu interface is intuitive and easy to operate. Using the SMA open short load calibration kits, it is easy to calibrate directly.
- Wide measurement rangeFrequency range: 0.1-1300MHz, HF, VHF, UHF All bands continuous coverage.SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode).
- Multi mode measurementSingle point measurement, scanning (frequency scanning), and TDR mode. All aluminum alloy shell, portable and compact, easy to operate and carry.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Specifications:
- Frequency Range: 0.1-1300MHz
- HF/VHF/UHF continuous coverage
- In/Out Impedance: 50 ohms
- Measurement Parameters: SWR, R, +Jx, -Jx, Z, Returnloss

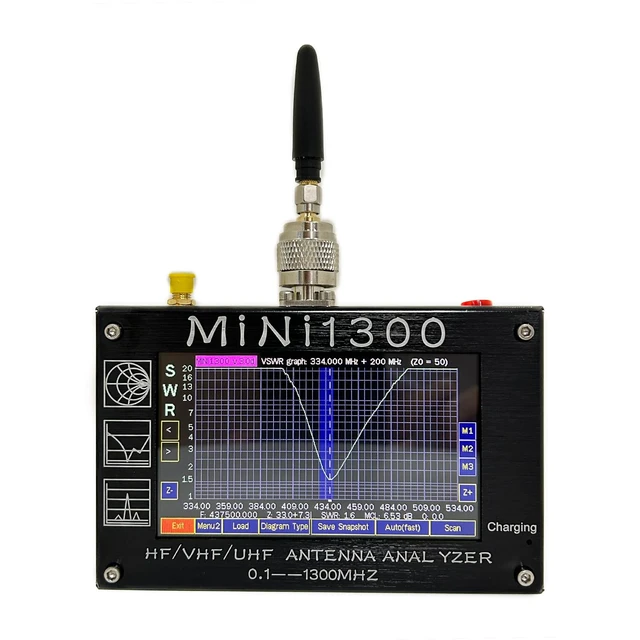

- Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
- SWR Measurement Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)

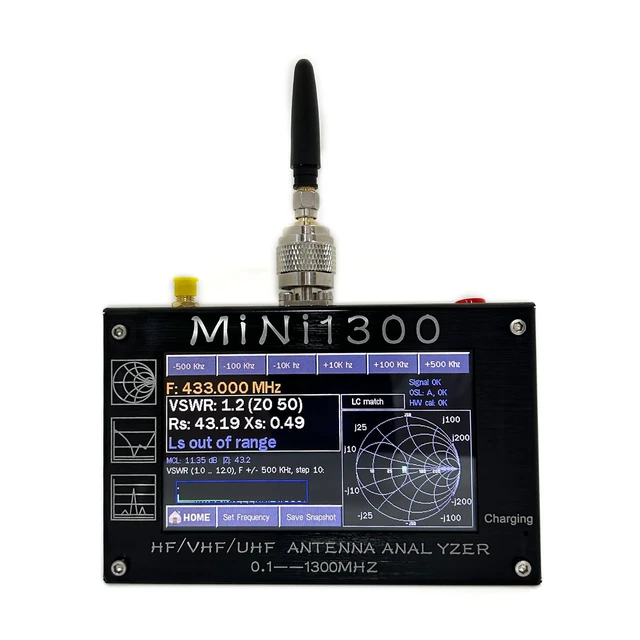

- Display Modes: Numerical display, curve display, simith chart
- Connector Type: UHF N-type connector
- VNA: SMA

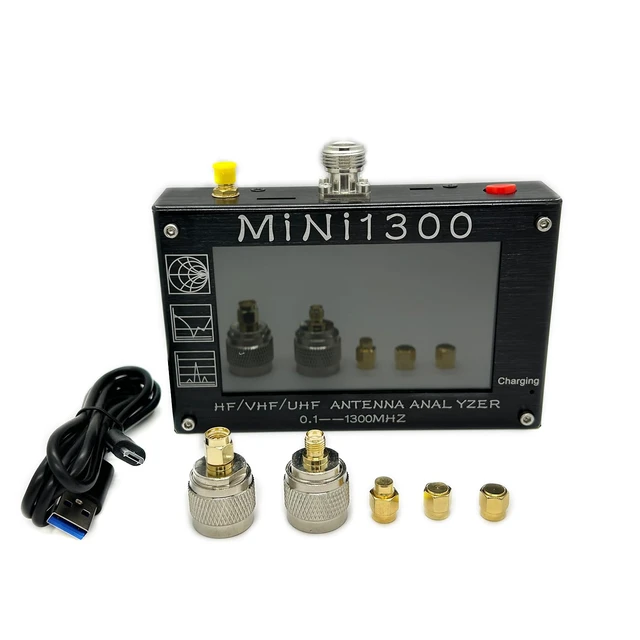

- SMA OPEN-SHORT-LOAD Calibration Kit x 1
- LCD size: 480x272 4.3" TFT LCD display
- Touch Screen Type: Capacitive
- All capacitive touchscreen on the display no buttons are needed
- Power Source: USB or Internal Power Supply
- Built-in charging circuitry and DC-DC booster
- Maximum charging current: 5V/1.5A
- External Storage Method: TF card
- Dimensions: 135*85*30 mm (Not including the size of prominent ports)
