Kramer 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA

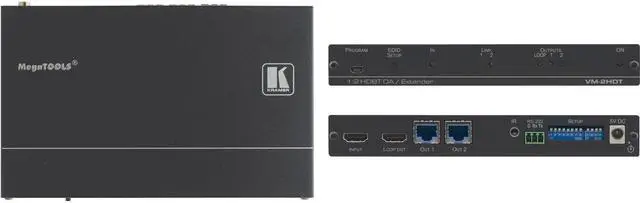

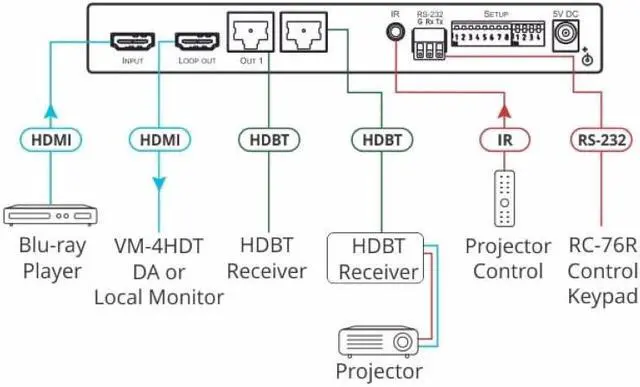

VM-2HDT is a high-quality, long-reach 1:2 HDBaseT extender distributor that takes one HDMI input, with IR and RS-232 control signals, converts it to an HDBaseT extension line signal and distributes it to 2 HDBaseT outputs that connect to compatible HDBaseT receivers such as TP-580R. VM-2HDT distributes signals with resolutions of up to 4K@60Hz (4:2:0), and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

• High Performance Distribution - Distributes one HDMI signal to two long-reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
• Extension-line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions.
• Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
• HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
• User-Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
• Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.

Applications

• Distribution of native extended AV signals in large rooms
• Presentation and multimedia rich applications in large boardrooms and meeting rooms
• Applicable for corporate, education, hospitality, government market segments

Features

* Package Contents: <ul> <li>1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA</li> <li>Power Supply</li> </ul><br /> * Product Type: Video Extender Transceiver<br /> * Product Type: Video Extender Transceiver<br /> * Limited Warranty: 7 Year<br /> * Connectivity Technology: Wired<br /> * Form Factor: Rack-mountable<br /> * Connectivity Technology: Wired<br /> * Form Factor: Rack-mountable<br /> * Product Model: VM-2HDT<br /> * Product Name: 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA<br /> * Product Line: MegaTOOLS<br /> * Brand Name: Kramer<br /> * Brand Name: Kramer<br /> * Maximum Operating Distance: 229.66 ft<br /> * Number of Network (RJ-45) Ports: 2<br /> * Number of USB Ports: 1<br /> * Product Family: MegaTOOLS<br /> * Number of HDMI Inputs: 1<br /> * Media T
