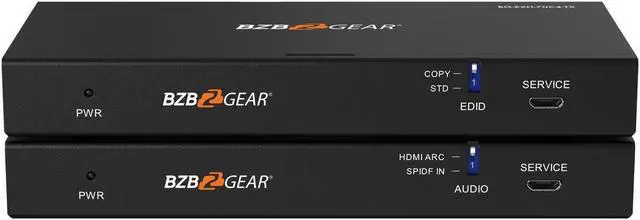

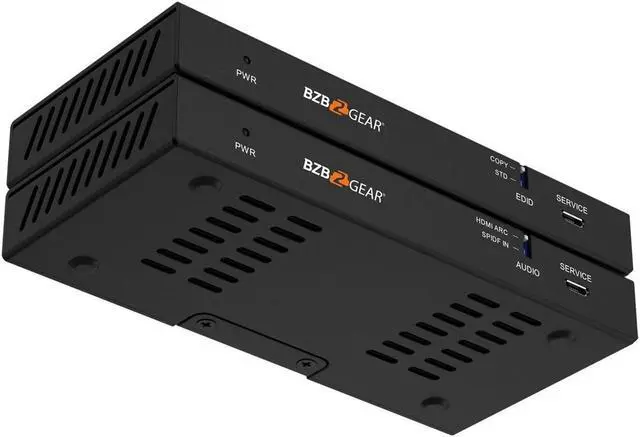

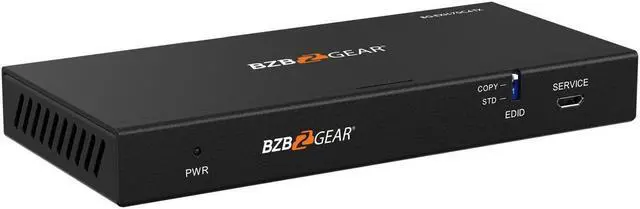

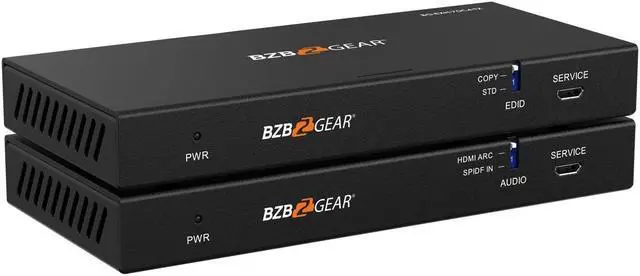

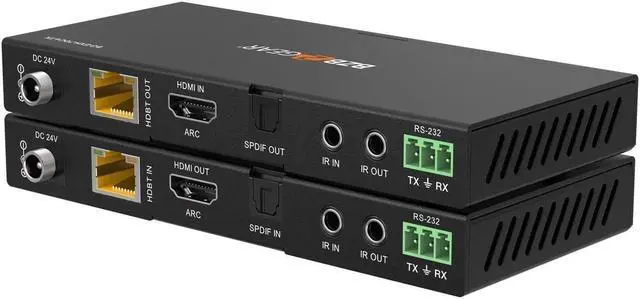

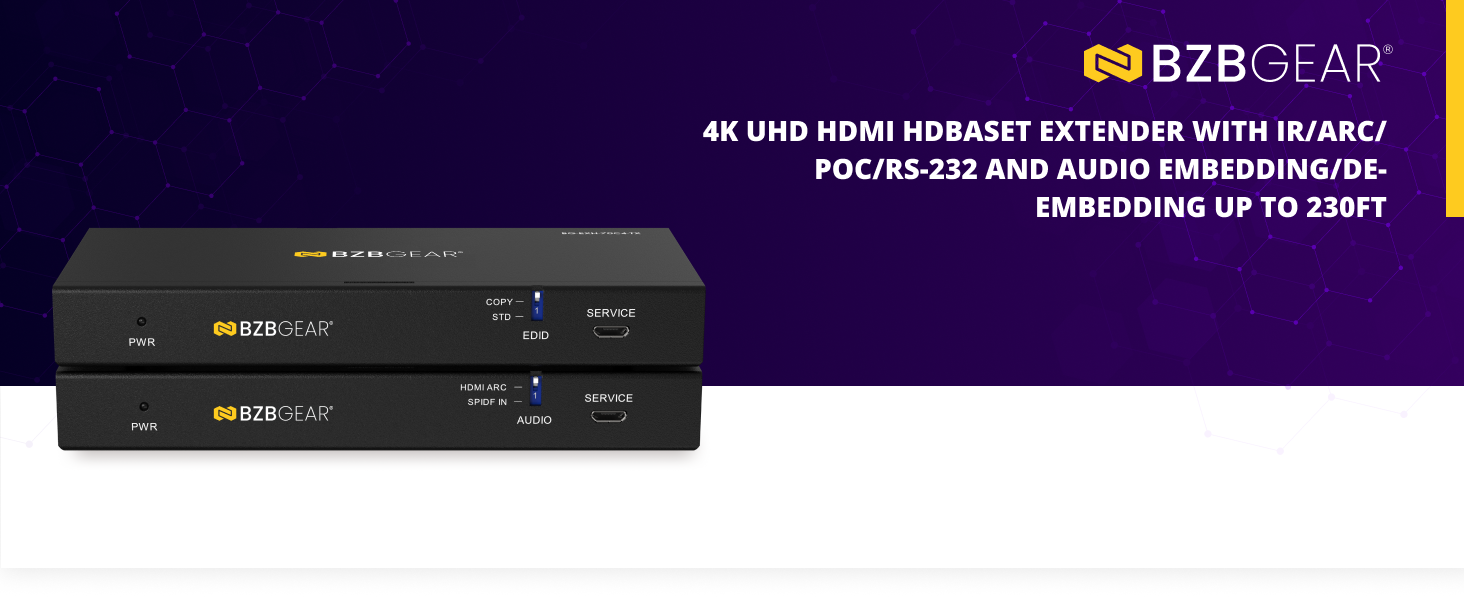

BZBGEAR 4K UHD HDMI HDBaseT Extender with IR/ARC/PoC/RS-232 and Audio Embedding/De-embedding up to 230ft

Introducing the BG-EXH-70C4, the ultimate solution for extending your HDMI signals over a long distance of up to 70m / 230ft. This extender is a highly efficient device that converts your HDMI signal to standard HDBaseT and transmits it via single CAT5e/6 ethernet cable.

With a bandwidth of 18Gbps, the device is compliant with HDMI 2.0b and HDCP 2.2 standards. The video resolution that can be achieved using this extender is up to 4K2K@60Hz RGB/YCBCR 4:4:4, which ensures that you enjoy crystal clear images and vibrant colors.

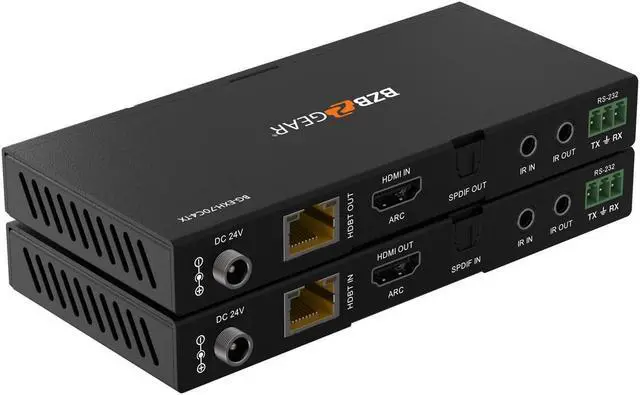

The BG-EXH-70C4 also supports bi-directional IR and RS-232 control signal pass-through, which enables you to easily control signal source or display devices from a remote location. Additionally, the device supports ARC functionality, which makes it possible to transmit audio signals from your TV back to your home theater system without the need for an extra cable.

This extender also supports PoC (Power over Cable) functionality, which means that you need to plug the power source only from one side for the extender kit to work. Moreover, the BG-EXH-70C4 comes equipped with advanced EDID management, which ensures that your video source always communicates with your display device seamlessly.

In terms of audio support, the device can handle various formats, including Dolby 5.1, DTS 5.1, and PCM2.0, etc. Lastly, the compact design of this device ensures that it can be easily and flexibly installed, making it an ideal solution for any home or office.

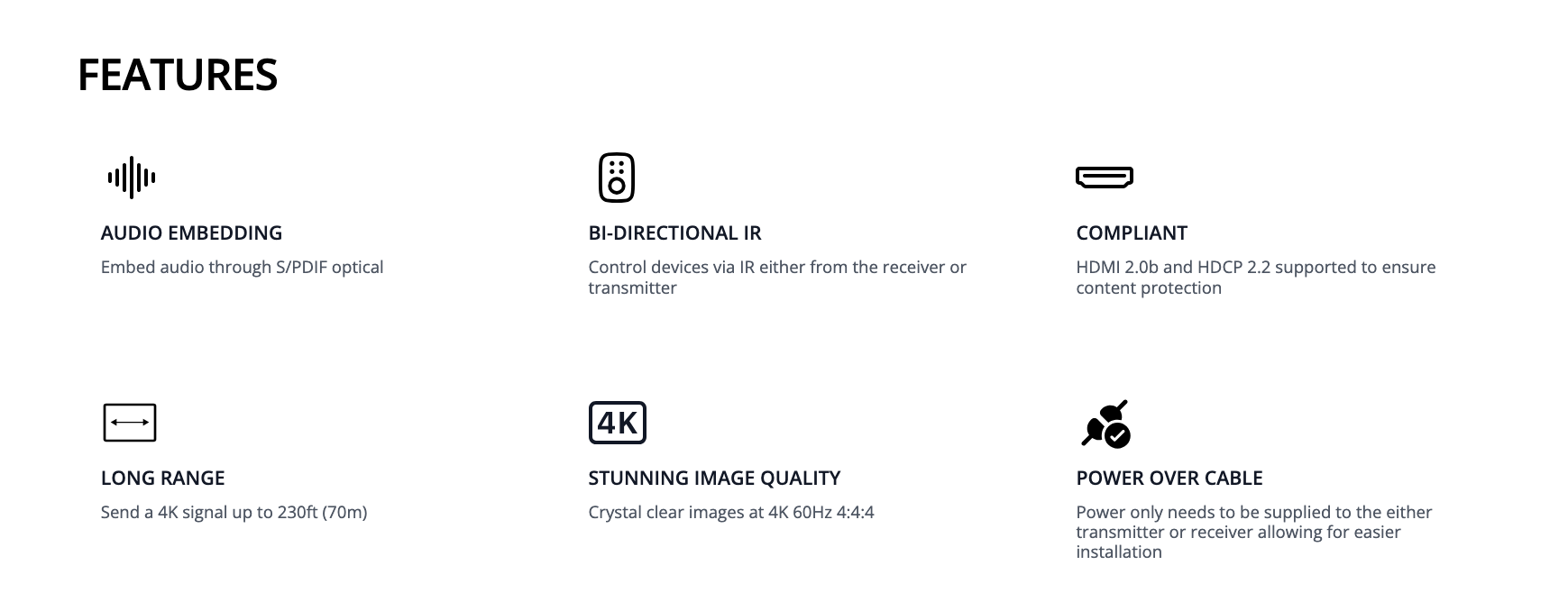

Features:

• Stunning Image Quality - Crystal clear images at 4K 60Hz 4:4:4
• Audio Embedding - Embed audio through S/PDIF optical
• Bi-Directional IR - Control devices via IR either from the receiver or transmitter
• Compliant - HDMI 2.0b and HDCP 2.2 supported to ensure content protection
• Long Range - Send a 4K signal up to 230ft (70m)
• Power Over Cable - Power only needs to be supplied to the either transmitter or receiver allowing for easier installation
• Audio Formats:
  HDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master
  Optical: Dolby 5.1, DTS 5.1, PCM 2.0
• Rich Colors with HDR, HDR10, HDR10+, Dolby Vision, HLG
• ARC and audio de-embedding through S/PDIF optical port on receiver
