4K UHD HDMI 2.0 Over IP Multicast Transceiver
HDMI 2.0b and HDCP 2.2 | 4K@60Hz Video | High-Quality Audio | User Rights Management
Introducing the BG-IPGEAR-ULTRA 4K60Hz advanced AVoIP kit. Key features of the BG-IPGEAR-ULTRA series include HDMI 2.0b and HDCP 2.2 compliance, support for video resolutions up to 4K60Hz (4:4:4), and a video bandwidth of 18Gbps. Audio formats support LPCM 2.0CH at 48kHz. The integrated design of the encoder and decoder supports both fiber and copper connections, with a window roaming function that allows a decoder unit to process up to 16 signals for arbitrary windowing, roaming, overlaying, and splicing. The system supports KVM seat management, universal H.264/265 protocol, high-definition background images, multi-screen splicing, scrolling subtitles, character overlay, point-to-point signal extension, signal distribution, multicast mode, matrix, and video wall functions over a 1G Network Switch.
HDMI 2.0b and HDCP 2.2
Ensures seamless integration with the latest video standards
4K@60Hz Video
Delivers stunning image quality with support for up to 18Gbps video bandwidth
High-Quality Audio
Supports LPCM 2.0CH 48kHz for clear and precise audio output
User Rights Management
Offers secure and flexible control access for authorized users
Splicing and Window Roaming
Supports high-definition background images, multi-screen displays, scrolling subtitles, and character overlay for advanced visual presentations; allows a single decoder unit to process up to 16 signals, enabling windowing, roaming, overlaying, and splicing for dynamic displays
Audio Embedding/De-Embedding
Provides flexible audio management capabilities for embedding and extracting audio
Universal H.264/265 Protocol
Ensures seamless integration with IPC and security camera systems
Signal Extension and Distribution
Facilitates point-to-point extension, multicast mode, matrix, and video wall functions over a 1G network switch
Transceiver Flexibility and POE
Compatible with both fiber and copper connections for versatile installation options; features standard 802.3af Class 3, PD mode for power over Ethernet
Central Control and Visual Mode
Includes integrated RS-232 control and mobile app support for comprehensive system management; provides a comprehensive view of signal sources, screen status, scene preview, and environmental control
HDMI Local Loop-Out
The encoder supports HDMI local loop-out for additional display needs
KVM Seat Management
Supports both one-to-one and one-to-many configurations, allowing efficient PC management
Connection Diagram
A PC and a media box connect by HDMI to BG-IPGEAR-ULTRA units set as encoders. Every unit links over CAT cable to a POE network switch, with a BG-IPGEAR-ULTRA-C also attached to the switch. Decoder units send HDMI to the displays and USB to a keyboard and mouse.

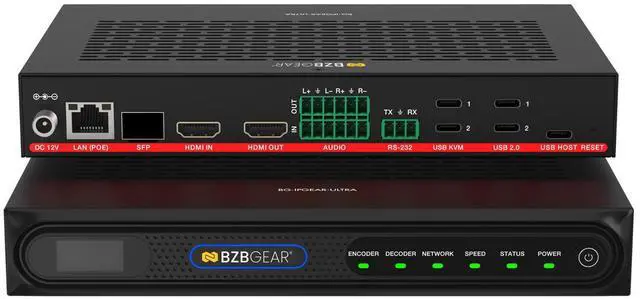

Front and Rear Panels
1. OLED display screen
2. ENCODER LED
3. DECODER LED
4. NETWORK LED
5. SPEED
6. STATUS LED
7. POWER LED
8. POWER button - The power button supports power-off memory function
9. DC 12V - DC 12V/2.5A power input port
10. LAN (POE) - port: 1G copper port
11. SFP port - 1G fiber port, connected to Switch
12. HDMI IN port - HDMI signal input port
13. HDMI OUT - port: HDMI signal output port
14. AUDIO IN - port: Stereo balanced line input port
15. AUDIO OUT - port: Stereo balanced line output port
16. RS-232 port - RS-232 serial port
17. USB KVM: USB device ports, connected to keyboard and mouse in DEC mode.
18. USB 2.0 - Connect to a USB flash drive or other USB devices
19. USB HOST - USB Host port, connected to computer in ENC mode
20. RESET - button: System reset button
| HDMI Compliance | HDMI 2.0b |
|---|---|
| HDCP Compliance | HDCP 2.2 |
| Video Compression Standard | H.264/H.265 |
| Video Bandwidth | 18Gbps |
| Network Port | 1000M Base-T (supporting POE) |
| Video Resolution | 1024x768 ~ 3840x2160@60Hz (Note: The decoder supports custom resolution output.) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8/10/12bit |
| Encoding Sampling Rate | 48KHz |
| HDMI Audio Formats | LPCM 2.0CH, 16bit, 48k |
| Analog Audio Formats | Left and right stereo analog audio |
| ESD Protection | Human-body Model: +/-8kV (Air-gap discharge), +/-4kV (Contact discharge) |
| Input | 1x HDMI IN [Type A, 19-pin female]; 2x AUDIO IN [3-pin phoenix connector, stereo balanced linear interface] |
| Output | 1x HDMI OUT [Type A,19-pin female]; 2x AUDIO OUT [3-pin phoenix connector, stereo balanced linear interface] |
| Control | 1x LAN (POE) [RJ45, supporting POE]; 1x RS-232 [3-pin phoenix connector]; 1x USB HOST [USB Type-C]; 2x USB KVM [USB Type-C]; 2x USB 2.0 [USB Type-C]; 1x SFP [Fiber slot] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions (W x D x H) | 8in x 5.2in x 1.2in [204mm x 132mm x 30mm] |
| Weight | 1.7 lbs [760g] |
| Power Supply | Input: AC 100 - 240V 50/60Hz; Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 5.4W |
| Operating Temperature | 0 C ~ 40 C / 32 F ~ 104 F |
| Storage Temperature | -20 C ~ 60 C / -4 F ~ 140 F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Package Contents | 1 x H.264/H.265 4K60 AV over IP Transceiver; 2 x 6pin-3.81mm Phoenix Connector (male); 1 x 3pin-3.81mm Phoenix Connector (male); 1 x 12V 2.5A Locking Power Supply; 2 x Mounting Ear; 4 x Machine Screw (M3*4); 1 x User Manual |
