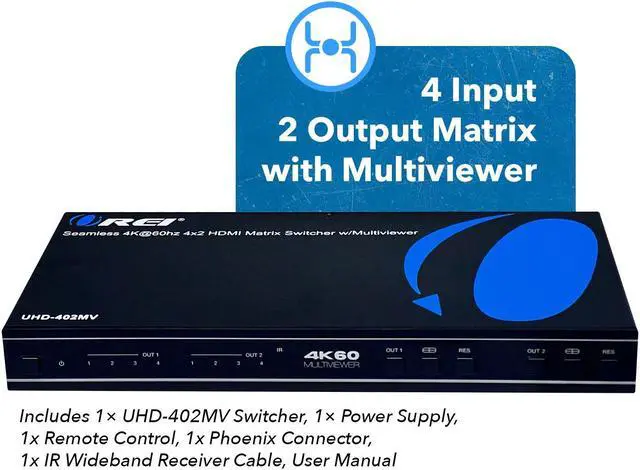

4K Quad Multi-Viewer 4x2 Seamless Switch (UHD-402MV)
- HDMI 2.0b, HDCP 2.2, and HDCP 1. x compliant
- 18Gbps uncompressed bandwidth, input and output resolution up to 4K2K@60 4:4:4 and 2K@60Hz
- HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- Supports seamless switching between input channels
- Combined multiple images and independent layouts to display on two UHD TVs

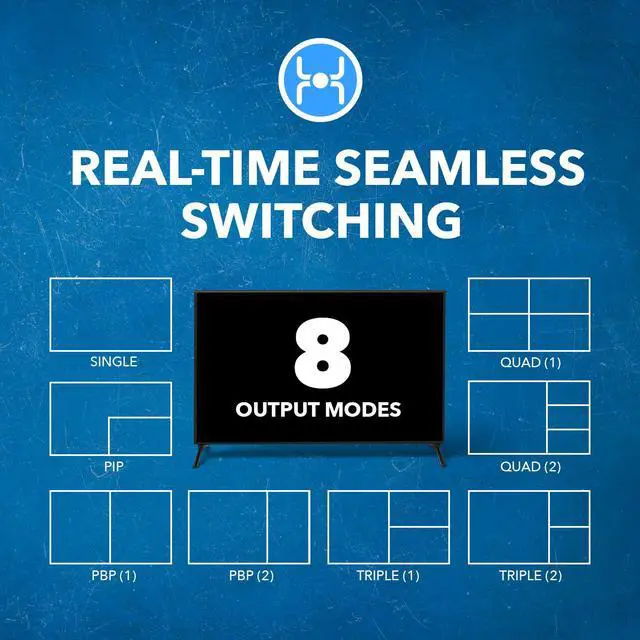

- Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
- Audio de-embedding via analog and optical fiber audio ports
- Control via front panel buttons, IR remote, OSD menu navigation, controller software, RS-232 commands
- Each output port supports the scaler function
- Supports independent audio selection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

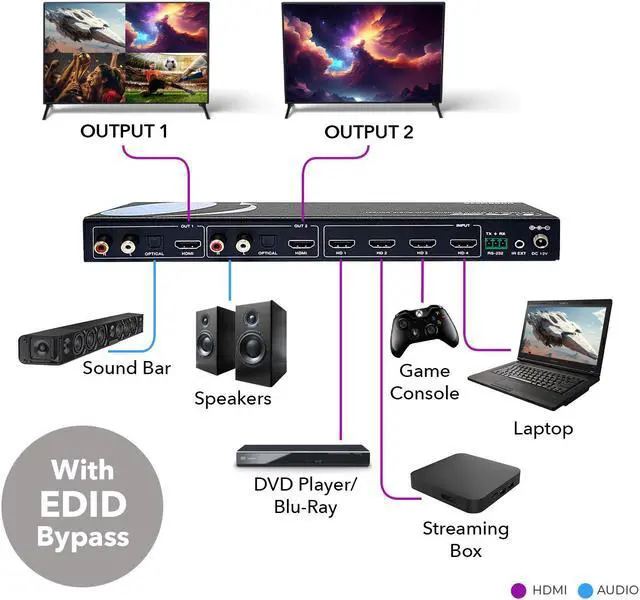

The UHD-402MV was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on two screens. It can accept 4 HDMI input digital sources and combine four video signals onto two HDMI UHD or HD monitors independently. Users can manage each input, and create combinations of the four inputs on two displays, as well as adjust the position of any input. This product supports 8 display modes, within the mode range, users can freely switch between 4-channel HD input signals. It can display a single source or a multiview display on a single screen.
This product supports the full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. This Matrix Switcher can be controlled via front panel buttons, IR remote, OSD menu navigation, controller software, and RS-232 commands.
This product supports the full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems. This Matrix Switcher can be controlled via front panel buttons, IR remote, OSD menu navigation, controller software, and RS-232 commands.
