Up to 328ft VGA USB KVM Extender With Stereo Audio 100m VGA KVM Extender Over Cat5 Cat5e/6 Cable No Delay&Loss VGA Video Transmitter
- Transmits VGA video and audio signal up to 100m/328ft over CAT5/5e/6 cable
- Support video resolution up to 1920*1440@60Hz.
- Compliance with VGA standard.
- Uncompress,no delay,no loss.
- Support VGA loop out function.
- Support keyboard and mouse signal transmission
- High compatibility, can auto-match source and display device.
- Built-in automatic adjustment system, make the image smooth, clear and stable.
- Built-in ESD protection system.

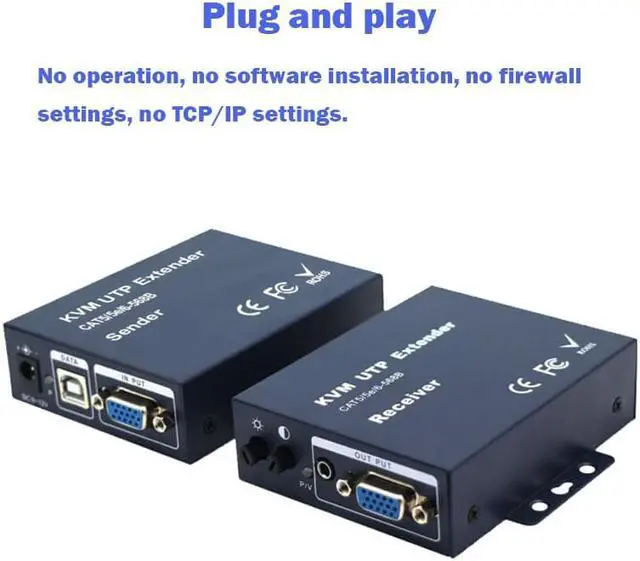

- Simple to install, plug and play.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:

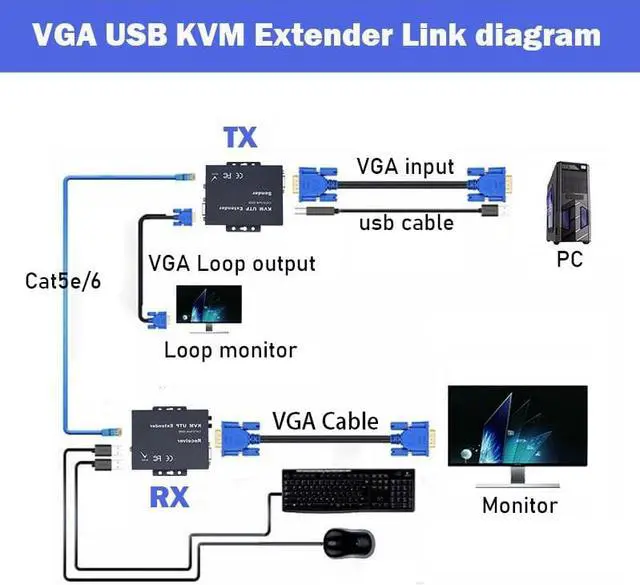

VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5/5e/6 cable, it supports high resolution up to 1920*1440@60Hz and keyboard/mouse signal (HID signal) and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits VGA video and audio signal up to 100m/328ft over CAT5/5e/6 cable
Support video resolution up to 1920*1440@60Hz.
Compliance with VGA standard.
Uncompress, no delay, no loss.
Support VGA loop out function.
Support keyboard and mouse signal transmission
High compatibility, can auto-match source and display device.
Built-in automatic adjustment system, make the image smooth, clear and stable.
Built-in ESD protection system.
Simple to install, plug and play.
Note:
We cancel the audio port transmission function, please remember that before buy it.
Specifications:

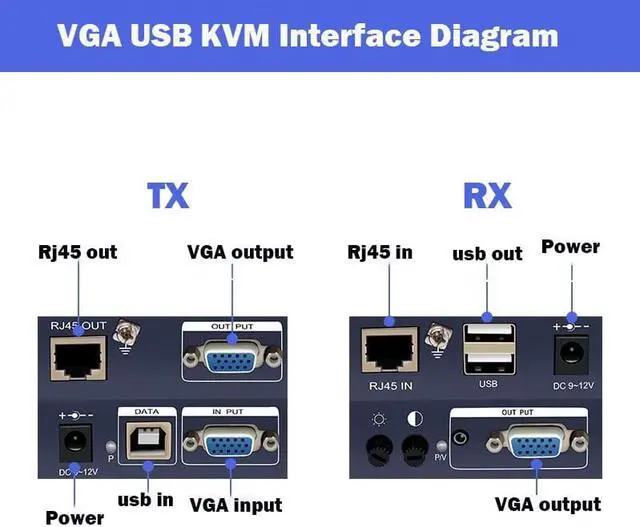

· Local Unit Host
Connection Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Male/Female 15-pin HD connector for computer connection
Local Access
Crisp and clear 1920x1440@60Hz video resolution.
Female 15-pin HD connector for local VGA monitor ·
Remote Unit
Supports resolutions up to 1920x1440@60Hz; refer to the resolution chart below for resolutions at different lengths.
Female 15-pin HD connector.
Optional 3.5 mm stereo audio connection.
· Video Quality Adjustment
Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.
Test Pattern for Cable Length ·
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
· Dimensions
WxDxH (mm): 95*97*28mm ·
Power
220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
Power Consumption: 6W (each - local and remote unit).
Use the PWR-48V-9V0, 6A or PWR-12V-9V0, 6A DC-DC power converter to install the local unit in a Telecom environment.
Package Included:

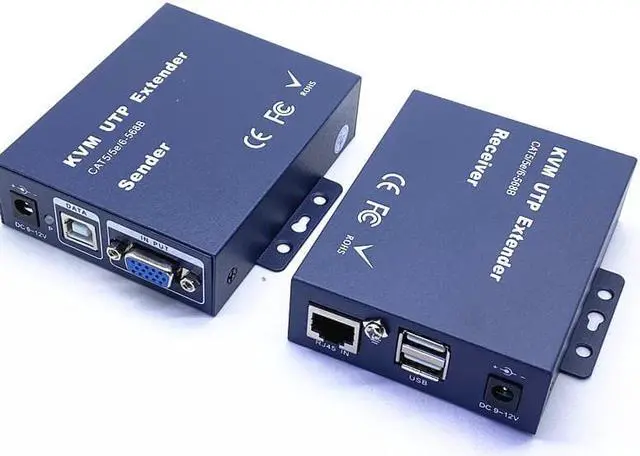

1 x VGA Sender
1 x VGA Receiver
2 x power supplier
1 x User manual
VGA KVM extender provides extension of VGA video audio signal long distances over a single Ethernet RJ45 CAT5/5e/6 cable, it supports high resolution up to 1920*1440@60Hz and keyboard/mouse signal (HID signal) and external stereo audio signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Features:
Transmits VGA video and audio signal up to 100m/328ft over CAT5/5e/6 cable
Support video resolution up to 1920*1440@60Hz.
Compliance with VGA standard.
Uncompress, no delay, no loss.
Support VGA loop out function.
Support keyboard and mouse signal transmission
High compatibility, can auto-match source and display device.
Built-in automatic adjustment system, make the image smooth, clear and stable.
Built-in ESD protection system.
Simple to install, plug and play.
Note:
We cancel the audio port transmission function, please remember that before buy it.
Specifications:
· Local Unit Host
Connection Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Male/Female 15-pin HD connector for computer connection
Local Access
Crisp and clear 1920x1440@60Hz video resolution.
Female 15-pin HD connector for local VGA monitor ·
Remote Unit
Supports resolutions up to 1920x1440@60Hz; refer to the resolution chart below for resolutions at different lengths.
Female 15-pin HD connector.
Optional 3.5 mm stereo audio connection.
· Video Quality Adjustment
Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.
Test Pattern for Cable Length ·
Environmental
Operating temperature: 32°F to 100°F (0°C to 38°C).
Storage temperature: -20°F to 140°F (-30°C to 60°C).
Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
· Dimensions
WxDxH (mm): 95*97*28mm ·
Power
220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
Power Consumption: 6W (each - local and remote unit).
Use the PWR-48V-9V0, 6A or PWR-12V-9V0, 6A DC-DC power converter to install the local unit in a Telecom environment.
Package Included:
1 x VGA Sender
1 x VGA Receiver
2 x power supplier
1 x User manual
