1 TX and 1 RX kit,LKV383Matrix-4.0 1080P HDMI Extender with IR 394ft /120M Over Single Cat5 /Cat6 /Cat7 Ethernet Network and LAN Router/Switcher for HD STB,DVD,PS3, etc Supports TCP/IP by Ethernet

LKV383Matrix- 4.0

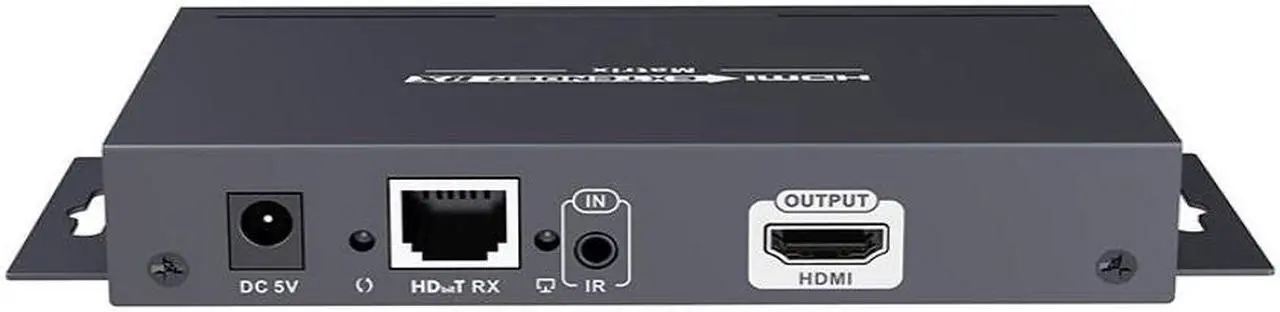

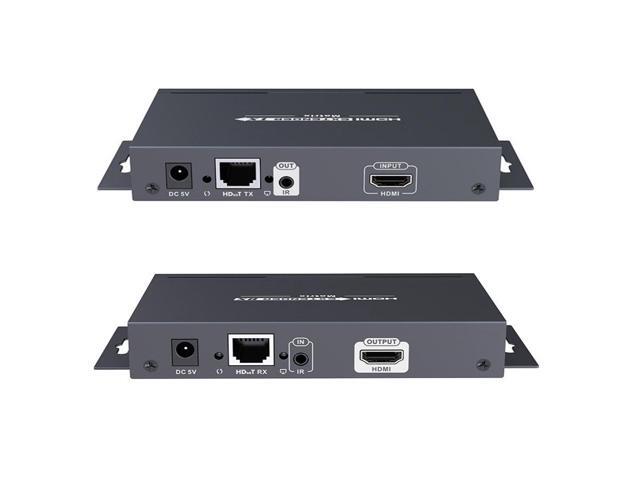

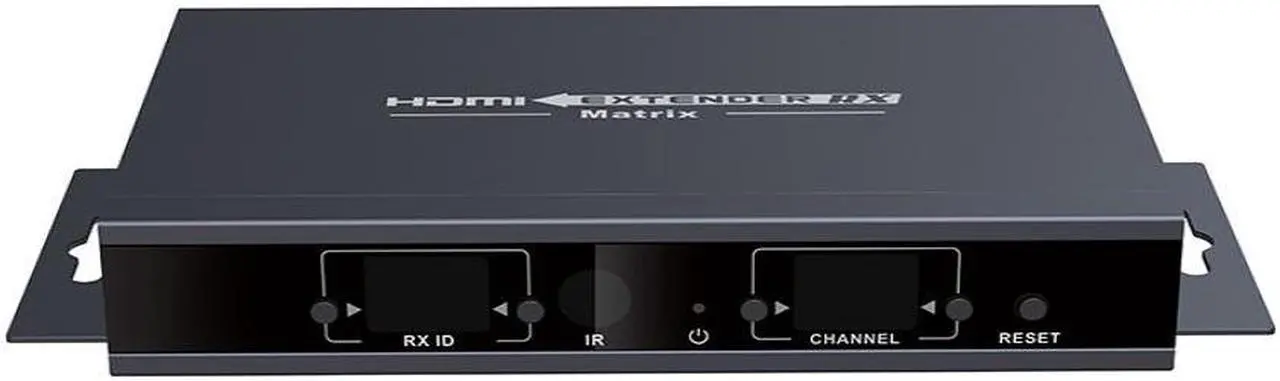

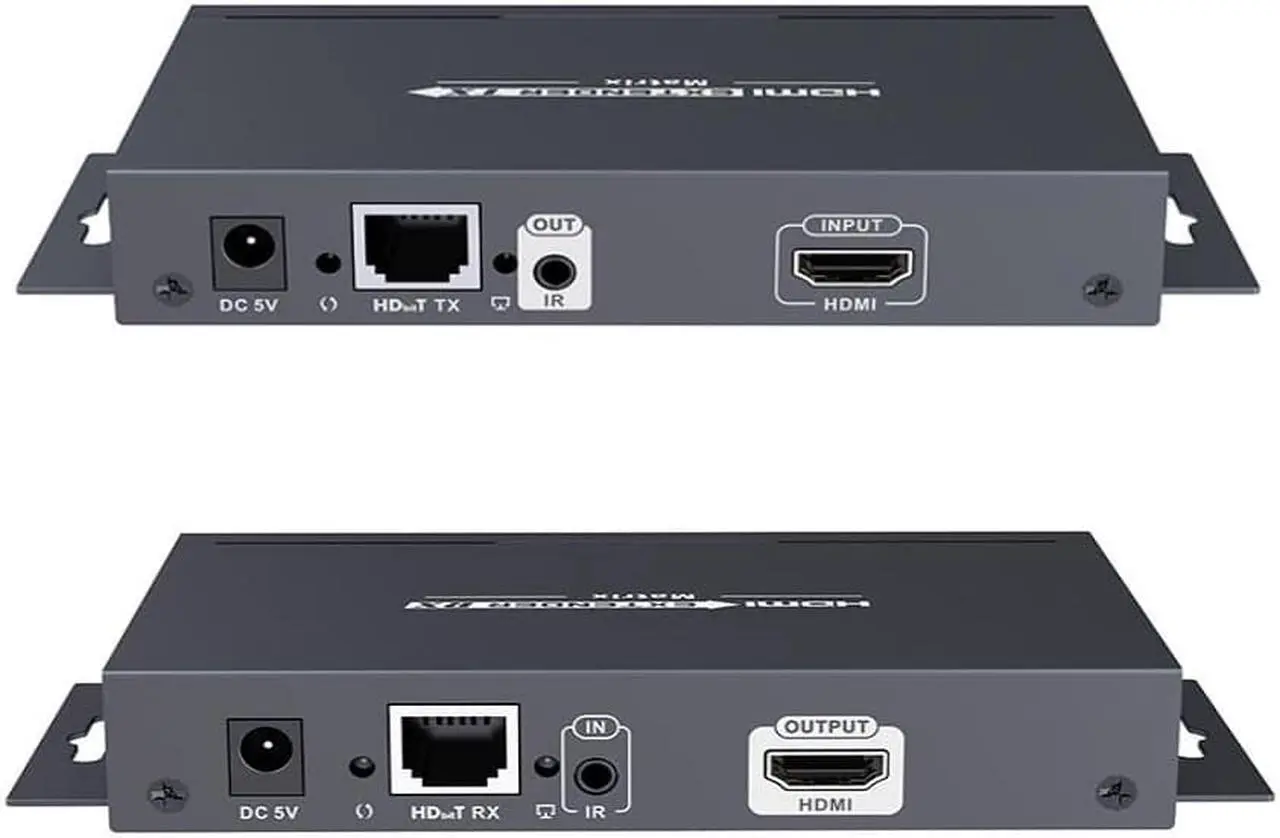

This item is a set extender, includes 1 transmitter and 1 receiver.

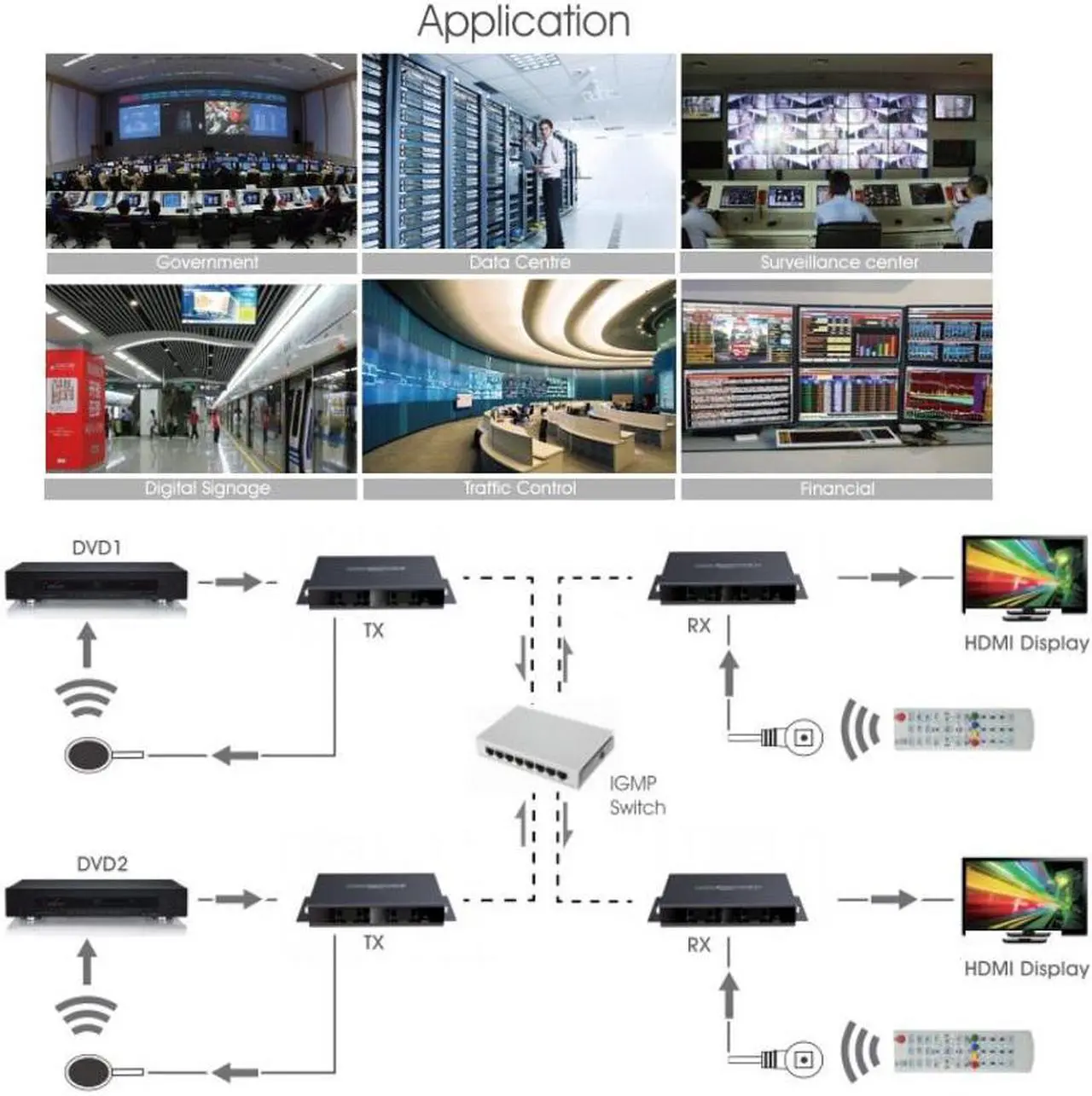

This HDMI video matrix over IP includes a transmitter unit (TX) and a receiver unit (RX). It allows for the distribution and switching of high definition video/audio signal by this product and off-the-shelf IGMP switch. It applied advanced technology, the resolution supported is 1080P 60Hz. It can also used in a point-to-point connection, the distance is up to 120 meters. It is widely applied in digital signage advertisement, control room, command centers, entertainment and exhibition center, safety monitoring system, etc.

Description
Features:
1. Plug and play.
2. Apply advanced over IP technology.
3. Transmission distance is up to 120 meters via CAT6.
4. Resolution supported is up to 1080P.
5. Support IR pass back function to control source device from RX location.
6. Support computer control software to select and switch source device input.
7. Support scalable and flexible input-output matrix configuration, allows 100 inputs to infinite output.
8. Support to select and switch source device input from receiver via remote control and hard button.
9. Support APP control, user can scan, preview, build up their configuration by using a phone/tablet easily.

Package Included:
1 x HDMI V 4.0 Transmitter (Tx)
1 x HDMI V 4.0 Receiver (Rx)
1 x IR Blaster cable
1 x IR Receiver cable
2 x Power supply
1 x User manual
