1 TX and 4 RX kit, LKV383 V4.0 1080P HDMI Extender with IR 394ft /120M Over Single Cat5 /Cat6 /Cat7 Ethernet Network and LAN Router/Switcher for HD STB,DVD,PS3, etc Supports TCP/IP by Ethernet
- This item is a set of 1 TX and 4 RX,includes one transmitter and four receivers.
- This unit is LKV383 V4.0,it is not compatible with LKV383 or LKV383(V3.0)
- HDMI signal extender over single CAT5/5e/6 cable.
- 120m/394ft HDMI Extender over IP with IR pass-through.
- Compatible with existing network, not affect Internet
- Extend and split by LAN. Plug and play
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

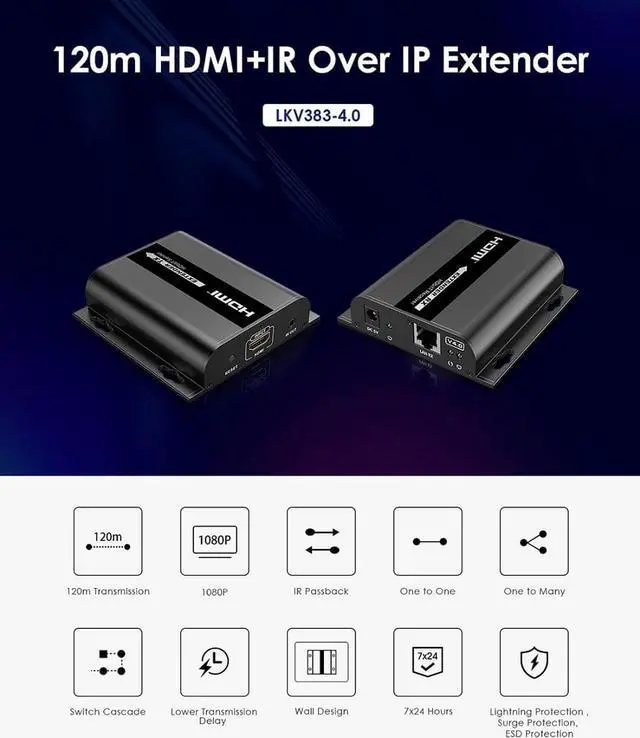

LKV383 V4.0 HDMI Extender
This item is a set of 1 TX and 4 RX,includes one transmitter and four receivers.
Features:

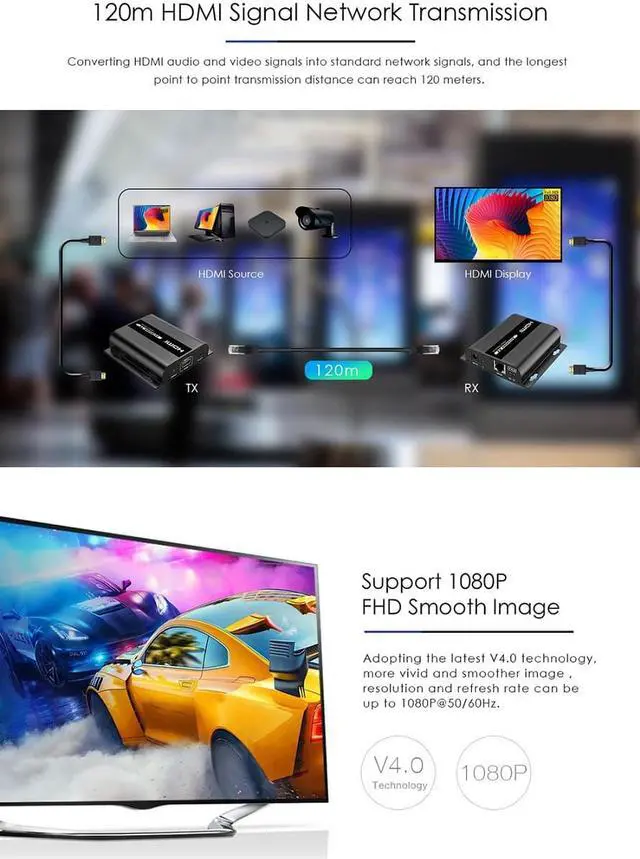

1. 120m/394ft HDMI Extender over IP with IR pass-through.
2. HDMI signal extender over single CAT5/5e/6 cable.

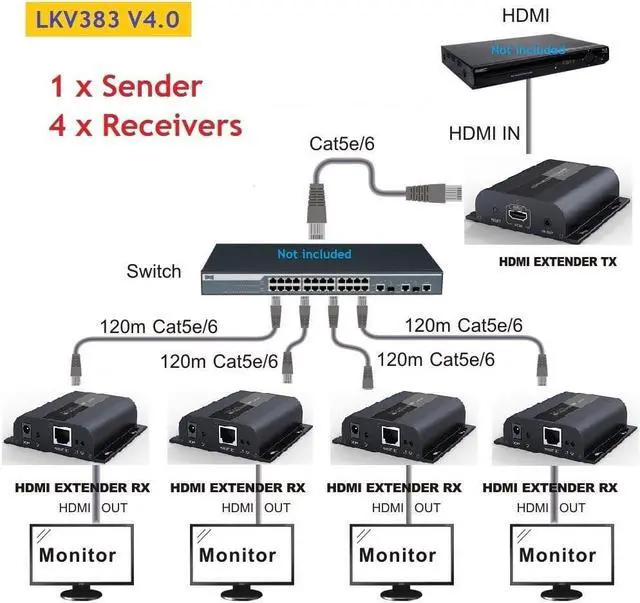

3. Extend and split by LAN (delivery by Router/switch).
4. Compatible with existing network, not affect Internet.
5. Plug and play without any manual setting.
Specifications Items: Specifications
HDMI signal: Compatible with HDCP
Network cable: UTP/STP Cat5/5e/6
Support resolution: 480i/p@60Hz 576i/p@50Hz 720p@50Hz/60Hz 1080i/p@50Hz/60Hz
IR remote control: Supports 20~60kHz IR devices
Transmission length: Up to 120 meters transmission distance for 1080p 60Hz Full HD over signal CAT6
Power supply: DC5V1A
Package contents
Power consumption: TX: <3.5W; RX: <3W
Production dimension: 95(W)*95(D)*25(H)mm *2PCS
Installation Requirement
1. HDMI source device (Computer graphics card, DVD, PS3, HD monitoring equipment etc)
2. HDMI display device like SDTV, HDTV and projector with HDMI port.
3. UTP/STP cat5/5E/6 cable.
4. Follow standard IEEE-568B
Important Safety Instructions
1.Do not mix up HDMI EXTENDER sender and HDMI EXTENDER receiver, and the IR blaster and IR receiver.
2. Do not plug-in/out the cables, when it is working.
3. Use DC5V power supply only. Make sure specification matched if using 3rd party DC adapters.
Package contents
1. HDMI extender V4.0 sender TX* 1pc
2. HDMI extender V4.0 receiver RX* 4pcs
3. IR blaster extension cable* 1pc
4. IR receiver extension cable* 4pcs
5. User manual
6. Power adapter: DC 5V/1A* 5pcs
This item is a set of 1 TX and 4 RX,includes one transmitter and four receivers.
Features:
1. 120m/394ft HDMI Extender over IP with IR pass-through.
2. HDMI signal extender over single CAT5/5e/6 cable.
3. Extend and split by LAN (delivery by Router/switch).
4. Compatible with existing network, not affect Internet.
5. Plug and play without any manual setting.
Specifications Items: Specifications
HDMI signal: Compatible with HDCP
Network cable: UTP/STP Cat5/5e/6
Support resolution: 480i/p@60Hz 576i/p@50Hz 720p@50Hz/60Hz 1080i/p@50Hz/60Hz
IR remote control: Supports 20~60kHz IR devices
Transmission length: Up to 120 meters transmission distance for 1080p 60Hz Full HD over signal CAT6
Power supply: DC5V1A
Package contents
Power consumption: TX: <3.5W; RX: <3W
Production dimension: 95(W)*95(D)*25(H)mm *2PCS
Installation Requirement
1. HDMI source device (Computer graphics card, DVD, PS3, HD monitoring equipment etc)
2. HDMI display device like SDTV, HDTV and projector with HDMI port.
3. UTP/STP cat5/5E/6 cable.
4. Follow standard IEEE-568B
Important Safety Instructions
1.Do not mix up HDMI EXTENDER sender and HDMI EXTENDER receiver, and the IR blaster and IR receiver.
2. Do not plug-in/out the cables, when it is working.
3. Use DC5V power supply only. Make sure specification matched if using 3rd party DC adapters.
Package contents
1. HDMI extender V4.0 sender TX* 1pc
2. HDMI extender V4.0 receiver RX* 4pcs
3. IR blaster extension cable* 1pc
4. IR receiver extension cable* 4pcs
5. User manual
6. Power adapter: DC 5V/1A* 5pcs
