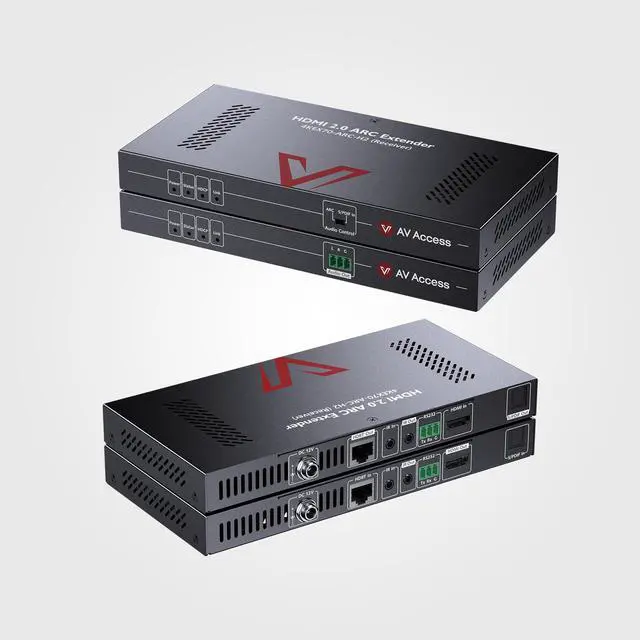

4K HDMI Extender with ARC, HDBaseT Extender Audio Return Channel, S/PDIF Audio Pass Through, 2-Way IR, CEC, PoC & RS232, Ideal for Home Theater
- Audio Return Channel: Audio DIP switch control on receiver: ARC & S/PDIF allows ARC function or Audio pass through accordingly. Fully supports audio formats in HDMI ARC & S/PDIF specification, DD/DTS 5.1CH and PCM 2.0 via ARC or S/PDIF.
- HDBaseT 2.0 & HDMI 2.0: Signals without degradation. HDMI Extender Supports 4K@60Hz 4:4:4 8-bit and 4K@60Hz 4:2:2 10/12-bit and 4K@60Hz 4:2:0 10/12-bit up to 40m(130ft) or 1080p up tp 70m(230ft) over Cat5e/6/7 cable. HDCP2.2 compliant and with 18Gbps bandwidth can supports HDR10.
- Advanced PoE/CEC/IR & RS-232 extension: Bi-directional POWER OVER ETHERNET (PoE) - Allows one power adapter to power both the transmitter and receiver. Bi-directional IR Extends IR signal from receiver to transmitter or from transmitter to receiver. CEC (Consumer Electronics Control) and RS232 pass-through.
- Great Compatibility: 4K HDMI Extender works perfectly with Xbox One X, PS4 Pro, Amazon Fire TV 4K, Cisco cable box, Comcast, Vizio TV, SkyQ etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
4KEX70-ARC-H2 is an HDBaseT Extender.

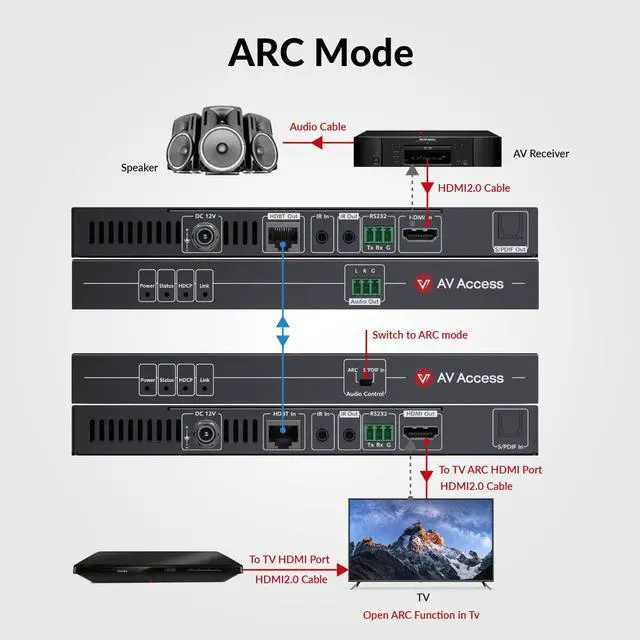

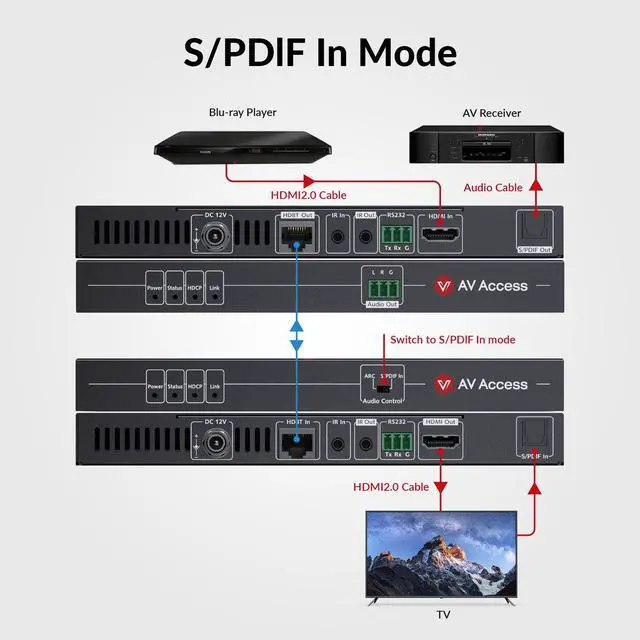

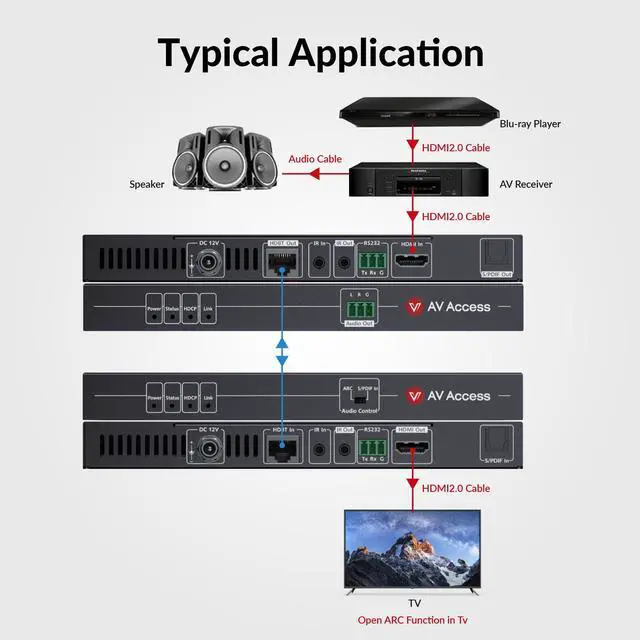

It supports 4K@60 4:4: 4 with HDR and HDCP 2.2 compliant, offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat X cable. By the DIP switch of Audio Output on the receiver, its able to configure the ARC channel feed by TV (with ARC support), or auxiliary S/PDIF Input port. It also supports bi-directional IR pass-through, which enables users controlling the display at transmitter side or control the source at receiver side. This suit also provides an HDMI audio de-embedding with phoenix analog connector. Its proprietary two-way PoC technology, with LED indication for visual power supply to units and signal status to show established connection between connected devices.
Features:
4K/UHD capability @60 Hz with 4:4: 4 Chroma sampling, plus support for HDR formats. HDCP 2.2 compliant.
Supports HD signal transmission up to 60 meters (1080p) and 35 meters (4K@60Hz
YUV 4:4: 4) via a single Cat 5e/6 cable.
Supports HD signal transmission up to 70 meters (1080p) and 40 meters (4K@60Hz
YUV 4:4: 4) via a single Cat 6a/7 cable.
Visual Lossless Compression enables 4K@60 HDR extension over HDBaseT.
Receiver to transmitter audio return via ARC or digital coax pathway.
HDMI audio de-embedding with phoenix analog connector.
Extends RS232, IR control signals.
Support nonstandard bi-directional PoC power supply.

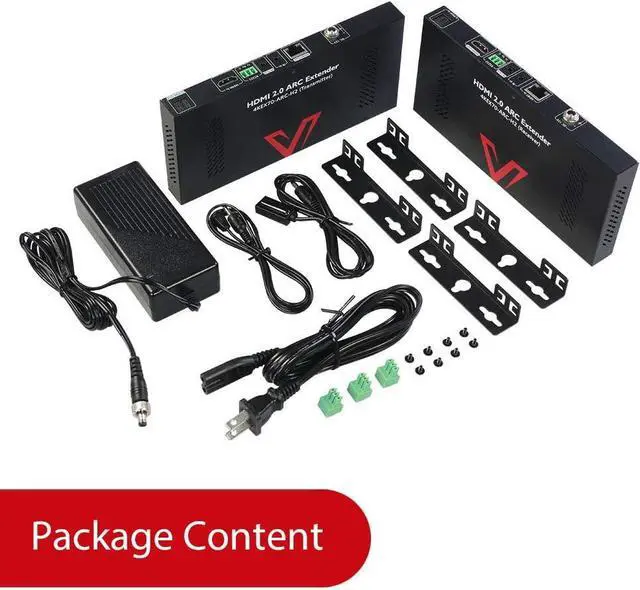

Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x 1

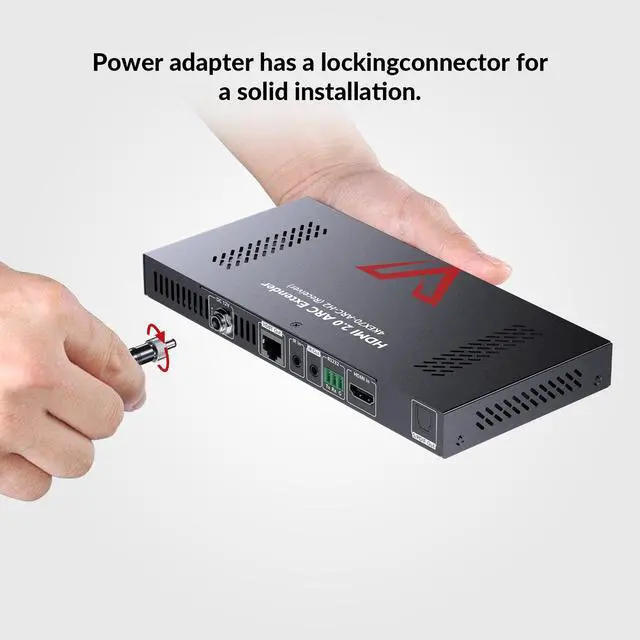

Power Adapter (DC 12V 3A) x 1
IR Emitter x 1
IR Receiver (30 KHz ~ 50 KHz) x 1
Mounting Brackets (with Screws) x 4
User Manual x 1
4KEX70-ARC-H2 is an HDBaseT Extender.
It supports 4K@60 4:4: 4 with HDR and HDCP 2.2 compliant, offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat X cable. By the DIP switch of Audio Output on the receiver, its able to configure the ARC channel feed by TV (with ARC support), or auxiliary S/PDIF Input port. It also supports bi-directional IR pass-through, which enables users controlling the display at transmitter side or control the source at receiver side. This suit also provides an HDMI audio de-embedding with phoenix analog connector. Its proprietary two-way PoC technology, with LED indication for visual power supply to units and signal status to show established connection between connected devices.
Features:
4K/UHD capability @60 Hz with 4:4: 4 Chroma sampling, plus support for HDR formats. HDCP 2.2 compliant.
Supports HD signal transmission up to 60 meters (1080p) and 35 meters (4K@60Hz
YUV 4:4: 4) via a single Cat 5e/6 cable.
Supports HD signal transmission up to 70 meters (1080p) and 40 meters (4K@60Hz
YUV 4:4: 4) via a single Cat 6a/7 cable.
Visual Lossless Compression enables 4K@60 HDR extension over HDBaseT.
Receiver to transmitter audio return via ARC or digital coax pathway.
HDMI audio de-embedding with phoenix analog connector.
Extends RS232, IR control signals.
Support nonstandard bi-directional PoC power supply.
Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x 1
Power Adapter (DC 12V 3A) x 1
IR Emitter x 1
IR Receiver (30 KHz ~ 50 KHz) x 1
Mounting Brackets (with Screws) x 4
User Manual x 1
