Supports 2-Way IR/RS232/PoE/CEC
Economical 4K HDBaseT HDMI Extender
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately. 2. One transmitter can work with only one receiver.3. It is recommended to use a Cat 6 or above cable for optimal picture quality.
4K@60Hz 4:2:0 8bit HDR
HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only).As well as automatic EDID management.
HDMI signal transmit distance
This HDMI extender can transmit 4K@60Hz (4:2:0) HDMI signal up to 40m/131ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable.
Pass through over HDBaseT
Professional HDMI Extender with HDBaseT – Zero-latency, stable transmission for seamless 4K video and network integration

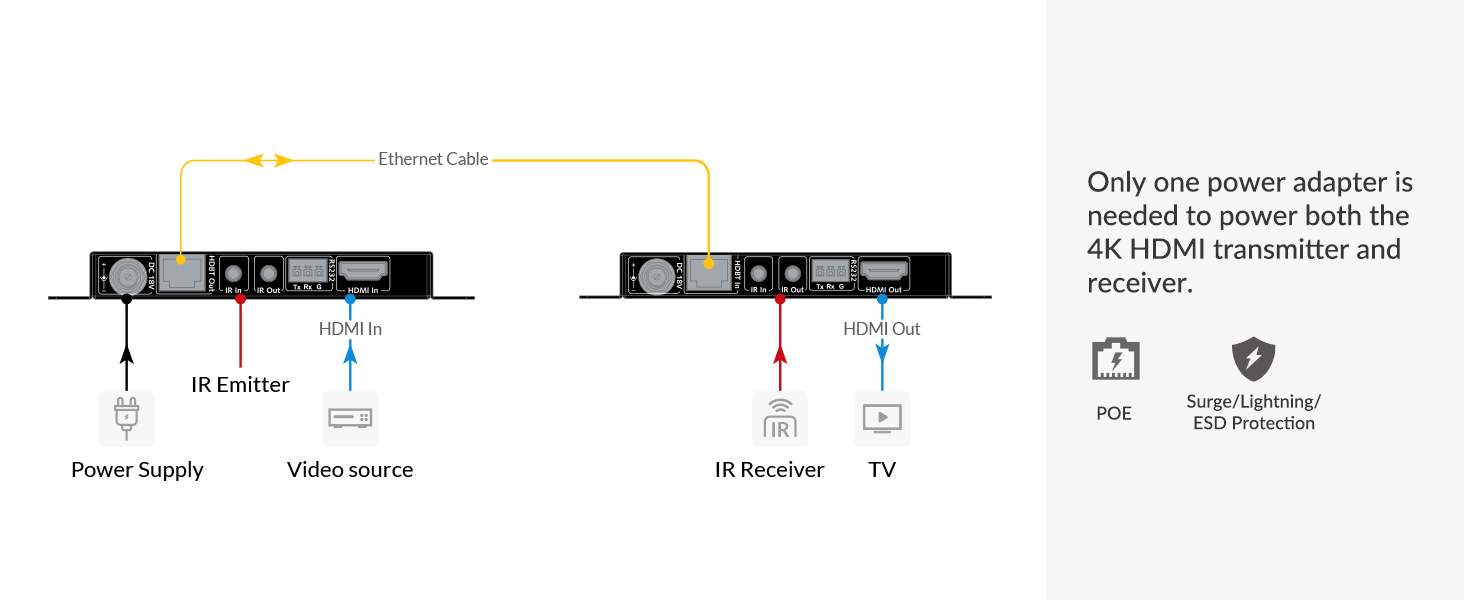

Enabling only 1 power adapter
Threaded power adapter for safety using, connected to either transmitter or receiver to power both units.

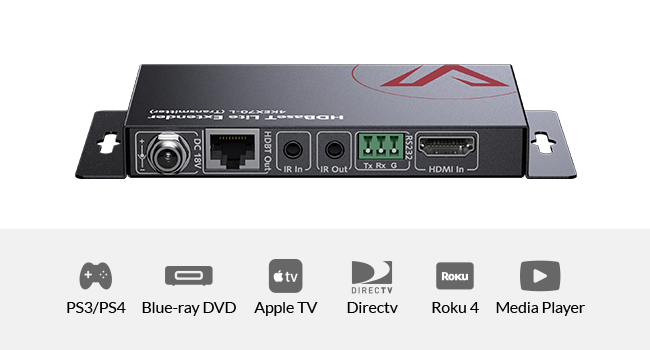

High Compatibility
The extender is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only).
Bi-Directional IR
This cost-effective 4K HDMI extender also supports bi-directional IR pass-through, and comes with an IR signal emitter and an IR receiver. Thus, you can easily control an HDMI source from the display’s location or control the display from the source’s location.
No signal loss or delay
Brings Ultra High Definition Picture
4K@60Hz HDMI signal up to 40m/130ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable.
It can work perfectly
AV receiver, home cinema, speaker, amplifier, etc.
Supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 2.1/5.1/7.1CH
HDMI Extender Comparison
 4KEX70-L |  4KEX70-H2 |  4KEX70L-H2 |  4KEX100-L |  4KEX60-H2 |  4KEX70-ARC-H2 |  HDW100 | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Supported Resolution | 4K@60Hz 4:2:0 8bit | 4K@60Hz 4:4:4 8bit | 4K@60Hz 4:4:4 8bit | 4K@60Hz 4:2:0 8bit | 4K@60Hz 4:4:4 8bit | 4K@60Hz 4:4:4 8bit | 1080@60Hz |
Transmission Range | 4K:cat6a:40m, 1080P: cat6a:70m | 4K:cat6a:40m, 1080P: cat6a:70m | 4K: cat5e: 50m, cat6/6a/7: 70m | 4K:cat6a:100m,1080P:cat5e:100m | 4K: cat6:35m,1080P: cat5e: 50m | 4K:cat6a:40m, 1080P: cat6a:70m | Wireless: 200m, Wired: 120m |
IR Control | ? | ? | ? | ? | ? | ? | ? |
HDMI Version | 1.4 | 2.0 | 2.0 | 1.4 | 2.0 | 2.0 | 1.3 |
HDCP Version | 2.2 | 2.2 | 2.3 | 2.2 | 2.2 | 2.2 | 1.4 |
POE | Bi-Direction | Bi-Direction | Bi-direction PoC | Bi-Direction | Uni-Direction | Bi-Direction | Uni-Direction |
RS232 | ? | ? | ? | ? | ? | ? | ? |
ARC/eARC | × | × | × | × | × | ARC | × |
Wireless Transmission | × | × | × | × | × | × | ? |
Economical 4K HDBaseT HDMI Extender
Notes:
1. This product is a transmitter and receiver kit. We don’t sell them separately. 2. One transmitter can work with only one receiver.3. It is recommended to use a Cat 6 or above cable for optimal picture quality.
4K@60Hz 4:2:0 8bit HDR
HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only).As well as automatic EDID management.
HDMI signal transmit distance
This HDMI extender can transmit 4K@60Hz (4:2:0) HDMI signal up to 40m/131ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable.
Pass through over HDBaseT
Professional HDMI Extender with HDBaseT – Zero-latency, stable transmission for seamless 4K video and network integration
Enabling only 1 power adapter
Threaded power adapter for safety using, connected to either transmitter or receiver to power both units.
High Compatibility
The extender is compatible with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Fire TV 4K, Cisco cable box, Comcast, Xbox One X, PS4 Pro, Vizio TV, Sky Q. HDMI 1.4/HDCP 2.2 compliant with HDR (4K@60hz 4:2:0 chroma subsampling only).
Bi-Directional IR
This cost-effective 4K HDMI extender also supports bi-directional IR pass-through, and comes with an IR signal emitter and an IR receiver. Thus, you can easily control an HDMI source from the display’s location or control the display from the source’s location.
No signal loss or delay
Brings Ultra High Definition Picture
4K@60Hz HDMI signal up to 40m/130ft, and 1080P@60hz up to 70m/230ft over a single Cat 6a/7 cable.
It can work perfectly
AV receiver, home cinema, speaker, amplifier, etc.
Supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master and LPCM 2.1/5.1/7.1CH
HDMI Extender Comparison
4KEX70-L | 4KEX70-H2 | 4KEX70L-H2 | 4KEX100-L | 4KEX60-H2 | 4KEX70-ARC-H2 | HDW100 |
|---|---|---|---|---|---|---|
| Customer Reviews | ||||||
| — | — | — | — | — | — | — |
| Price | ||||||
| — | — | — | — | — | — | — |
| Supported Resolution | ||||||
| 4K@60Hz 4:2:0 8bit | 4K@60Hz 4:4:4 8bit | 4K@60Hz 4:4:4 8bit | 4K@60Hz 4:2:0 8bit | 4K@60Hz 4:4:4 8bit | 4K@60Hz 4:4:4 8bit | 1080@60Hz |
| Transmission Range | ||||||
| 4K:cat6a:40m, 1080P: cat6a:70m | 4K:cat6a:40m, 1080P: cat6a:70m | 4K: cat5e: 50m, cat6/6a/7: 70m | 4K:cat6a:100m,1080P:cat5e:100m | 4K: cat6:35m,1080P: cat5e: 50m | 4K:cat6a:40m, 1080P: cat6a:70m | Wireless: 200m, Wired: 120m |
| IR Control | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| HDMI Version | ||||||
| 1.4 | 2.0 | 2.0 | 1.4 | 2.0 | 2.0 | 1.3 |
| HDCP Version | ||||||
| 2.2 | 2.2 | 2.3 | 2.2 | 2.2 | 2.2 | 1.4 |
| POE | ||||||
| Bi-Direction | Bi-Direction | Bi-direction PoC | Bi-Direction | Uni-Direction | Bi-Direction | Uni-Direction |
| RS232 | ||||||
| ? | ? | ? | ? | ? | ? | ? |
| ARC/eARC | ||||||
| × | × | × | × | × | ARC | × |
| Wireless Transmission | ||||||
| × | × | × | × | × | × | ? |
