4K HDMI Extender with eARC & ARC, HDBaseT 3.0 Extender w/ 2-Way IR, CEC & PoC, Ideal for Home Theater, HDR Dolby Vision up to130ft/40m
- Enhanced Audio Return Channel (eARC): eARC can transmit HIFI audio back from TV to AVR system. Supported audio formats include PCM 7.1 192KHz, Dolby digital, DTS 5.1CH, Dolby Digital Plus, and lossless audio formats including Dolby TrueHD, Dolby Atmos, DTS-X.
- HDMI 2.0 & HDCP 2.3 Compliant: The eARC extender Supports common HDR formats including HLG, HDR10, HDR10+, and Dolby Vision (4K@60Hz). Transmits 4K@60Hz (4:4:4) HDMI signal up to 40m/131ft over a single Cat 6a/7 cable using the most advanced HDBaseT 3.0 technology.
- Bi-Directional IR, CEC & PoC: this hdmi extender eARC transmitters powers the receiver over CatX cable, so only one adapter required. CEC allows the TV remote to control AVR and IR sensors allow you to remotely control signal from transmitter to receiver, or from receiver to transmitter.
- Plug & Play, Universal Compatibility: Works flawlessly with various AV receivers and display devices, like Denon, Yamaha, etc. No software or driver is required; just plug and play.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
4KEX40-eARC is an HDMI 2.0 eARC Extender.
It supports 4K@60Hz 4:4: 4 with HDR and HDCP 2.3 compliant, and offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat 6 or above cable. It also supports full eARC function and is backward compatible with 5.1CH ARC, which enable the kit to configure the eARC/ARC channel feed by TV (with eARC/ARC supported). With bi-directional IR passthrough supported, users can control the display at transmitter side or control the source at receiver side. It supports both static and dynamic HDR
formats up to 4K@60Hz, including HDR 10, HDR 10+, Dolby Vision and HLG. Its proprietary two-way PoC technology enables one power adapter to be connected to the transmitter or receiver to power both units.
Features:
HDMI 2.0 with uncompressed 4K@60Hz 4:4: 4.

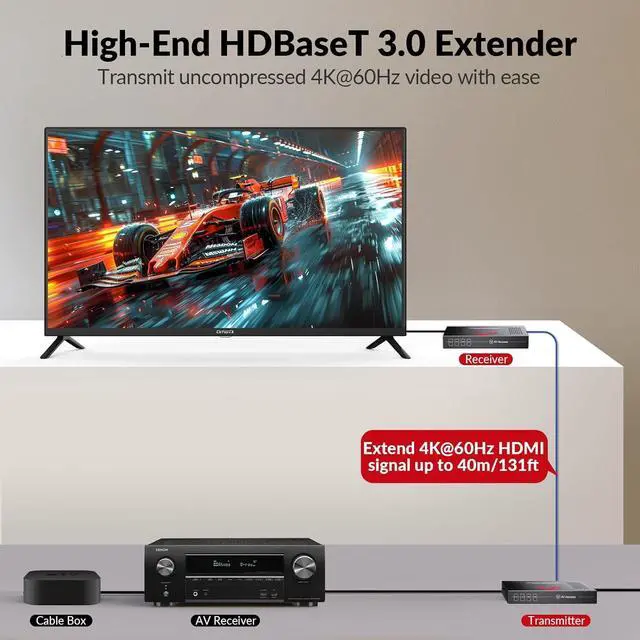

Via a single Cat 6 or above cable, transmit
4K@60Hz 4:4: 4 signal up to 40m/131ft.
HDCP 2.3 and backward compatible.
Supports HDR formats up to 4K@60Hz, including HLG, HDR10, HDR10+, and Dolby Vision.
Supports eARC and ARC audio return.
If both source and sink TV support eARC, it would transmit eARC audio.
If both source and sink TV support ARC, or one supports ARC and the other supports eARC, it would transmit ARC audio.
If either of source or sink TV doesnt support ARC, it would not transmit returned audio.

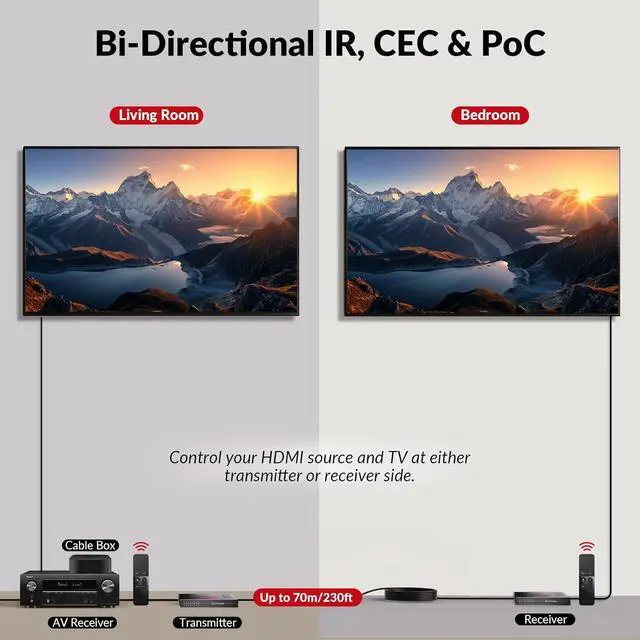

Supports bi-directional IR pass-through.
Supports bi-directional PoC, only one power adapter is needed to be connected to the transmitter or receiver to power both units.
Plug and play, and no driver is needed.
Supports firmware upgrade through Micro USB port.
Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x 1
Power Adapter (DC 12V 2A) x 1
IR Emitter x 1
IR Receiver (30 KHz ~ 50 KHz) x 1
Mounting Brackets (with Screws) x 8
User Manual x 1
4KEX40-eARC is an HDMI 2.0 eARC Extender.
It supports 4K@60Hz 4:4: 4 with HDR and HDCP 2.3 compliant, and offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat 6 or above cable. It also supports full eARC function and is backward compatible with 5.1CH ARC, which enable the kit to configure the eARC/ARC channel feed by TV (with eARC/ARC supported). With bi-directional IR passthrough supported, users can control the display at transmitter side or control the source at receiver side. It supports both static and dynamic HDR
formats up to 4K@60Hz, including HDR 10, HDR 10+, Dolby Vision and HLG. Its proprietary two-way PoC technology enables one power adapter to be connected to the transmitter or receiver to power both units.
Features:
HDMI 2.0 with uncompressed 4K@60Hz 4:4: 4.
Via a single Cat 6 or above cable, transmit
4K@60Hz 4:4: 4 signal up to 40m/131ft.
HDCP 2.3 and backward compatible.
Supports HDR formats up to 4K@60Hz, including HLG, HDR10, HDR10+, and Dolby Vision.
Supports eARC and ARC audio return.
If both source and sink TV support eARC, it would transmit eARC audio.
If both source and sink TV support ARC, or one supports ARC and the other supports eARC, it would transmit ARC audio.
If either of source or sink TV doesnt support ARC, it would not transmit returned audio.
Supports bi-directional IR pass-through.
Supports bi-directional PoC, only one power adapter is needed to be connected to the transmitter or receiver to power both units.
Plug and play, and no driver is needed.
Supports firmware upgrade through Micro USB port.
Package Contents:
Before you start the installation of the product, please check the package contents
Transmitter x 1
Receiver x 1
Power Adapter (DC 12V 2A) x 1
IR Emitter x 1
IR Receiver (30 KHz ~ 50 KHz) x 1
Mounting Brackets (with Screws) x 8
User Manual x 1
