AV Access HDBaseT HDMI Extender Over Single Cat5e/6/6a/7 4K@60Hz (230ft/70m), 1080P (330ft/100m), with Ethernet, HDR10+, YUV4:2:0, HDCP 2.2, Plug & Play, IR Return & PoE, Smart EDID
- 4K@60Hz 1080P@60Hz with Atmos Audio: HDBaseT Extender supports up to 4K@60Hz Also provides fantastic audio as Atmos, DTS:X, TrueHD, DTS-HD Master, LPCM 2.1 to 7.1CH.DTS-HD Master, LPCM 2.1 to 7.1CH. Far-reaching up to 330ft/100M for 1080p@120Hz signal and for 4K@60Hz 230ft over cat5e/6a/7 cable.
- Advanced Configuration: Supports HDMI 1.4 and HDCP 2.2. It supports bi-directional IR, RS232 control and 2 WAY PoE, one power adapter to power both units. It supports automatic EDID management, automatically choose the most suitable resolution for your devices. It allows CEC pass-through.

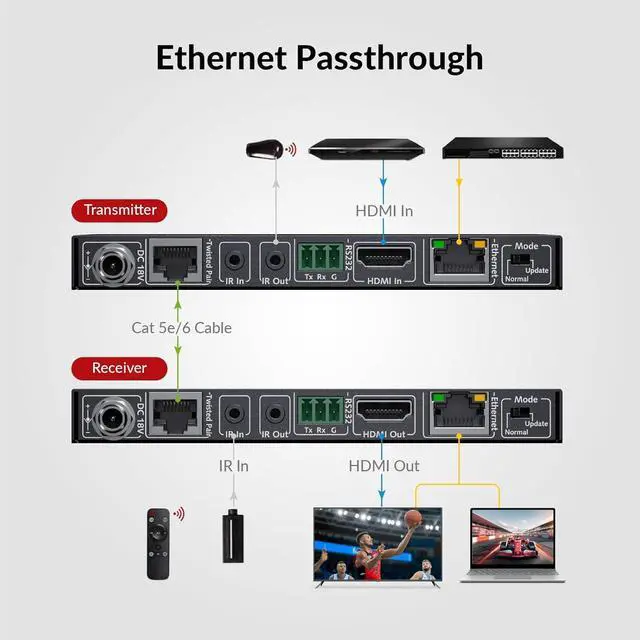

- HDBaseT and Internet Relay: Fast and stable transmission over HDBaseT at near ZERO Latency. Also supports Internet Relay function, designed with integrated 10/100m Ethernet port for computers or laptops. Perfect for office and home entertaining.
- Safe and Life-time support: Certificated by FCC and CE. With built-in Surge/Lightning protection and superior ESD protection to prevent thunder strikes.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
4KEX100-L is a 100m low-cost 4K Full HDBase-T Extender with PoE andoffers the distribution of uncompressed 4K@60Hz UHD video, HDaudio, Ethernet, power, RS232, and two-way IR up to 100m/330ft
along a single CatX cable. It features the transmission of uncompressed 4K@60Hz UHD video, HDCP 2.2 compatibility, power, Ethernet, bi-directional RS232 and IRcontrol.

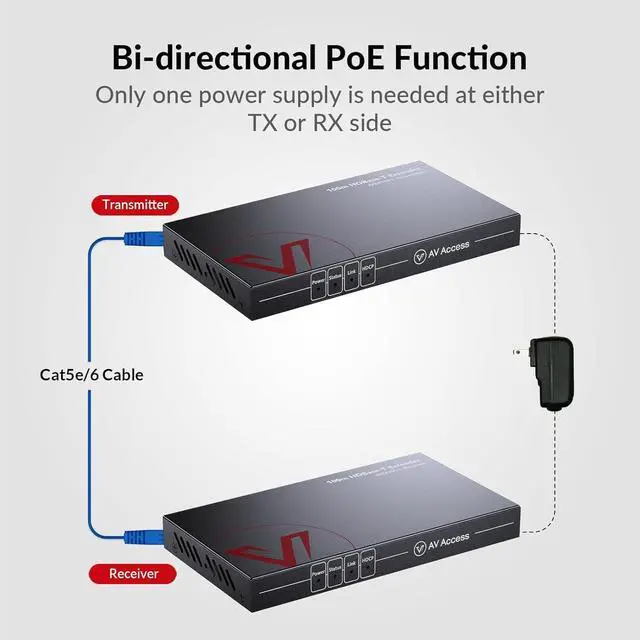

Its bi-directional PoE technology ensures only one power adapter isneeded at either TX or RX side to power both units. Each unit provides LED indicators for power supply and signal status to show establishedconnection between connected devices.
Via Cat 6a/7 cables, 4K@60Hz output up to 100m, 1080P outputup to 100m
Via Cat 5e/6 cables, 4K@60Hz output up to 70m, 1080P output upto 100m
HDMI 1.4 with 4k@60Hz (Chroma sub-sampling 4:2: 0 8-bit only)and HDCP 2.2 compliance
Bi-directional PoE, only one power adapter is needed at either TX or RX side

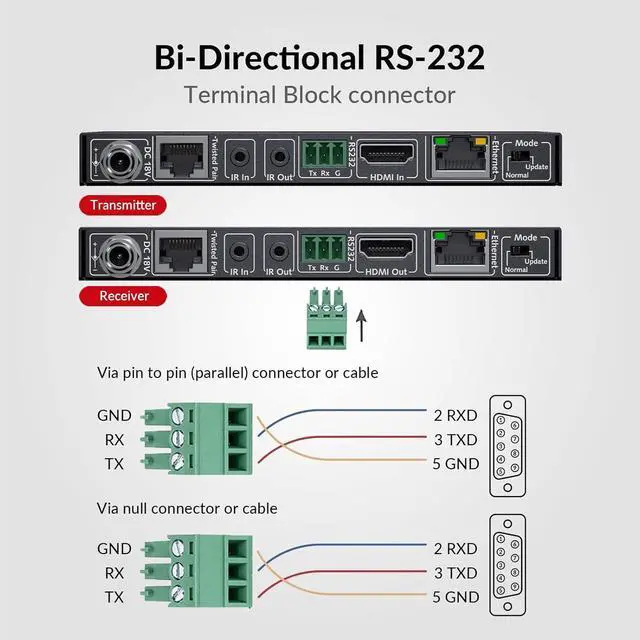

Bi-directional RS232 and IR pass-through over HDBaseT
Automatic EDID management

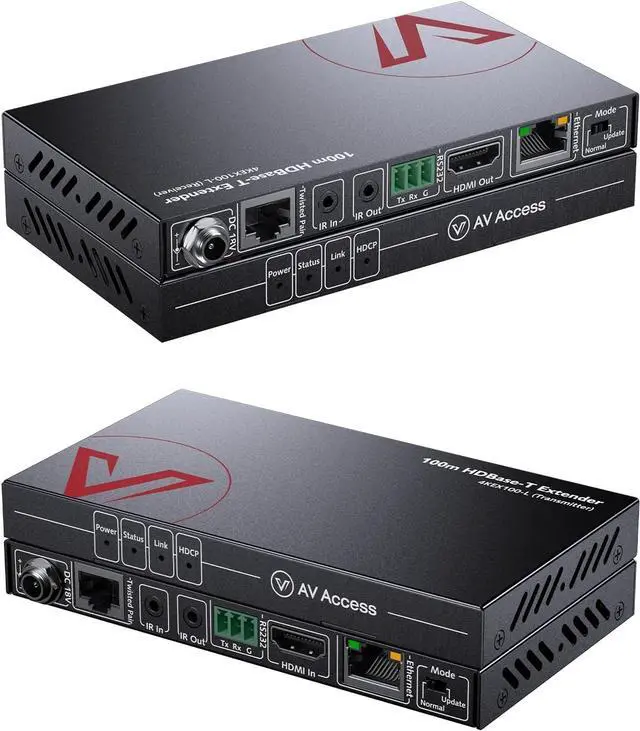

All connectors on one side for easy cabling

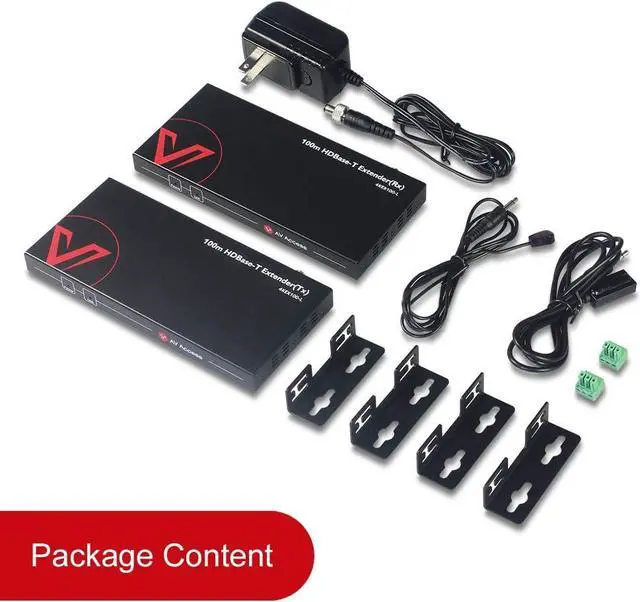

Package Contents:
Before you start the installation of the product, please check thepackage contents
1 x 4KEX100-L TX
1 x 4KEX100-L RX
1 x Power Supply (DC 18V 1A)
1 x IR Emitter
1 x Wide-band IR Receiver (30KHz~50KHz)
2 x Mounting Brackets (Pair)
2 x Phoenix Connectors (3 Pin)
1 x User Manual
4KEX100-L is a 100m low-cost 4K Full HDBase-T Extender with PoE andoffers the distribution of uncompressed 4K@60Hz UHD video, HDaudio, Ethernet, power, RS232, and two-way IR up to 100m/330ft
along a single CatX cable. It features the transmission of uncompressed 4K@60Hz UHD video, HDCP 2.2 compatibility, power, Ethernet, bi-directional RS232 and IRcontrol.
Its bi-directional PoE technology ensures only one power adapter isneeded at either TX or RX side to power both units. Each unit provides LED indicators for power supply and signal status to show establishedconnection between connected devices.
Via Cat 6a/7 cables, 4K@60Hz output up to 100m, 1080P outputup to 100m
Via Cat 5e/6 cables, 4K@60Hz output up to 70m, 1080P output upto 100m
HDMI 1.4 with 4k@60Hz (Chroma sub-sampling 4:2: 0 8-bit only)and HDCP 2.2 compliance
Bi-directional PoE, only one power adapter is needed at either TX or RX side
Bi-directional RS232 and IR pass-through over HDBaseT
Automatic EDID management
All connectors on one side for easy cabling
Package Contents:
Before you start the installation of the product, please check thepackage contents
1 x 4KEX100-L TX
1 x 4KEX100-L RX
1 x Power Supply (DC 18V 1A)
1 x IR Emitter
1 x Wide-band IR Receiver (30KHz~50KHz)
2 x Mounting Brackets (Pair)
2 x Phoenix Connectors (3 Pin)
1 x User Manual
