AV Access HDBaseT DisplayPort KVM Extender, Zero Latency, 4k@30Hz/1080P@120Hz, DP 1.2 PoE Extender, 2 USB 2.0 Ports for Keyboard and Mouse, EDID, Over Single Cat5e/6/6a/7 Up to 330ft (4KEX100-DP-KVM)

4KEX100-DP-KVM is AV Accesss newest 4K DisplayPort extender with KVM. It offers the distribution of 4K@30Hz UHD video, analog stereo, power, RS232, and USB 2.0 up to 100m/330ft over a single CAT6 or above cable. It also supports 1080P@120hz, ideal for PC game control. Additional features include bi-directional 3.5mm stereo pass-through, automatic EDID management, one-way PoE, etc. This DisplayPort KVM extender is ideal for homes, offices, control centers, video surveillance centers, conference rooms, schools, etc.

Main Features:

Slim appearance and space saving

One way PoE, transmitter supplies the power for receiver

Via Cat 6a/7 cable, 4Kx2K@30Hz or 1080P@60Hz output up to 100m.

Via Cat 5e/6 cable, 4Kx2K@30Hz output up to 90m, 1080P@60Hz up to 100m

DP 1.2 supported, up to 4k@30Hz and HDCP 1.4 compliance

Supports Bi-directional stereo audio, RS232 and EDID pass through over HDBaseT

USB 2.0 pass through over HDBaseT, with USB-HOST built in transmitter and USB-DEVICE built in receiver.

All connectors in one side for easy installation

• 4K@30 Ultra HD Image

This newest HDBaseT KVM extender is designed with DisplayPort 1.2 interface. Supporting up to 4K@30Hz (4:4:4) resolution, it can extend ultra HD image up to 100m/330ft with zero signal loss or delay. It also supports 1080P@120hz, ideal for PC game control.

• Effortless KVM Extension

This DisplayPort KVM extender provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps passes through over HDBaseT with zero delay.

• Wonderful Gaming Experience with 1080P@120hz

For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the players performance. The DisplayPort KVM extender supports 1080P@120Hz video input, ensuring your game sources can be effectively extended. Thus, you can have an unprecedentedly smooth and seamless gaming experience.

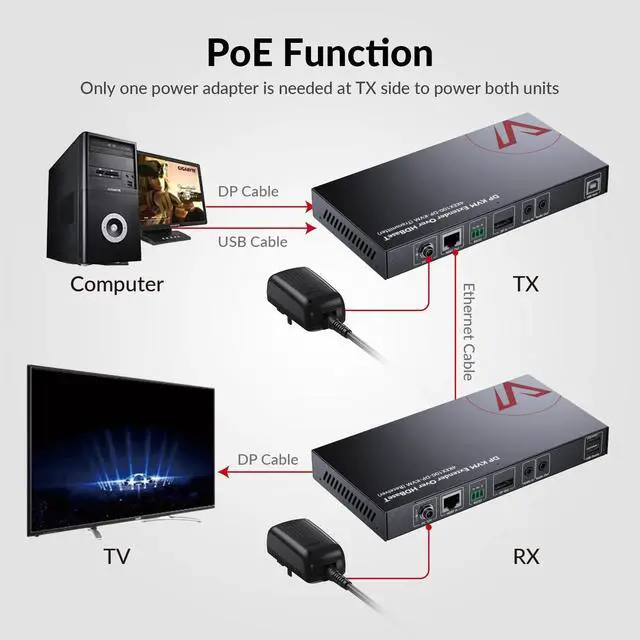

• One-Way PoE

With 48V PoE integrated inside, this DisplayPort KVM extender only requires one power supply connected to the transmitter to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

In the Box:

Transmitter 4KEX100-DP-KVM x 1

Receiver 4KEX100-DP-KVM x 1

Power Adapter (DC 12V 2A) x 1

Phoenix Male Connector (3.5mm 3 Pin) x 2

USB 2.0 Type-B to Type-A Cable (L=1.5m) x 1

Mounting Bracket (with Mounting Screws) x 4

User Manual x 1
