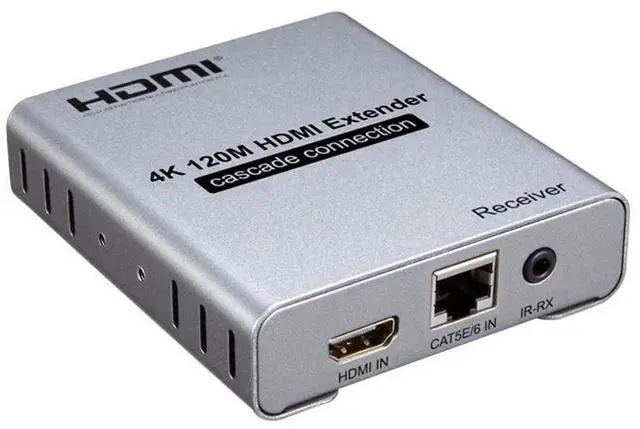

4K 120M HDMI Extender Cascade Connection Over CAT5e CAT6 RJ45 Ethernet LAN Network Cable Extension Splitter Transmitter Receiver eokCXOY

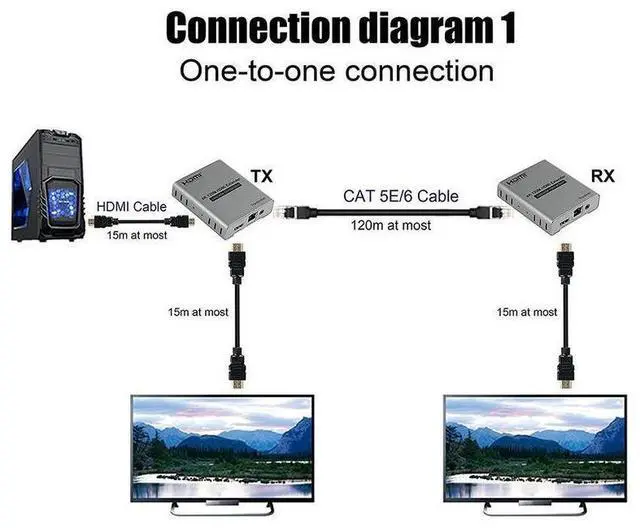

4K 120m HDMI Extender with loop-out,Use a cat5e or cat6 cable instead of an HDMI cable to transmit HD signals up to 120 meters

Product introduction:

This integrated cable extender replaces the HDMI cable with a CAT5e or CAT6 cable (recommended). It can transmit HDMI1.4 4K@30Hz HDM1.3 1080P I for 120 meters.

The purpose of the extender is to use low-cost wires. To achieve long-distance signal transmission.

Features:

1:120M long distance transmission

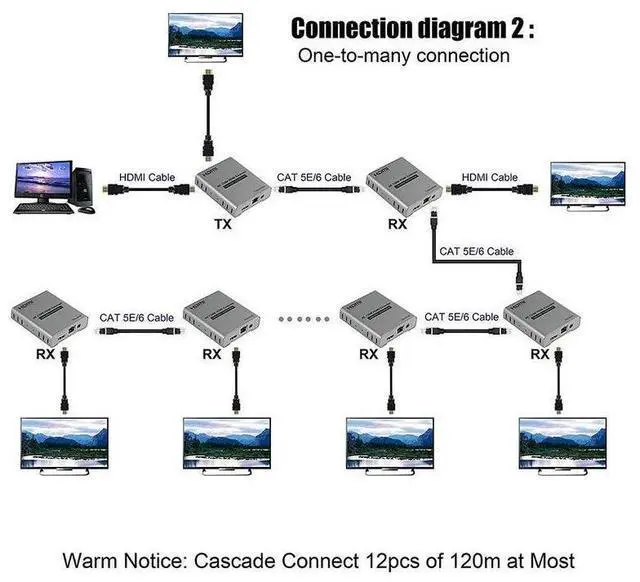

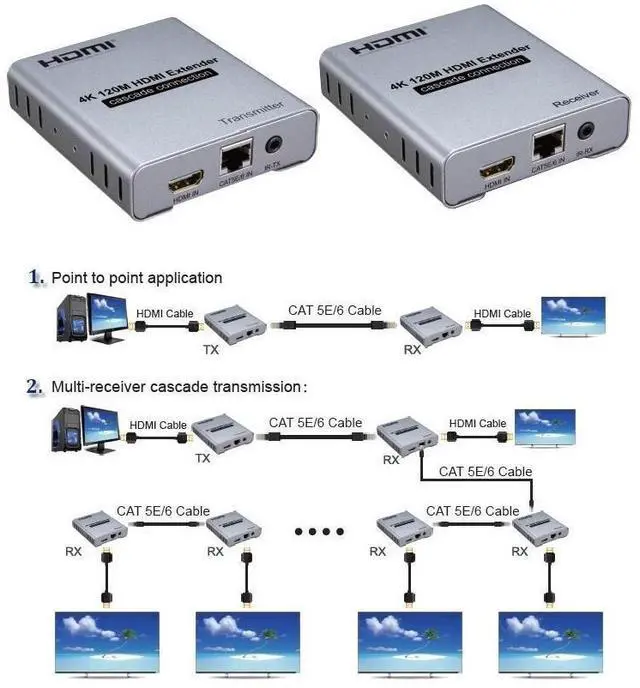

2:Multi-receive cascading transmission

3:Low power consumption, low temperature and high safety.

4:Support 4K@30HZ HDMI1.4 or below.

Specifications:

Extended distance:transmission up to 120M (CAT5E/6)

Input video signal:5Volts p-p(TTL)

Video resolution support:Up to 3840 X 2160/30HZ backward compatible.

Support audio format:DTS/Dolby/LPCM

Support video format:4K/1080P/720P and so on.

Maximum bandwidth transmission:340MHz

Maximum transfer rate:3 x 3.4Gbps

Input cable length:=15M AWG26 HDMI standard cable

Output cable length:=15M AWG26 HDMI standard cable

Maximum operating current: TX:350mA; RX:200mA

Power adapter specifications:input: AC (50HZ, 60HZ) 100-240V; output: DC5V / 1A;

Operating temperature range:(-10?+45°C)

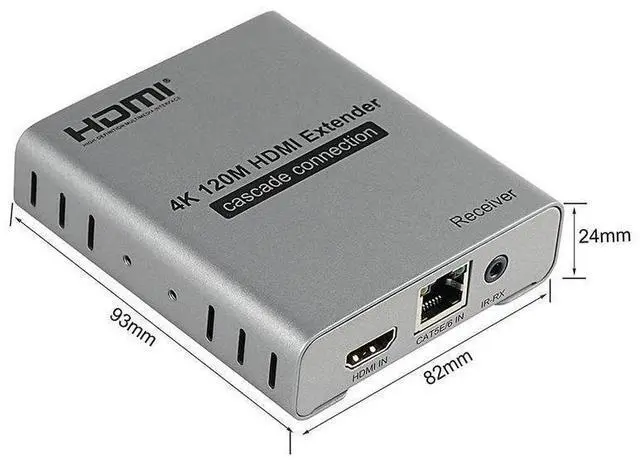

Size:94*84*24 (mm)

Weight:223g*2
