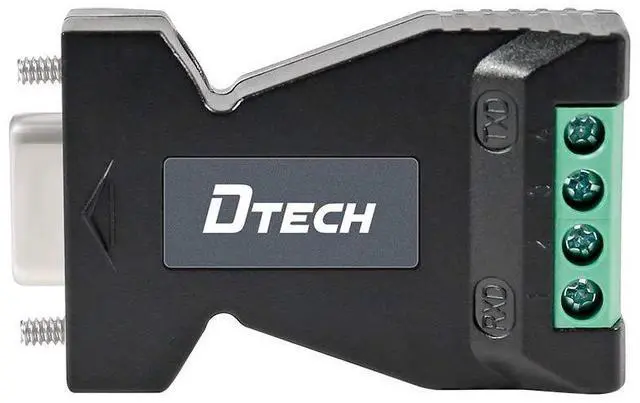

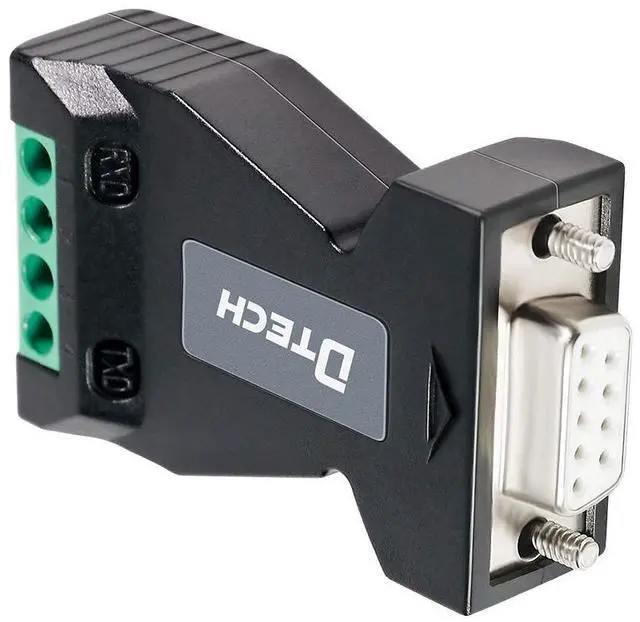

RS232 to RS485 Converter with 4 Position Terminal Block for Long Haul Data Communication
Mini Size RS232 to RS485 Serial Adapter with Terminal Block
RS-232 to RS-485 converters are mostly used in industrial and commercial environments. The reason is that the RS485 converter can be used for multi-drop networks, meaning that you for example can connect multiple RS485 devices to one computer. Up to 32 devices can be connected in one network to communicate on a single pair of wires (plus a ground wire). This type of communication is called half-duplex communication. Most quality RS485 converters can communicate in this manner of up to 4000 feet (1200 meters).
RS232 to RS485 serial converter is also fairly resistant to noise which is one more reason why it is favored in industrial environments.

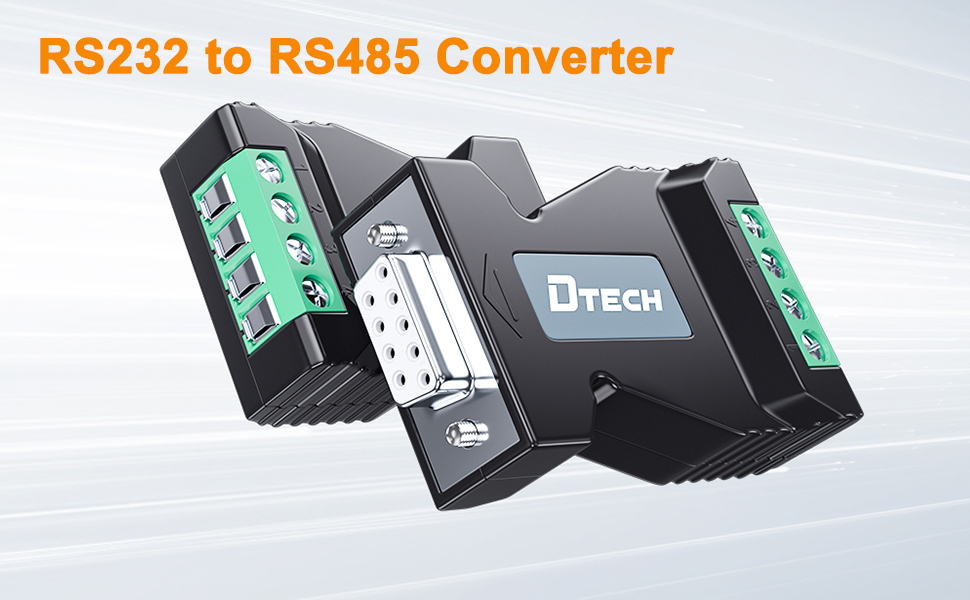

Industrial RS-232 to RS-485 Converter

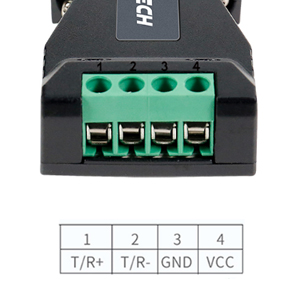

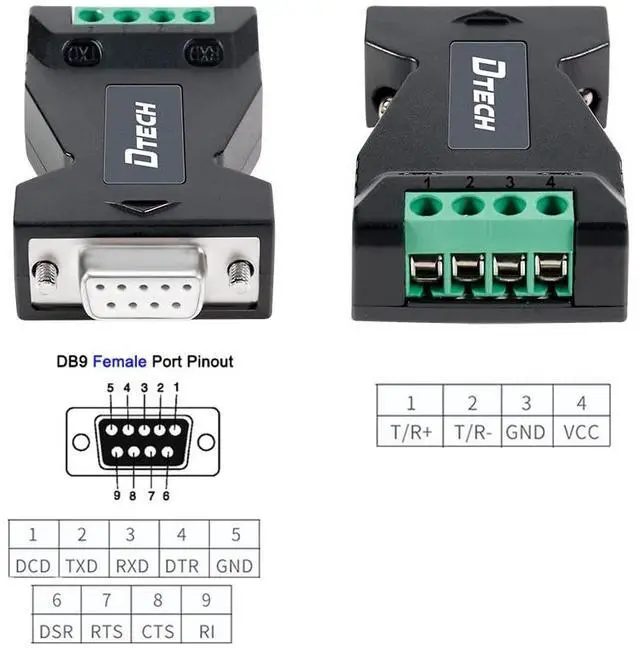

RS485 link - terminal block pinout
Surge Protection: RS485 Interface, Each wire 600W

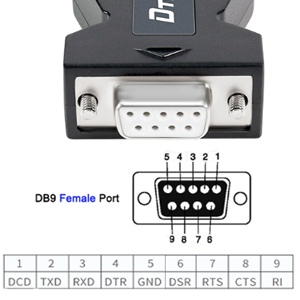

RS232 link - DB9 pinout
Port-Power serial adapter: No external power supply required, it is port-powered from RS232 data lines and low consumption electricity.
Compact Size

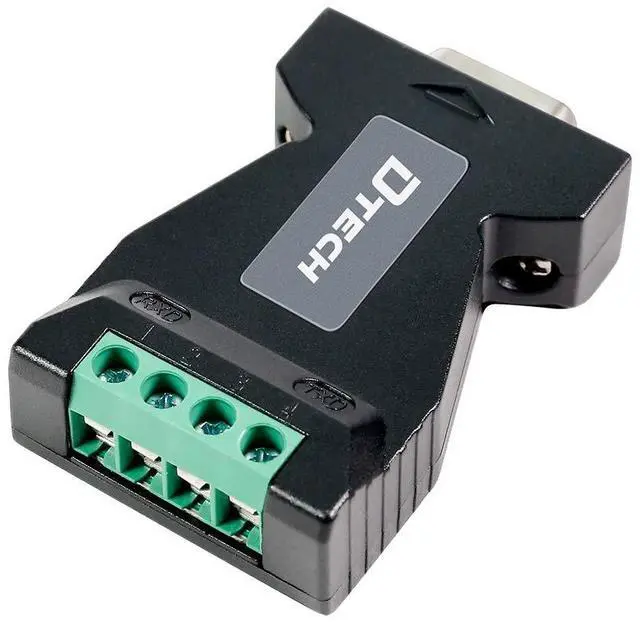

Mini-Size with 2 screws and 4 position terminal block
Guard Your Value Equipment
A built-in transient voltage suppressor (TVS) supports 600W anti-surge, effectively guard your value devices from the hazards of transient surges, lightning.
No Driver Required: Auto control data flow direction of I/O circuit feature makes it fully plug-and-play.
Original Packing Included
1 X RS232 to RS485 Converter
RS232 to RS485 Converter with 4 Position Terminal Block for Long Haul Data Communication
Mini Size RS232 to RS485 Serial Adapter with Terminal Block
RS-232 to RS-485 converters are mostly used in industrial and commercial environments. The reason is that the RS485 converter can be used for multi-drop networks, meaning that you for example can connect multiple RS485 devices to one computer. Up to 32 devices can be connected in one network to communicate on a single pair of wires (plus a ground wire). This type of communication is called half-duplex communication. Most quality RS485 converters can communicate in this manner of up to 4000 feet (1200 meters).
RS232 to RS485 serial converter is also fairly resistant to noise which is one more reason why it is favored in industrial environments.
Industrial RS-232 to RS-485 Converter
RS485 link - terminal block pinout
Surge Protection: RS485 Interface, Each wire 600W
RS232 link - DB9 pinout
Port-Power serial adapter: No external power supply required, it is port-powered from RS232 data lines and low consumption electricity.
Compact Size
Mini-Size with 2 screws and 4 position terminal block
Guard Your Value Equipment
A built-in transient voltage suppressor (TVS) supports 600W anti-surge, effectively guard your value devices from the hazards of transient surges, lightning.
No Driver Required: Auto control data flow direction of I/O circuit feature makes it fully plug-and-play.
Original Packing Included
1 X RS232 to RS485 Converter
| Standard | EIA/TIA RS232C / RS485 |
| Baud Rate | 300bps - 115.2kbps |
| Working Mode | 2 wire asynchronous half-duplex |
| Communication Mode | Point to Point, Point to Multipoint |
| Transmission Media | Twisted Pair (Wire diameter >= 0.5mm) or Shielded wire |
| Transmission Distance | RS232 Interface up to 50ft (15m) |
| Transmission Distance | RS485 Interface: up to 4000ft (1.2km) |
