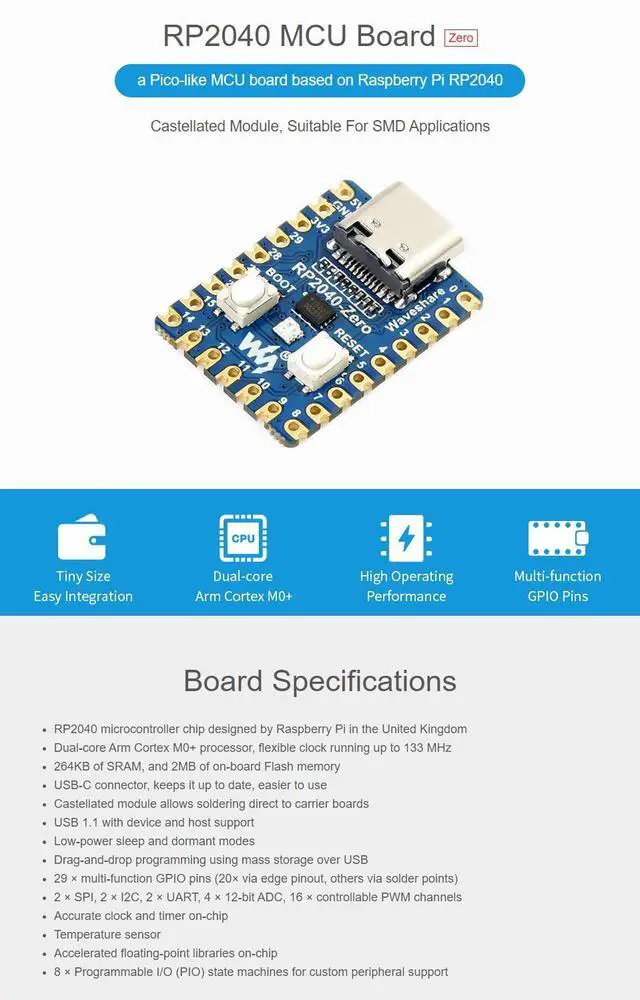

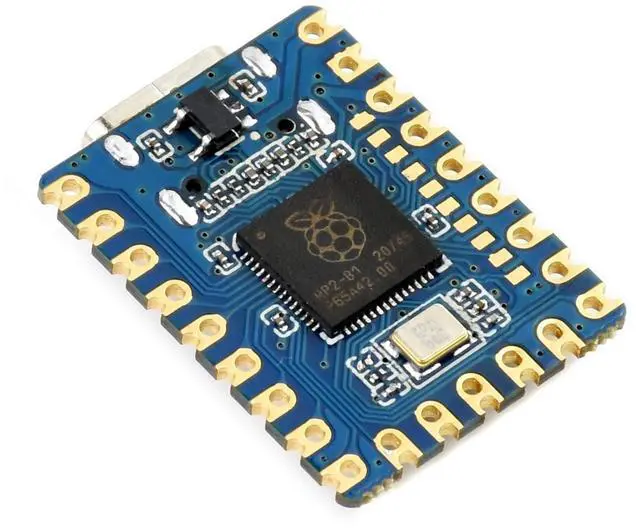

Board Specifications

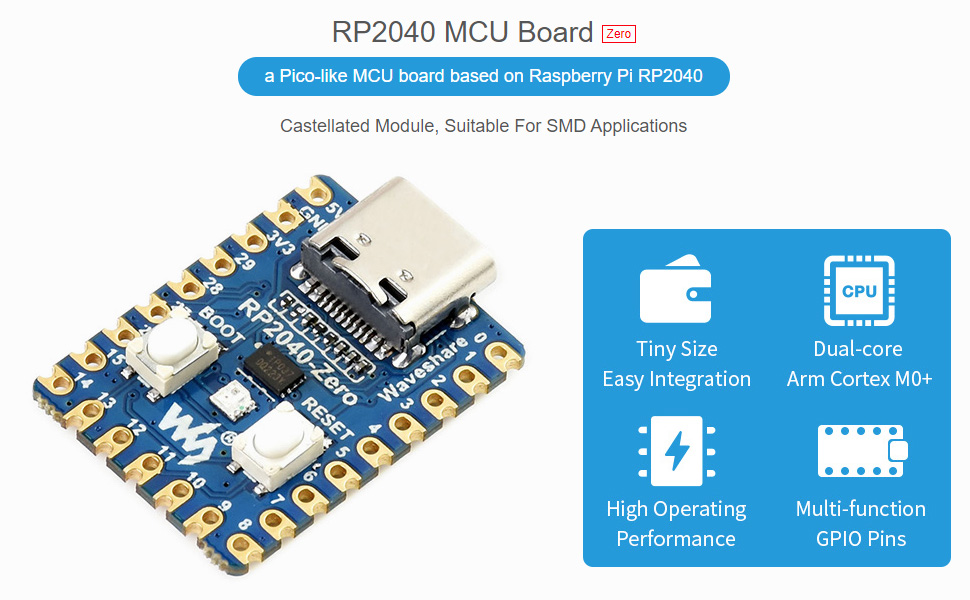

- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB

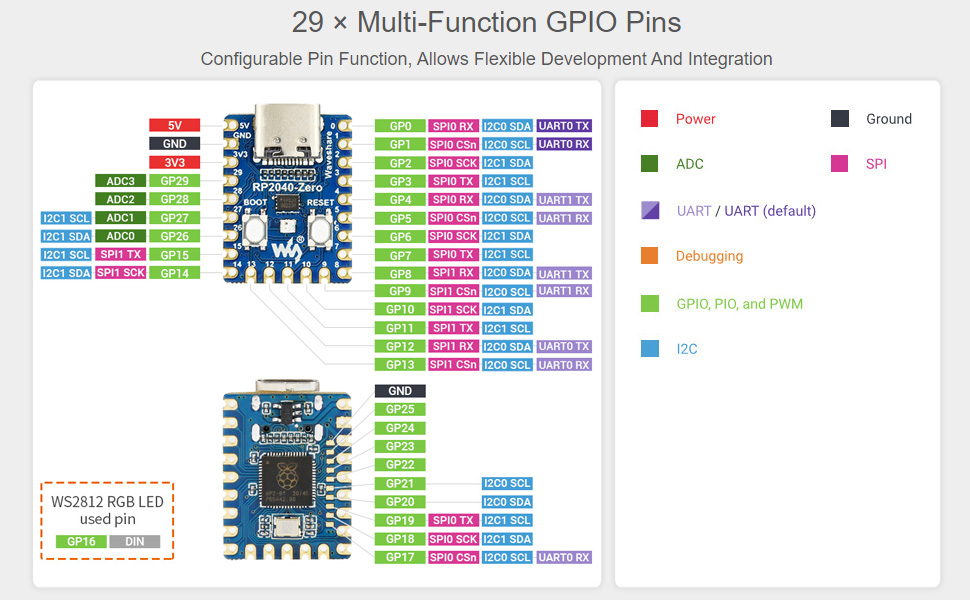

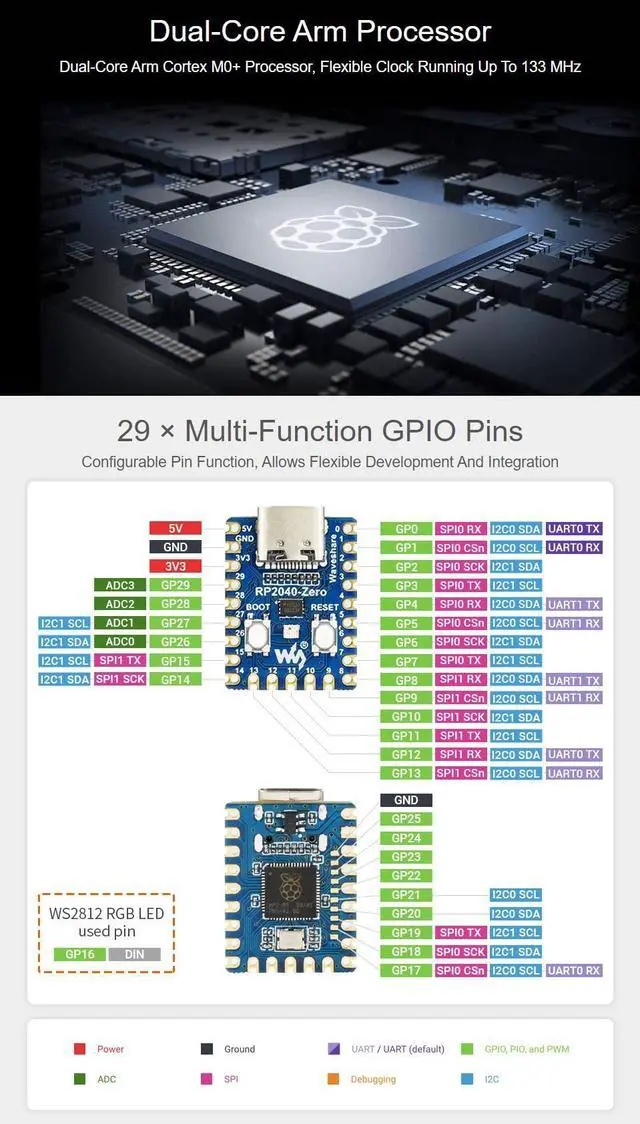

- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
WIKI: waveshare.com/wiki/RP2040-Zero?

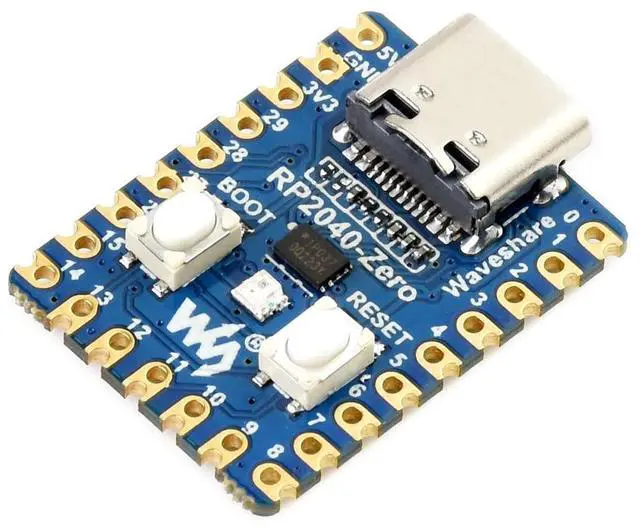

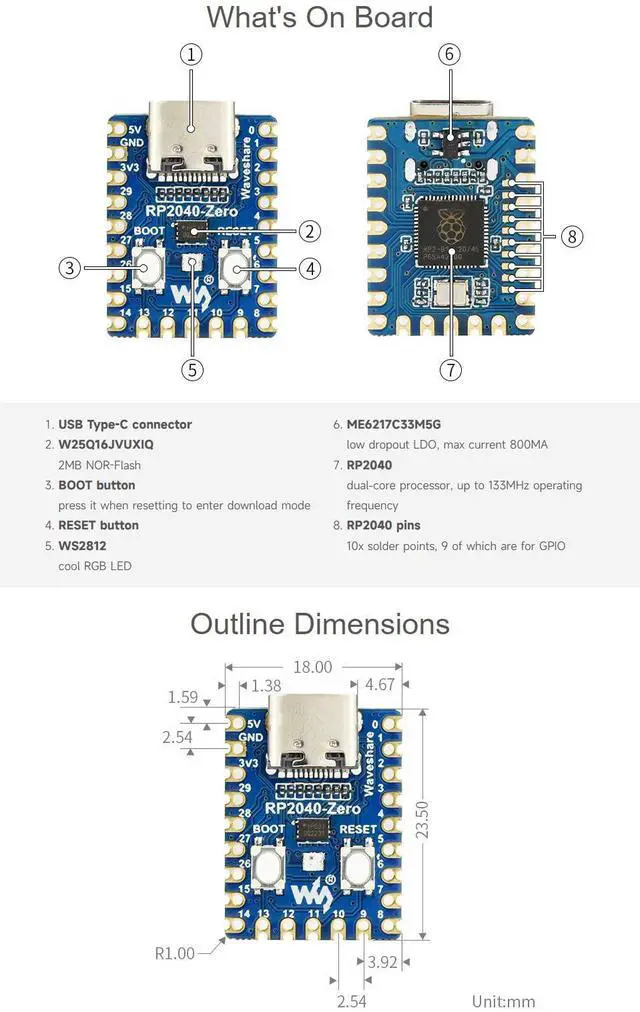

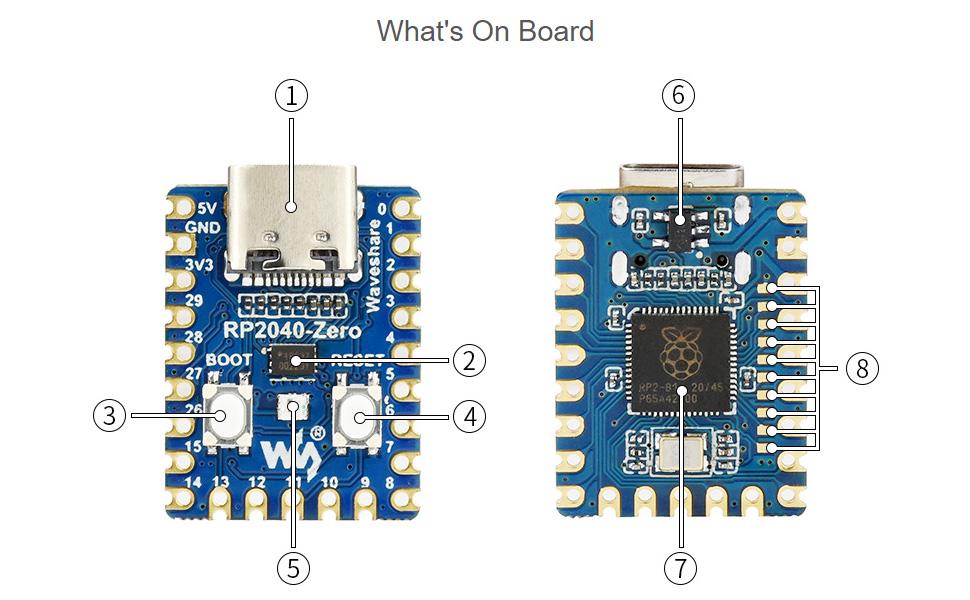

- USB Type-C connector
- W25Q16JVUXIQ 2MB NOR-Flash
- BOOT button press it when resetting to enter download mode
- RESET button
- WS2812 cool RGB LED
- ME621 low dropout LDO, max current 800MA
- RP2040 dual-core processor, up to 133MHz operating frequency
- RP2040 pins 10x solder points, 9 of which are for GPIO

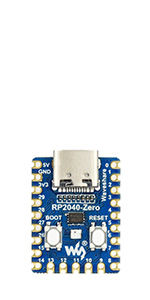

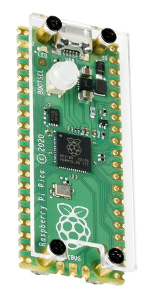

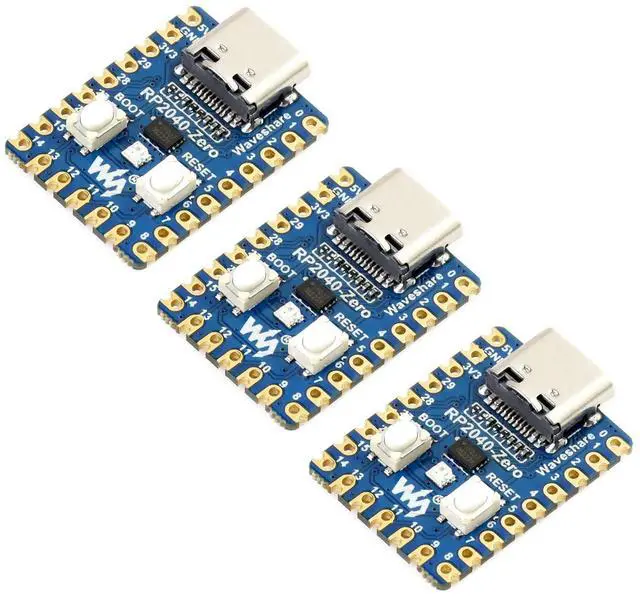

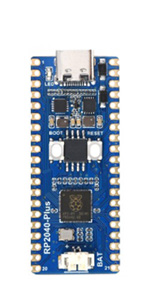

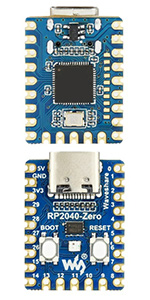

 Original with case |  Mini ver. |  LCD ver. |  Plus ver. |  Mini ver.-2pcs | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PROCESSOR | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller |
| REGULATOR | RT6150 (DC-DC, 800mA) | ME6217 (LDO, 800mA) | TPS63000 (DC-DC, 1800mA) | TPS63000 (DC-DC, 1800mA) | ME6217 (LDO, 800mA) |
| USB | Micro USB | Type-C | Type-C | Type-C | Type-C |
| FLASH | 2MB | 2MB | 2MB | 4MB | 2MB |
| BATTERY HEADER | N/A | N/A | Yes(concurrent recharging and powering) | Yes(concurrent recharging and powering) | N/A |

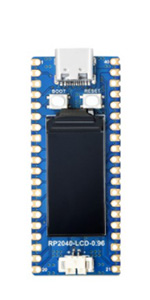

| INTEGRATED LCD | N/A | N/A | 0.96inch IPS LCD | N/A | N/A |
Board Specifications
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
WIKI: waveshare.com/wiki/RP2040-Zero?
- USB Type-C connector
- W25Q16JVUXIQ 2MB NOR-Flash
- BOOT button press it when resetting to enter download mode
- RESET button
- WS2812 cool RGB LED
- ME621 low dropout LDO, max current 800MA
- RP2040 dual-core processor, up to 133MHz operating frequency
- RP2040 pins 10x solder points, 9 of which are for GPIO
Original with case | Mini ver. | LCD ver. | Plus ver. | Mini ver.-2pcs | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| PROCESSOR | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller | Raspberry Pi official RP2040 microcontroller |
| REGULATOR | RT6150 (DC-DC, 800mA) | ME6217 (LDO, 800mA) | TPS63000 (DC-DC, 1800mA) | TPS63000 (DC-DC, 1800mA) | ME6217 (LDO, 800mA) |
| USB | Micro USB | Type-C | Type-C | Type-C | Type-C |
| FLASH | 2MB | 2MB | 2MB | 4MB | 2MB |
| BATTERY HEADER | N/A | N/A | Yes(concurrent recharging and powering) | Yes(concurrent recharging and powering) | N/A |
| INTEGRATED LCD | N/A | N/A | 0.96inch IPS LCD | N/A | N/A |
