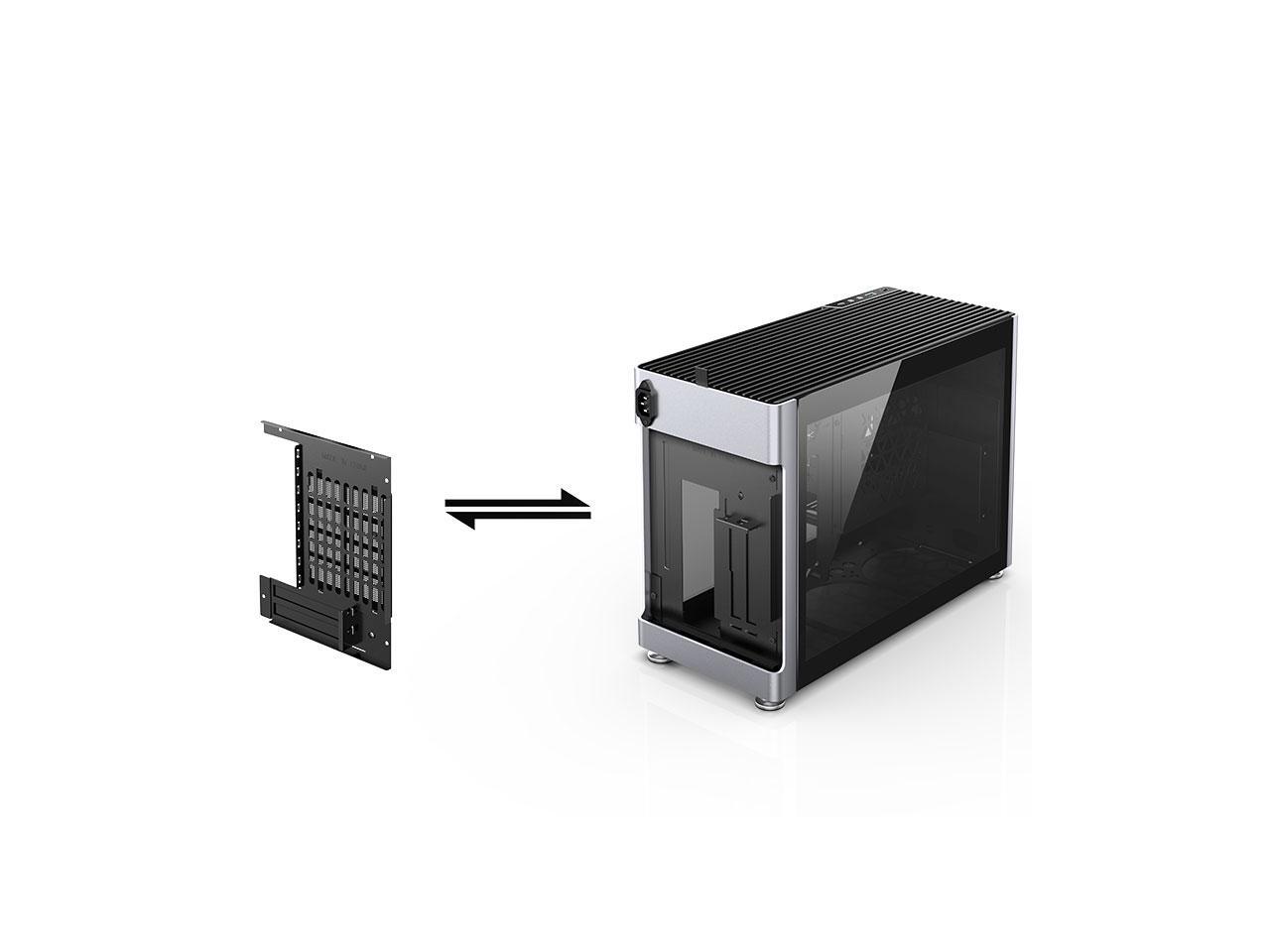

GPU Vertical mounting + AIO/ liquid cooler
Multi-chamber installation, CPU and GPU in different chamers ( PCI-E raiser cable included)
·GPU support: 345-373mm (L)*160mm(H) *62mm (W) max
(Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L))
·CPU cooler height : 77mm max
·Radiator support: 360/280/240/120 (fan +radiator max thickness : 55mm)
·Fan space: 6*12cm / 4*14cm cooling fan ( Optional)
·PSU support: w/o bottom fan: ATX PSII/SFX : 175mm max length
W bottom fan: ATX PSII / SFX:150mm max length
GPU horizontal mounting +Air cooler
Single chamber installation, support flagship air cooler, long graphics card, and standard ATX PSII power supply.
·GPU support: 345-373mm (L)*160mm(H) *62mm (W) max
(Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L))
·CPU cooler height :166MM max
·PSU support: ATX PSII/SFX : 140mm max length
·Fan space: 3*12cm / 2*14cm cooling fan ( Optional)
GPU horizontal mounting +AIO/liquid cooler
Single chamber installation, support 360 AIO/radiator, long graphics card, and SFX power supply (115mm max).
·GPU support: 345-373mm (L)*160mm(H) *62mm (W) max
(Install side mounted dual SSD : 345mm (L), w/o SSD : 373mm(L))
·Radiator support: 360/280/240/120 (fan +radiator max thickness: 55mm)
·PSU support: SFX 115mm max length
·Fan space: 3*12cm / 2*14cm cooling fan ( Optional)
PCI-e 3.0 16 X 8Gs riser caber included
This adapter cable only support PCI-E 3.0 16X, if you would like to use PCI-E4.0 protocol hardware, please set the working status to PCI-E Gen3in the motherboard BIOS in advance.
(Currently the graphics card has not yet used the full bandwidth of PC-E 3.0, in theory using with PCI-E 3.0 riser card should not cause performance lose)

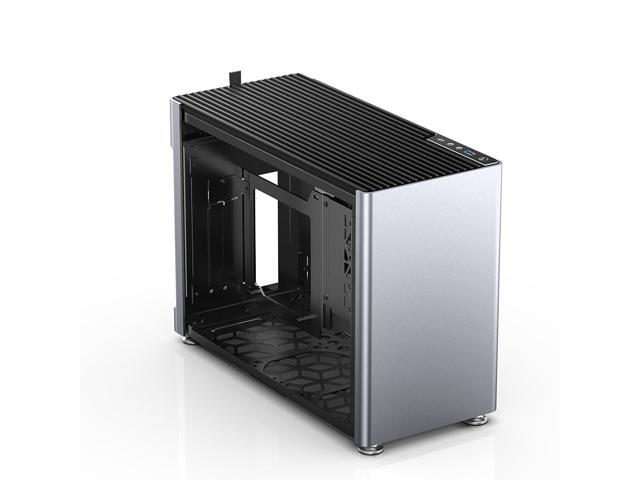

·Front and rear panel : 3.0mm aluminum alloy panel with 120#-150# sandblasting finishing
·Grille top Cover: ABS + PC Mechanical purposes plastic
·Inner structure: 1.0 +1.5mm steel panel with black powder coat finishing

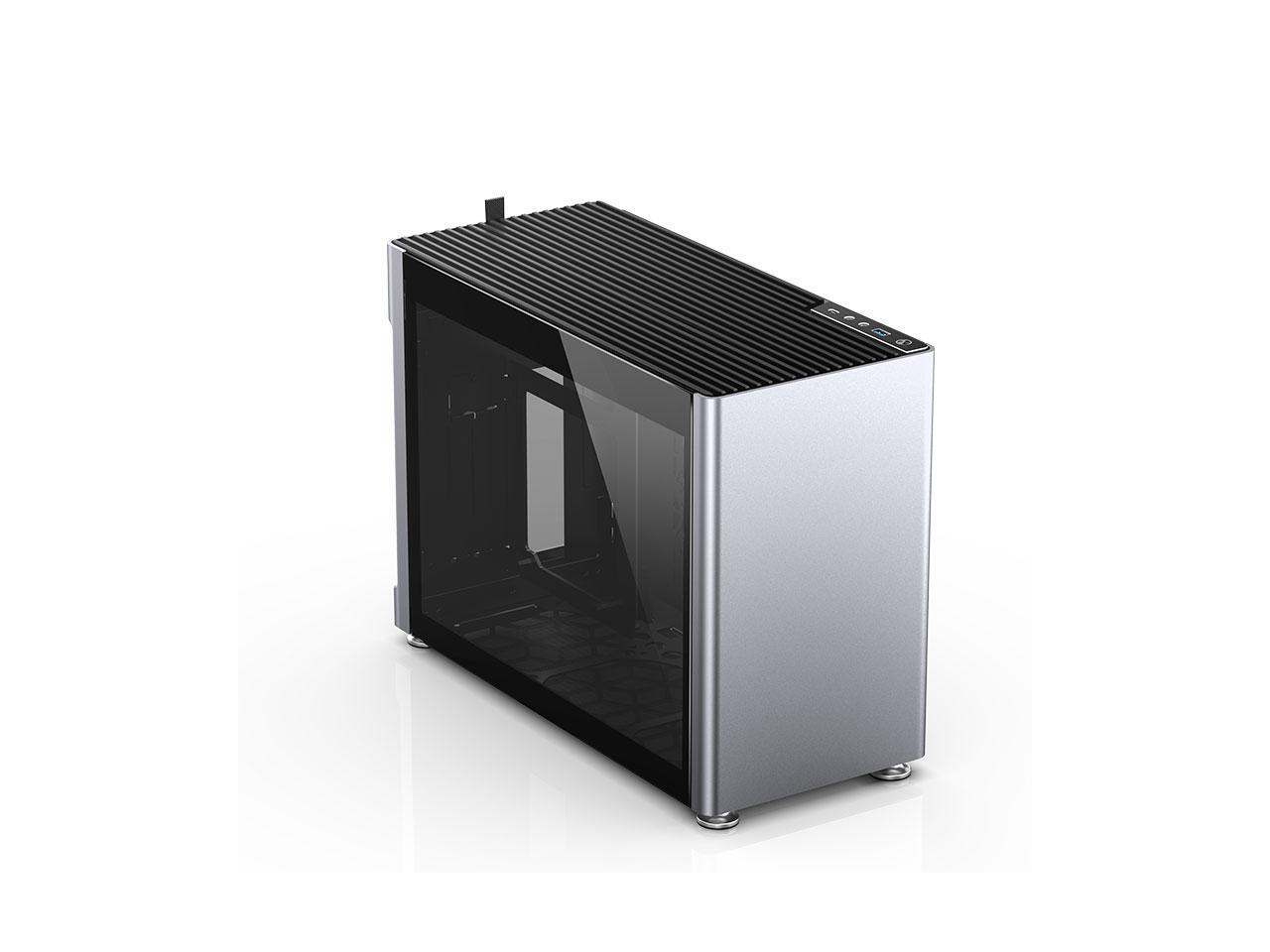

3mm tempered glass with 29.3% light transmittance, to soften the RGB lighting from system component. It is one of the darker glass panel in PC case on the market.
·Dual layers Case stand with aluminum alloy
VERTICAL GRAPHICS CARD MOUNTING MODE HARDWARE SUPPORT SPECIFICATION
Radiator support (top mounting position) : 360/280/240/120 (fan+ radiator thickness: 55mm)
PSU support : ATX/SFX (175mm long max w/o bottom fan) ATX/SFX (150mm long max w bottom fan)
CPU cooler height : 77mm max
Note : Please purchased PCI-E that is length over 228mm riser cable when using DTX board.
HORIZONTAL GRAPHICS CARD MOUNTING+ LIQUID COOLER MODE HARDWARE SUPPORT SPECIFICATION
PSU support : ATX/SFX (140mm long max )
CPU cooler height : 166mm max
HORIZONTAL GRAPHICS CARD MOUNTING+ AIR COOLER MODE HARDWARE SUPPORT SPECIFICATION
PSU support : ONLY support SFX, 115mm long max.
MAIN COMPONENT MATERIAL
Front & Rear Panel : 3.0mm aluminum alloy panel with 120#-150# sandblasting finishing
Grille top Cover : ABS + PC Mechanical purposes plastic
Inner structure : 1.0 +1.5mm steel panel with black powder coat finishing
Model name : i 100 Pro
Model version : Ver.1 (Steel/Glass version, Silver)
Product size : 194mm(W) x 307mm(H) x 435mm(L) (not include case stand)
Case Stand height :
Single layer: 14.5mm, dual layers: 20.5mm
MB support :
ITX, DTX (170 x 203mm) Note: When using DTX motherboard, and installing the graphics card vertically, will require to purchase an extended PCI-E cable(Length over 228mm)
GPU Support :
345-373mm (L)x160mm(H)x62mm(W) (W SSD cage is 345mm,w/o SSD Cage is 373mm)
Device Support :
1*3.5in HDD +2*2.5in SSD or 3*2.5in SSD.
Fan mounting position :
6*12cm fan or 4*14cm fan (optional)
PCI slots : 2
Front I/O : 1*TYPE-C(USB3.1 Gen2),1*USB3.0,1*AUDIO,1*MIC
Air filter system : Top, bottom, rear (pre-installed)
Weight :
NW: 6.7KG/GW: 8.8KG
Package size : 550 x 310 x 450mm (WDH)
