JONSPLUS i 400 ITX/DTX/ATX/E-ATX Aluminum Alloy Glass Computer Case - Support 360/280/240/120 Liquid Cooling
See more "aluminum computer cases"
Check more best sellers of "Computer Cases"
Check more lowest price of "Computer Cases"
Check more deals of "Computer Cases"
In stock.
Ships from Hong Kong.
- Vertical mounted graphics card design with deep optimization of cooling efficiency
- Vertical air flow design
- Reasonable sized ATX case
- We have done a lot of research on the versatility of the product design.

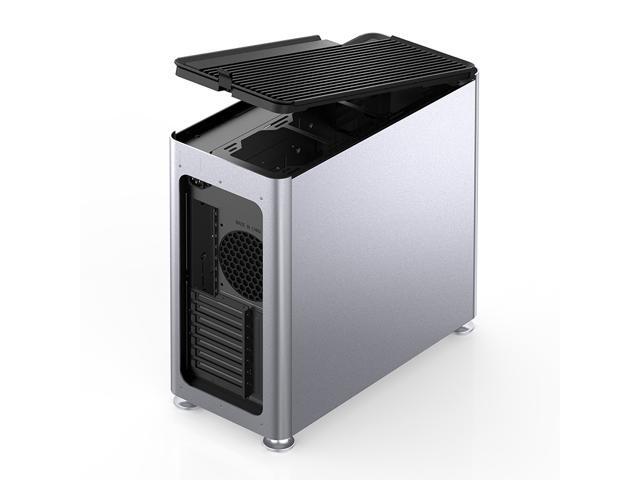

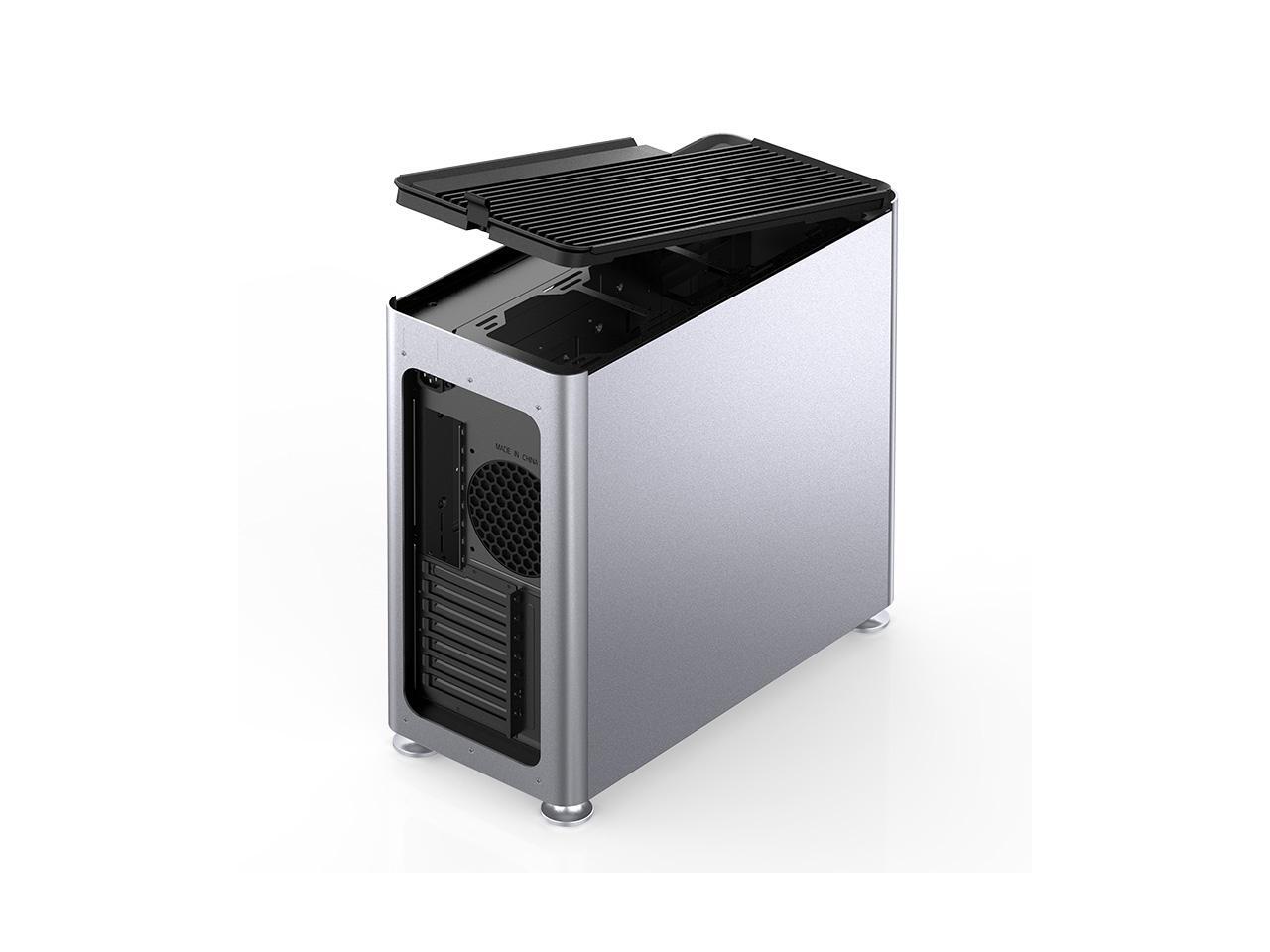

- Tool-free magnetic top cover

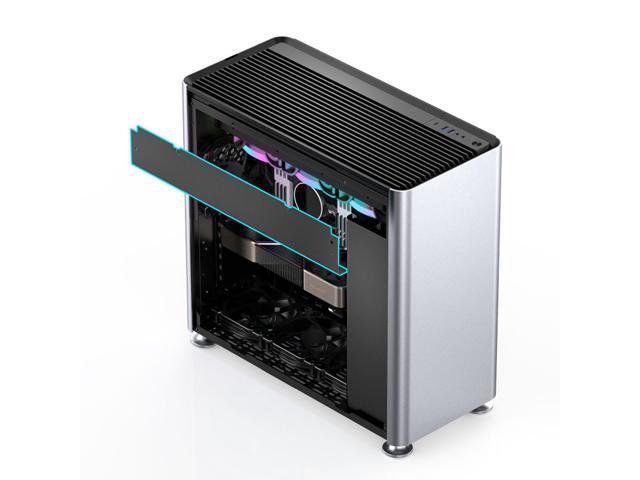

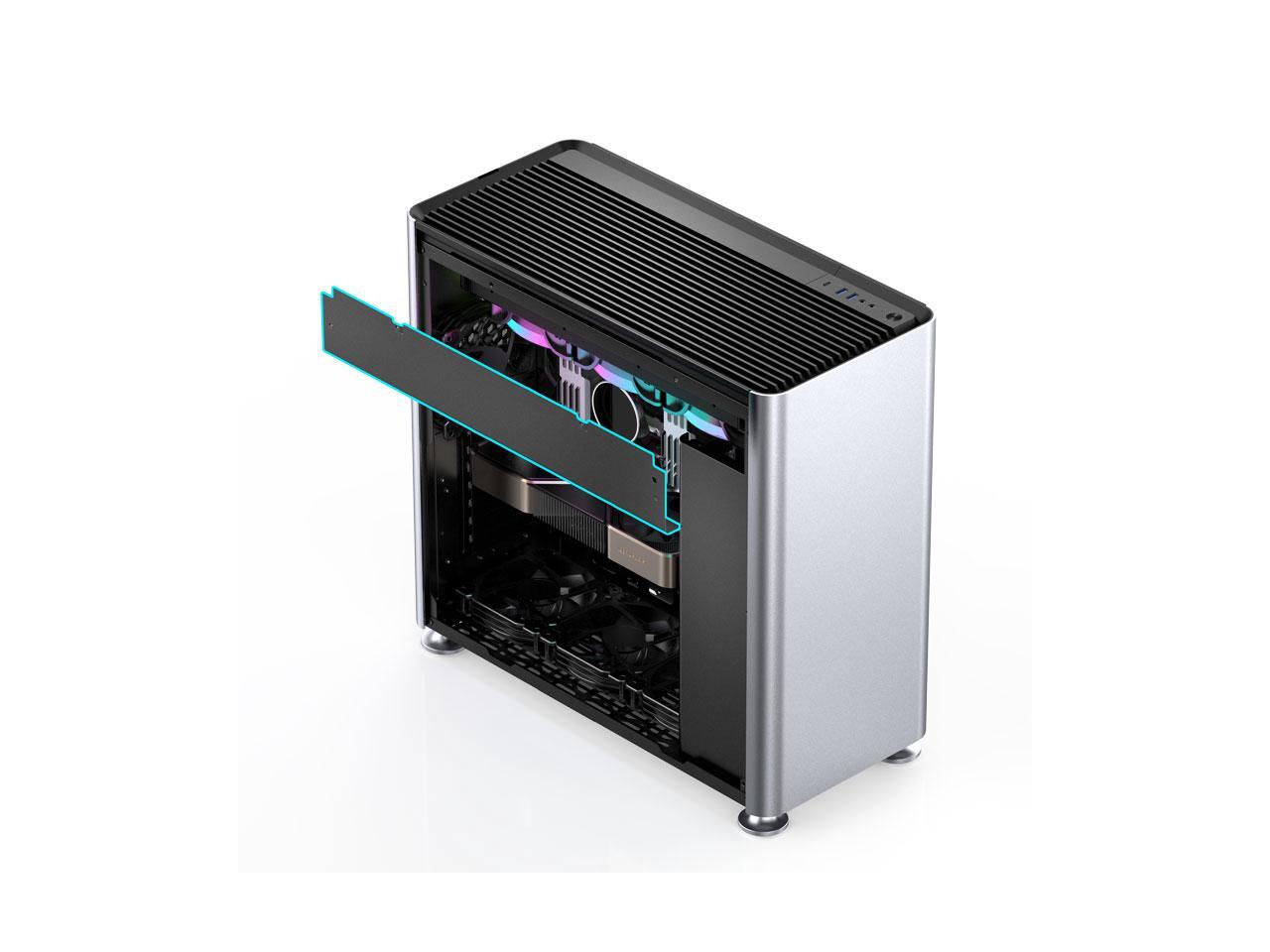

- Easy to access cable cover + optimize cable management channels
- Coping with the front-end gravity sagging of high-performance graphics cards

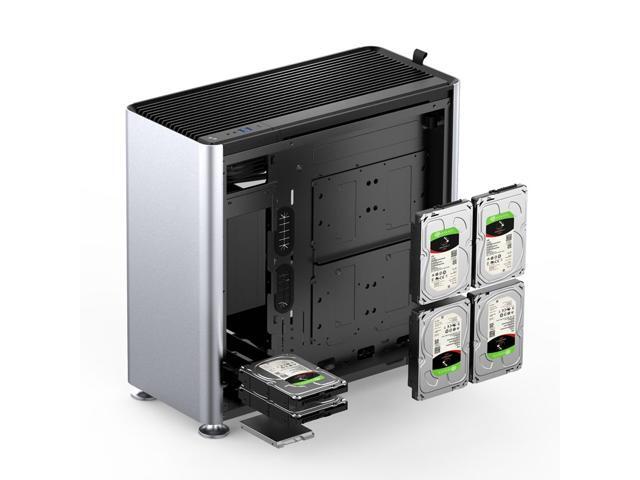

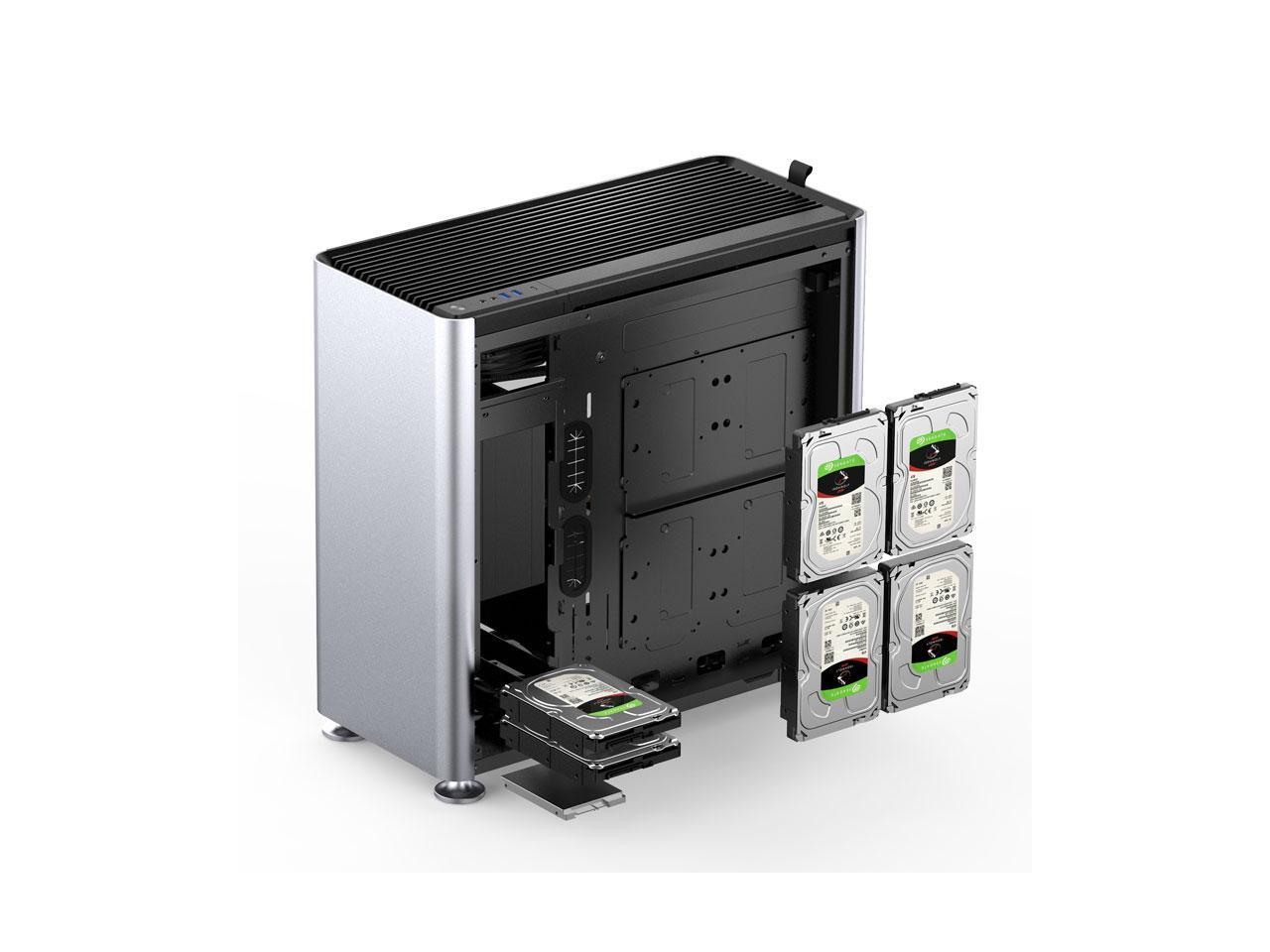

- Support up to 6 x 3.5” HDD to provide enough storage space
- Support for high wattage long PSU
- 168mm height air cooler support
- Increase the airflow by adding additional fans at the bottom/ offset radiator mounting position
+
+
Overview
Specs
Reviews
The front panel of today’s PC case uses multiple fan and mesh designs, which may destroy the integrated visual appearance, after our designers developed a new structural method, under good cooling performance conditions, the outline of the PC case can be presented intuitively and the comfortable way. i400 is the first ATX case of JONSPLUS, which meets our definition of the “i series”
Under reasonable size control, the i400 can accommodate E-ATX motherboard and 340 graphics cards, and up to 6 x 3.5” HDD storage space to meet the needs of content creators. The space for push and pull fan setup for 360 radiator (or support of 168mm height flagship air cooler), and from bottom to top’s vertical air flow to remove the heat from hardware.
With the development of PC software and hardware, graphics cards play an increasingly important role in PC gaming or design rendering. In actual use, we found that the traditional bottom-mounted + enclosed power supply compartment structure will block the airflow to graphics card. As a result, when the graphics card heats up, the fan speed will increase accordingly and increase the noise level; and the i400 has front-mounted power supply design, the cooling fans at the bottom can directly blow the graphics card, forming a good vertical air circulation. For heavy loading work projects based on GPU rendering, the i400 can continue to provide a good and stable working environment for the graphics card.
SPECIFICATION
Model name: i 400
Model version: Ver.1 (Tempered Glass version, Silver)
Product size: 502mm(L)*231mm(D)*480mm(H)(include case stand)
Case Stand height: 25mm
MB support: ITX/M-ATX/ATX/E-ATX
GPU Support: 340mm max
PCI slots: 7
HDD Support: 3.5"HDD x6 + 2.5"SSD x1 or 3.5"HDD x2 + 2.5"SSD x5
PSU Support: ATX PSII, 185mm~270mm
Front I/O: USB 3.2 Gen 2 Type-C x1(10Gbps),USB 3.2 Gen 1 Type-A x2(5Gbps),1*AUDIO,1*MIC
Air filter system: Top, bottom, rear (pre-installed)
Weight: NW: 11.47KG/GW: 13.42KG
Package size: 605*327*554mm
Foot pad: 2.5mm aluminum alloy with sandblasted treatment
COOLING SUPPORT
Chassis fan support:
TOP: 3*120mm or 2*140mm Rear: 1*120mm BOTTOM: 3*120mm or 2*140mm (Fan is optional)
Air cooler support: Height 168mm max
Radiator support:
Top: 360/280/240/120 Bottom: 240
VERTICAL GRAPHICS CARD MOUNTING MODE HARDWARE SUPPORT SPECIFICATION
GPU Support: 340mm max
PCI-E riser (Optional) length:145mm
MAIN COMPONENT MATERIAL
Front & Rear Panel: 2.5mm aluminum alloy with sand blasted finishing
Grille style top cover: ABS + PC enhanced hardness plastic
Internal Structure: 0.8-1.0mm fully blackened steel plate
Under reasonable size control, the i400 can accommodate E-ATX motherboard and 340 graphics cards, and up to 6 x 3.5” HDD storage space to meet the needs of content creators. The space for push and pull fan setup for 360 radiator (or support of 168mm height flagship air cooler), and from bottom to top’s vertical air flow to remove the heat from hardware.
With the development of PC software and hardware, graphics cards play an increasingly important role in PC gaming or design rendering. In actual use, we found that the traditional bottom-mounted + enclosed power supply compartment structure will block the airflow to graphics card. As a result, when the graphics card heats up, the fan speed will increase accordingly and increase the noise level; and the i400 has front-mounted power supply design, the cooling fans at the bottom can directly blow the graphics card, forming a good vertical air circulation. For heavy loading work projects based on GPU rendering, the i400 can continue to provide a good and stable working environment for the graphics card.
SPECIFICATION
Model name: i 400
Model version: Ver.1 (Tempered Glass version, Silver)
Product size: 502mm(L)*231mm(D)*480mm(H)(include case stand)
Case Stand height: 25mm
MB support: ITX/M-ATX/ATX/E-ATX
GPU Support: 340mm max
PCI slots: 7
HDD Support: 3.5"HDD x6 + 2.5"SSD x1 or 3.5"HDD x2 + 2.5"SSD x5
PSU Support: ATX PSII, 185mm~270mm
Front I/O: USB 3.2 Gen 2 Type-C x1(10Gbps),USB 3.2 Gen 1 Type-A x2(5Gbps),1*AUDIO,1*MIC
Air filter system: Top, bottom, rear (pre-installed)
Weight: NW: 11.47KG/GW: 13.42KG
Package size: 605*327*554mm
Foot pad: 2.5mm aluminum alloy with sandblasted treatment
COOLING SUPPORT
Chassis fan support:
TOP: 3*120mm or 2*140mm Rear: 1*120mm BOTTOM: 3*120mm or 2*140mm (Fan is optional)
Air cooler support: Height 168mm max
Radiator support:
Top: 360/280/240/120 Bottom: 240
VERTICAL GRAPHICS CARD MOUNTING MODE HARDWARE SUPPORT SPECIFICATION
GPU Support: 340mm max
PCI-E riser (Optional) length:145mm
MAIN COMPONENT MATERIAL
Front & Rear Panel: 2.5mm aluminum alloy with sand blasted finishing
Grille style top cover: ABS + PC enhanced hardness plastic
Internal Structure: 0.8-1.0mm fully blackened steel plate
