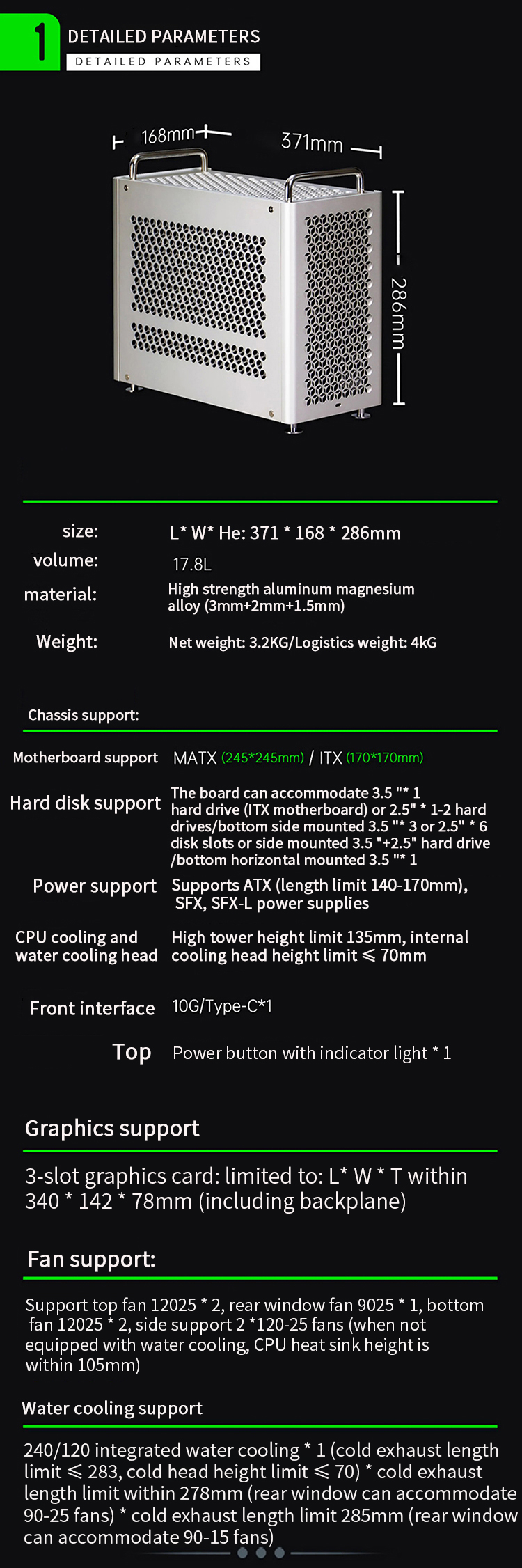

| model: |

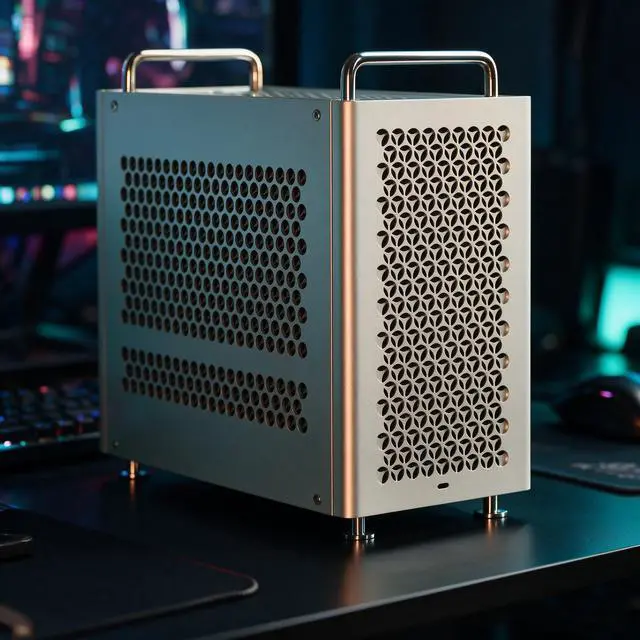

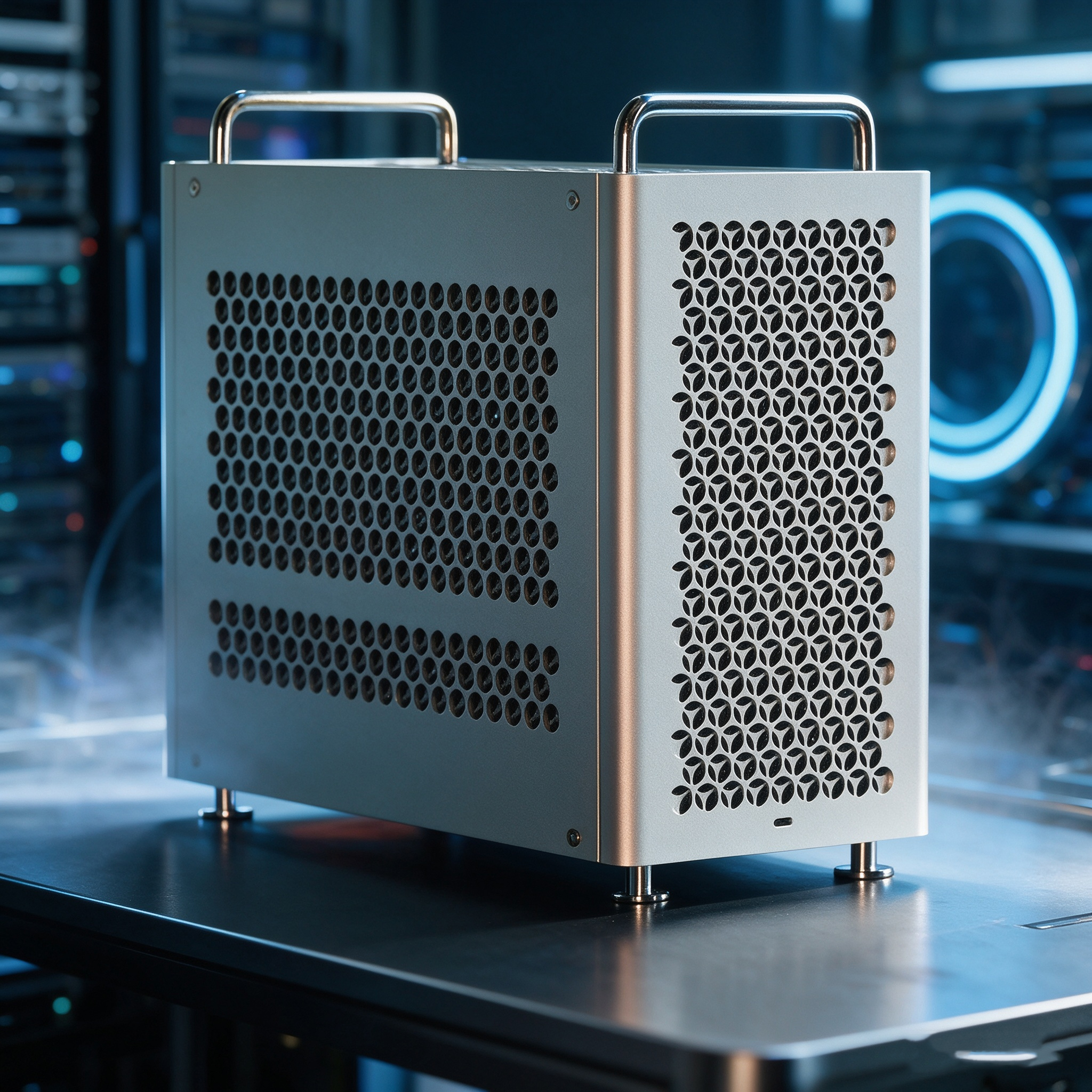

B2 PRO mesh |
| Power support: |
Supports ATX (length limit 140-170mm), SFX, SFX-L power supplies |
| Motherboard support: |
micro-ATX,(245*245mm)|mini-ITX(170*170mm) |
| CPU cooling and water cooling: |
High tower height limit 135mm, internal cooling head height limit less than 70mm.Support 240/120 integrated water cooling |
| graphics support: |
3-slot graphics card: limited to: length * width * thickness within 340 * 142 * 78mm (including backplane) |
| Hard disk support: |
The backplane can accommodate 3.5 "* 1 hard drives (ITX motherboard) or 2.5" * 1-2 hard drives/bottom side mounted 3.5 "* 3 or 2.5" * 6 disk slots or side mounted 3.5 "+2.5" hard drives/bottom horizontal mounted 3.5 "* 1 |
| Top button: |
CD patterned aluminum power button with indicator light * 1 |
| Fan support: |

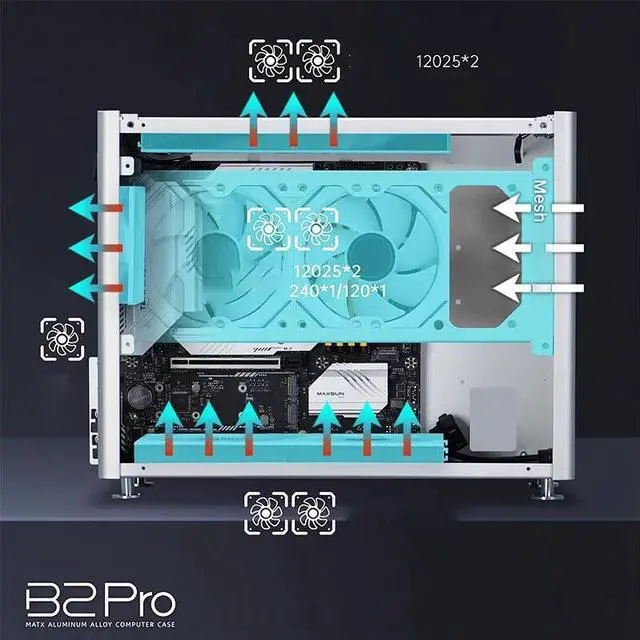

Support top fan 12025 * 2, rear window fan 9025 * 1, bottom fan 12025 * 2, side support 2 120-25 fans (when not equipped with water cooling, CPU heat sink height is within 105mm) |
| Front interface: |
10G/Type-C*1 |
| Water cooling support: |
240/120 integrated water cooling * 1 (cold exhaust length limit 283, cold head height limit 70) * cold exhaust length limit within 278mm (rear window can accommodate 90-25 fans) * cold exhaust length limit 285mm (rear window can accommodate 90-15 fans) |
| size: |

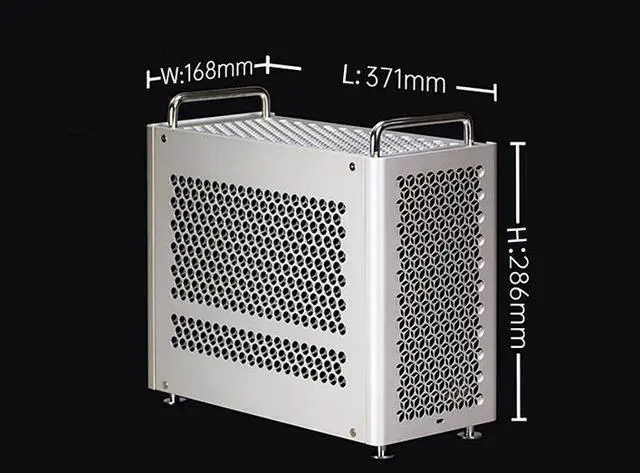

371*168*286mm |
Notice before purchasing the product: By default, only the computer case shell is sold (without case fan and other accessories, please note)
