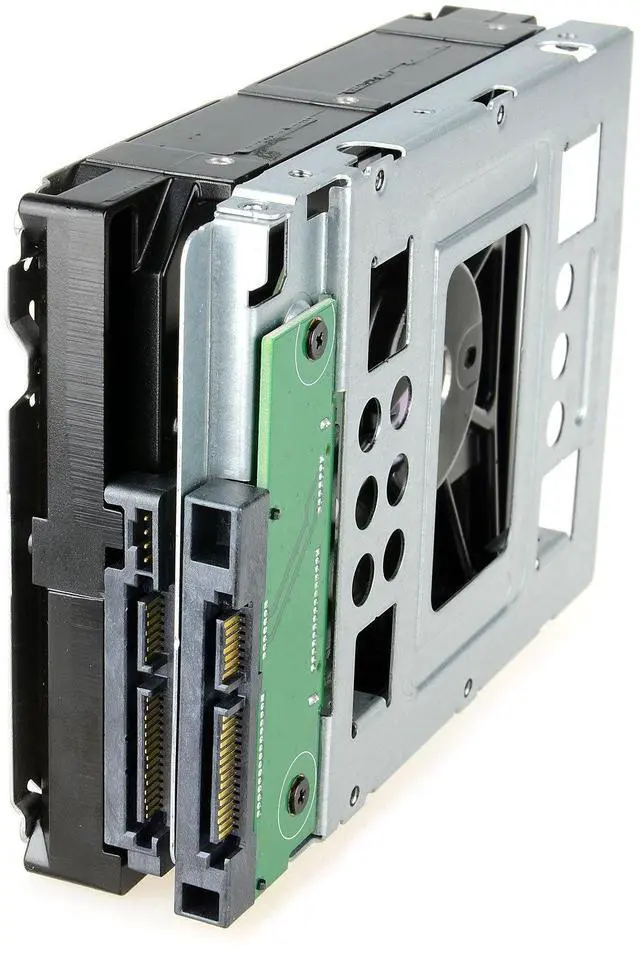

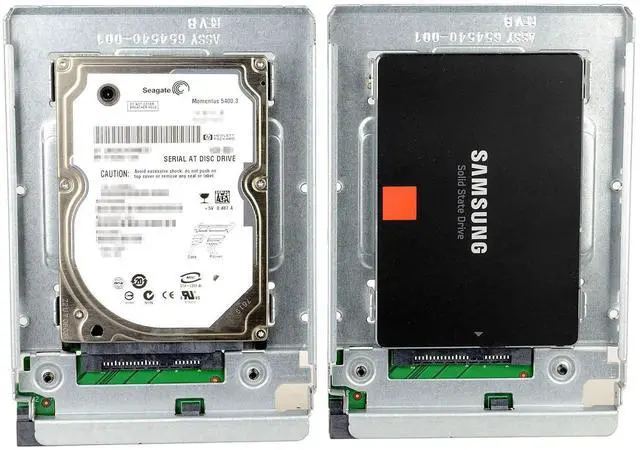

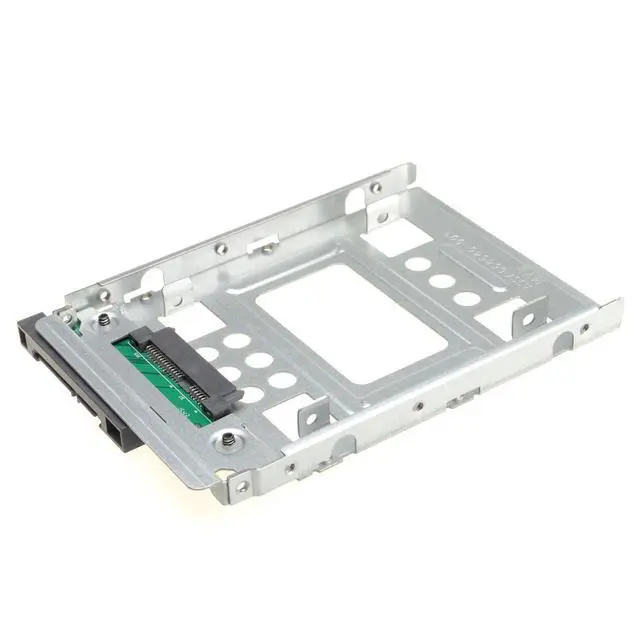

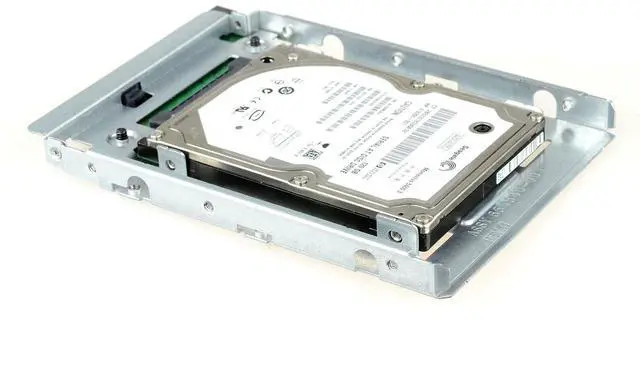

This adapter can adapts any 2.5" form factor SATA SSD (or hard drive) to any 3.5" form factor drive tray, without cables or hassles. Standard position mounting holes on Adapter's bottom and sides, equivalent to those found on a 3.5" hard drive, give you the flexibility to mount it anywhere a 3.5" drive is used.

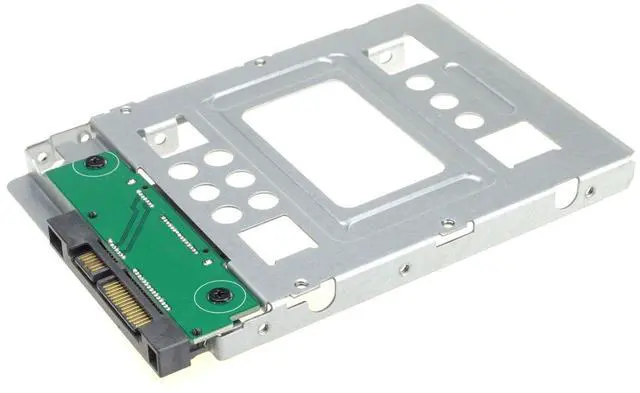

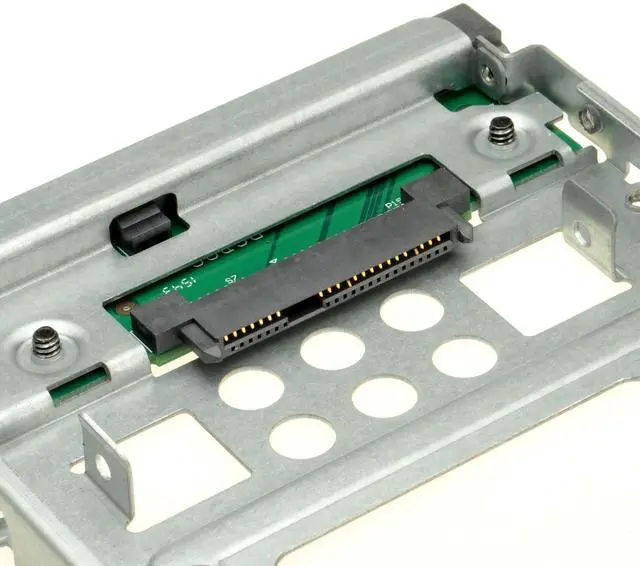

Adapter's fixed mount connectors are attached to a simple circuit board, assuring solid connections betweeen devices, and the outside connector is positioned to plug into a backplane as the tray is inserted. Other advantages of this simple design include great compatibility and undiminished speed.
Specification:
External Interface -- SATA(Max. SATA3.0 6Gbps/Sec)
Compatible Drive Type -- 2.5" SATA HDD SSD
Device fit -- 3.5" SATA hard hot-swappable drive bay
Structure -- SECC(Steel Electrogalvanized Cold-rolled Coil) Steel body
Dimension (L x W x H) -- 147 x 101 x 12mm
Weight -- 97g

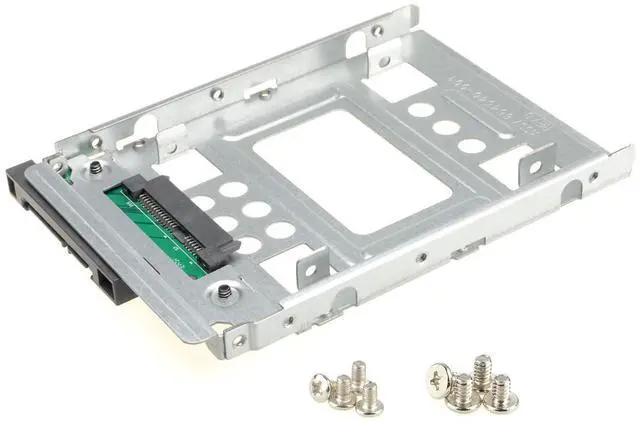

Item Included:
2.5" to 3.5" SATA SSD HDD Adapter x1 (SSD and HDD not included)
M3 x 5mm Phillips Pan Head Screw x4
#6-32 x 5mm Phillips Pan Head Screw x4
