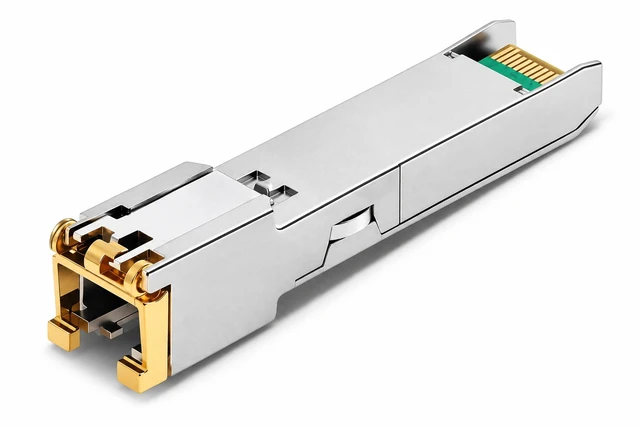

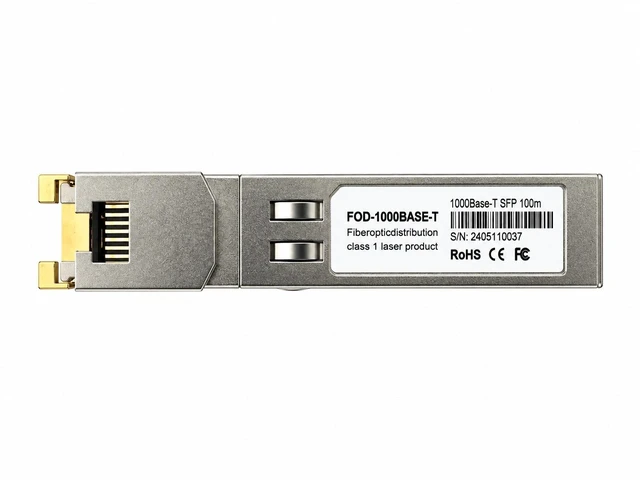

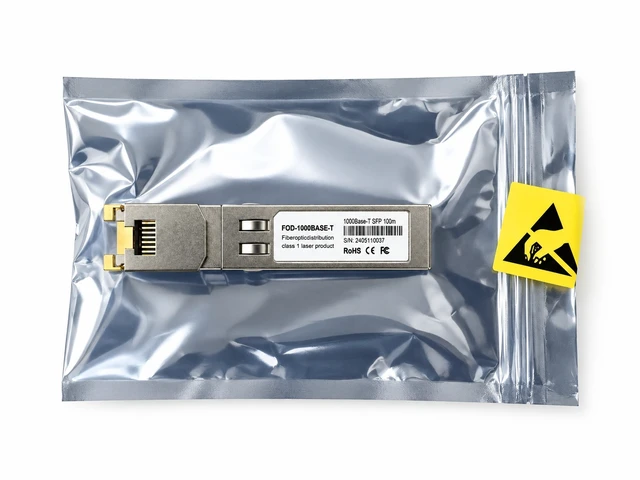

Black Box LFP417 Compatible 1000BASE-T SFP Copper RJ45 Transceiver Module, 100m
- Direct replacement for the Black Box LFP417 1000BASE-T SFP module
- Coded and tested in Black Box switches and media converters
- Compliant with SFP MSA, IEEE 802.3, and IEEE 802.3ab
- 100m (328 ft) reach for Gigabit Ethernet over Cat5, Cat5e, or better copper cable
- Power draw of 1.1 W
- Compact RJ45 female connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Black Box LFP417 Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ45)
This Black Box LFP417 compatible SFP module delivers Gigabit Ethernet over Cat5, Cat5e, or better copper cable at distances up to 100 meters (328 ft) through an RJ45 connector. It meets the Gigabit Ethernet and 1000BASE-T specifications in IEEE 802.3-2002 and IEEE 802.3ab, so an SFP slot on a switch or media converter can take a standard copper run for device connections and switch-to-switch links.
Every unit is programmed with Black Box EEPROM coding and tested in Black Box 1G switches and network devices before it ships, so the port recognizes it exactly as it would the OEM LFP417. Each module is engineered, produced, and tested in-factory, and against the OEM part it can cut networking cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | LFP417 | Manufacturer Part# | FOD-BLB-LFP417 |
| Form Factor | SFP | Data Rate | 1000 Mbps |
| Wavelength | NA | Media Type | Cat5/5e/6/6a cable |
| Max Distance | 100 m | Transmitter Type | N/A |
| Receiver Type | N/A | Transmitter Power | N/A |
| Receiver Sensitivity | N/A | Extinction Ratio | N/A |
| Receiver Overload | N/A | Connector | RJ45 Female |
| Power Consumption | 1.1 W | DDM/DOM | No |
| Compliance | RoHS, CE, REACH, SFP MSA, IEEE 802.3, IEEE 802.3ab | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | Gigabit Ethernet, switch to switch interface, switch to NIC or media converter interface, other 1G links | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 68.0×13.5×14 mm | ||
