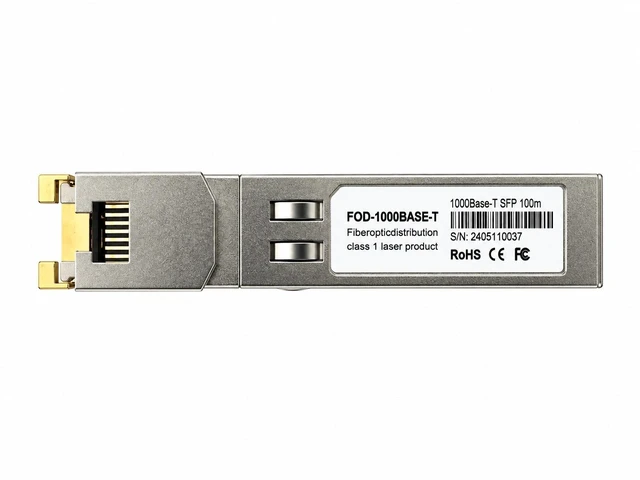

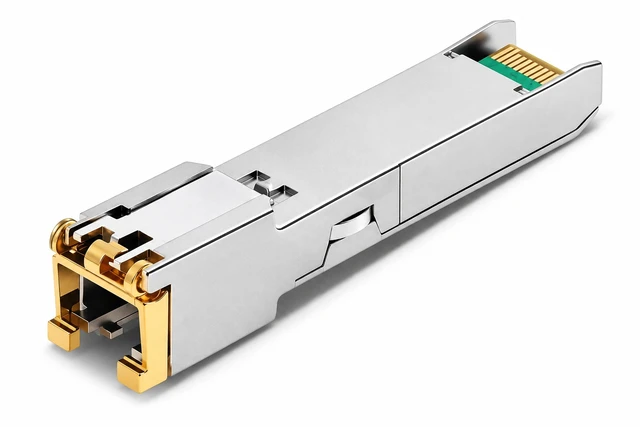

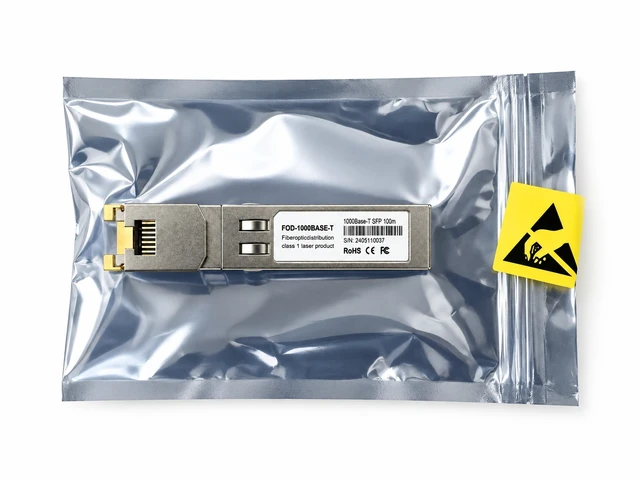

Finisar FCLF8522P2BTL Compatible 10/100/1000BASE-T SFP Copper RJ45 Transceiver Module, 100m
- Direct replacement for the Finisar FCLF8522P2BTL 10/100/1000BASE-T SFP module
- Uncoded MSA-standard build, drops into hardware that accepts standards-based optics
- Compliant with SFP MSA, IEEE 802.3, and IEEE 802.3ab
- Triple-speed 10, 100, and 1000BASE-T operation over the same RJ45 port
- 100m (328 ft) reach over Cat5, Cat5e, or better copper cable
- Power draw of 1.1 W
- Compact RJ45 female connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Finisar FCLF8522P2BTL Compatible 10/100/1000BASE-T SFP Transceiver Module (Copper, 100m, RJ45)
This Finisar FCLF8522P2BTL compatible SFP module delivers 10, 100, and 1000BASE-T connectivity over Cat5, Cat5e, or better copper cable at distances up to 100 meters (328 ft) through an RJ45 connector. Triple-speed support lets a single port serve older 10 and 100 Mbps equipment alongside Gigabit hardware. It meets the Gigabit Ethernet and 10/100/1000BASE-T specifications in IEEE 802.3-2002 and IEEE 802.3ab.
Because Finisar parts are sold as standards-based optics rather than vendor-coded modules, this one ships uncoded to the SFP MSA and works in open networking platforms, white-box switches, media converters, and any equipment that accepts MSA-compliant transceivers. Each module is engineered, produced, and tested in-factory, and against the OEM part it can cut networking cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | FCLF8522P2BTL | Manufacturer Part# | FOD-FNS-FCLF8522P2BTL |
| Form Factor | SFP | Data Rate | 1000 Mbps |
| Wavelength | NA | Media Type | Cat5/5e/6/6a cable |
| Max Distance | 100 m | Transmitter Type | N/A |
| Receiver Type | N/A | Transmitter Power | N/A |
| Receiver Sensitivity | N/A | Extinction Ratio | N/A |
| Receiver Overload | N/A | Connector | RJ45 Female |
| Power Consumption | 1.1 W | DDM/DOM | No |
| Compliance | RoHS, CE, REACH, SFP MSA, IEEE 802.3, IEEE 802.3ab | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | Gigabit Ethernet, switch to switch interface, switch to NIC or media converter interface, other 1G links | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 68.0×13.5×14 mm | ||
