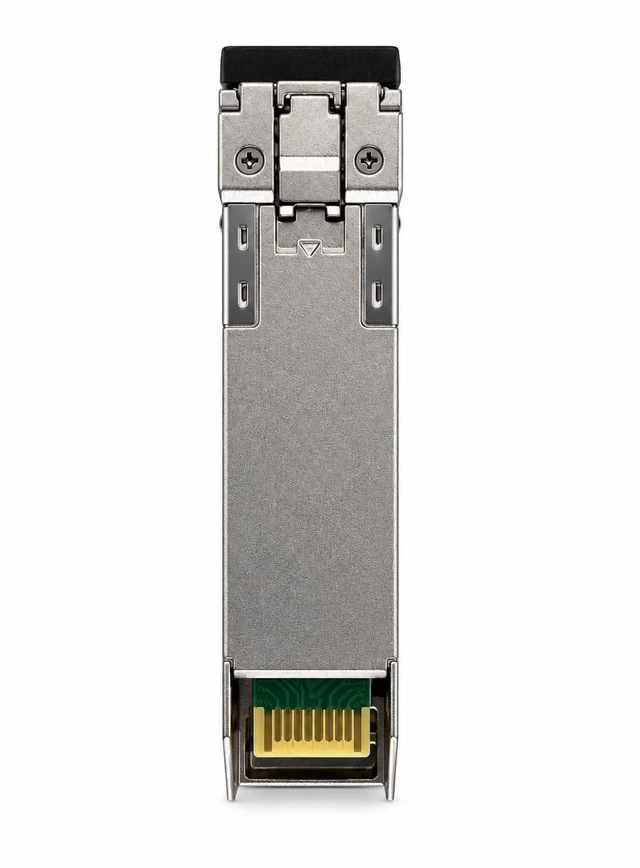

Finisar FTLX8574D3BCV Compatible 10GBASE-SR SFP+ Transceiver Module, 850nm MMF, 300m, LC, DOM
- Direct replacement for the Finisar FTLX8574D3BCV 10GBASE-SR SFP+ module
- Uncoded MSA-standard build, drops into hardware that accepts standards-based optics
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 300m reach on OM3, 400m on OM4, and 82m on OM2 multimode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- VCSEL transmitter with PIN receiver at 850nm
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Finisar FTLX8574D3BCV Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
This Finisar FTLX8574D3BCV compatible SFP+ transceiver moves 10GBASE-SR and 10GBASE-SW traffic across multimode fiber at 850nm through an LC duplex interface, reaching 300 meters on OM3, 400 meters on OM4, and 82 meters on older OM2. Those distances cover the links that actually occur inside a building, from server to top-of-rack, rack to rack, or floor to floor.
Finisar parts are standards-based rather than vendor-coded, so this module ships uncoded to the SFP+ MSA and works in open networking platforms, white-box switches, media converters, and any MSA-compliant equipment. Digital Optical Monitoring is built in, reporting temperature, voltage, and optical power live so a weakening link surfaces during maintenance rather than during an outage, and the module meets SFF-8431, SFF-8432, SFF-8472, and IEEE 802.3ae for clean interoperation at the far end.
Specifications
| Compatible OEM Part# | FTLX8574D3BCV | Manufacturer Part# | FOD-FNS-FTLX8574D3BCV |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 850 nm | Media Type | MMF |
| Max Distance | 82m @ OM2, 300m @ OM3, 400m @ OM4 | Transmitter Type | VCSEL |
| Receiver Type | PIN | Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -10 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-SR/10GBASE-SW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm | ||
