    1.25G SFP 1000Base-SX, 850nm MMF, up to 550 Meters, Compatible with Ubiquiti UF-MM-1G

    Be the first to review this product...
    • Data Rate: 1.25Gb/s
    • Wavelength: 850-nm
    • Reach: up to 550 meters; Fiber Type: Dual LC OM3 multi-mode fiber
    • Compatible with Ubiquiti UF-MM-1G
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Products
    image for this item 1000Base-T
    LX 1000Base-LX
    image for this item 1000Base-SX
    10G-T 10GBase-T
    10GBase-T 10GBase-SR
    LR 10GBase-LR
    Data Rate 1.25G 1.25G 1.25G 10G 10G 10G
    Wavelength RJ-45 1310nm 850nm RJ-45 850nm 1310nm
    Fiber Type CAT.5e SMF MMF CAT.6a/CAT.7 MMF SMF
    Distance 100 m 20KM 550 m <30m <300m 10km
    Optical Comp. 100 m N/A FP/PIN PF/PIN - VCSEL/PIN DFB/PIN
    Tx Power(dBm) - -9~-3 -8~-4 - -1~-6 1~-3
    E.R(dBm) - >9 >9 - >=6 >=3.5
    Rx Sens.(dBm) - -22~-3 -18~0 - -11.1~-1 -12.6~0.5
    Temp 0~70 0~70 0~70 0~70 0~70 0-70
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item

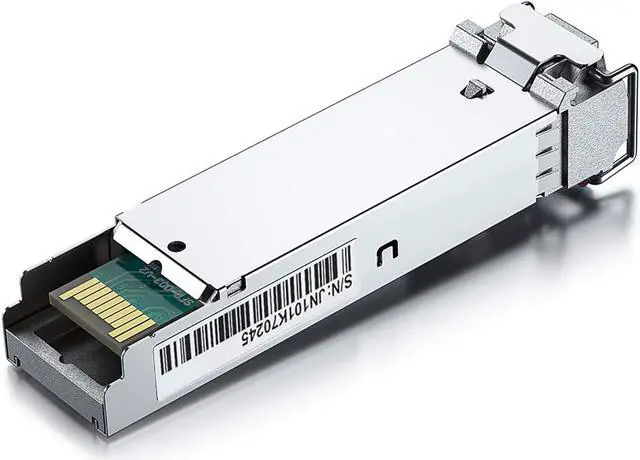

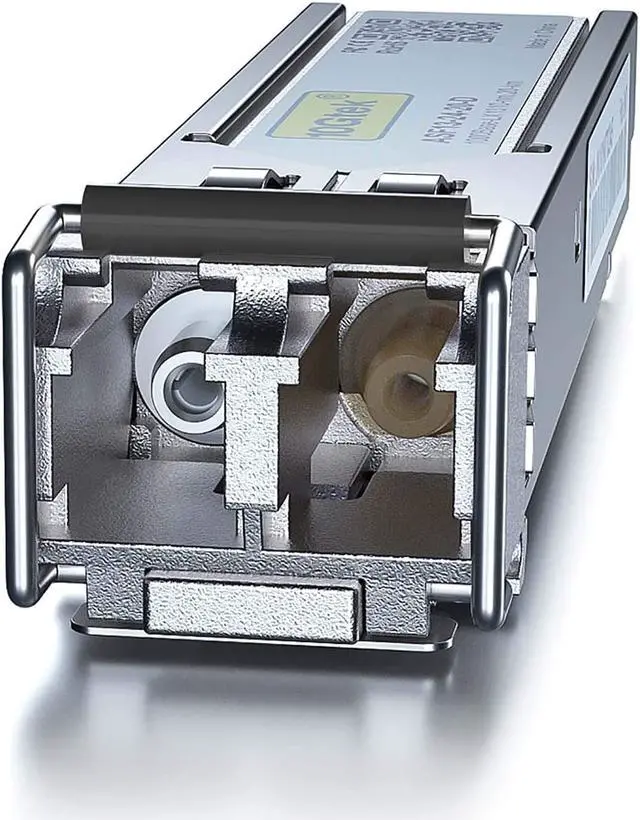

    ASF85-24-X2-D

    ASF85-24-X2-D is a 1.25Gbps SFP transceiver supporting up to 550 meters transmission over OM3 MMF Fiber, following IEEE 802.3ab and SFP MSA 1000Base-SX.
    The SFP transceiver consists of VCSEL laser TOSA, PIN (tia) ROSA, Driver IC and eeprom I2C unit.

    Features:
    1000Base-SX
    Data Rate: 1.25Gb/s
    Interface: Dual LC connectors
    850nm VCESL Laser Transmitter
    550 meters transmission over OM3 MMF Cable
    Single 3.3V Power and TTL Logic Interface
    Hot-Pluggable SFP Footprint
    Compliant with IEEE 802.3ab
    Compliant with SFP MSA
    With DDM/DOM
    Temp. Range(?): 0~70

    Applications:
    Gigabit Ethernet
    Fiber Channel
    Other Optical Links
