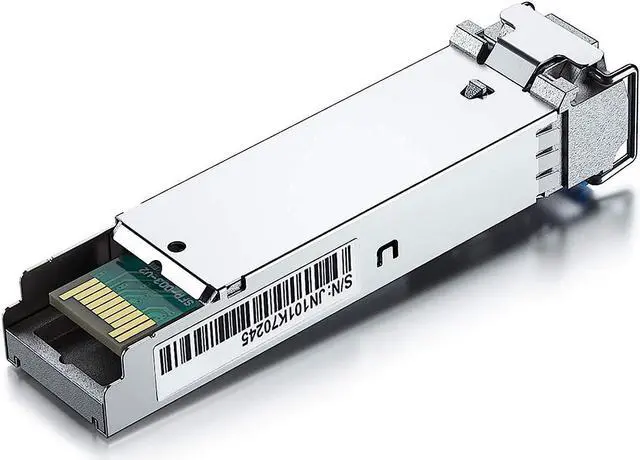

    10Gtek 1.25G SFP Transceiver 1000Base-LX, 1310nm SMF SingleMode Fiber Optic Module, up to 10 km, for Cisco GLC-LH-SMD, Meraki MA-SFP-1GB-LX10, Ubiquiti UniFi, Fortinet, Mikrotik, TP-Link TL-SM311LS

    (1) Write a Review
    • 1 Pack
    • 2 Packs
    • 4 Packs
    • 10 Packs
    • 10GBase-SR: 300m
    • 10GBase-T
    • 10GBase-LR: 10km
    • 1000Base-T: 100m
    • 1000Base-SX
    • 1000Base-LX
    • 25GBase-SR: 100m
    • 25GBase-LR: 10km
    • 1000BASE-LX/LH SFP to LC Optical Gigabit Ethernet Fiber transceiver module, 1.25G Singlemode MiniGBIC SFP(supports OS1/OS2/OS3 fiber cables), Duplex LC connector, 1310nm, DDM, up to 10km.
    • [Wide Compatibility] Compatible with Cisco GLC-LH-SMD/GLC-LH-SM/SFP-GE-L, Meraki MA-SFP-1GB-LX10, Ubiquiti UniFi, Fortinet, Mikrotik, D-Link, Supermicro, Netgear, TP-Link TL-SM311LS and Other Open Switches. Widely support Gigabit Ethernet, Fiber Channel, Other Optical Links and other devices.
    • [Easy to Use] Easy installation, plug and play, fully hot-pluggable with ESD protection. Widely used in fiber switches, routers, NIC, server or other fiber optic equipments with 1Gbps SFP ports. SFP MSA Compliant, IEEE 802.3ab Compliant.
    • [Superior DDM Monitoring] DDM allows you to monitor the critical information concerning the status of the transmitted and received signals of the transceivers in real-time to find out some potential problems. Operating Temperature: 0°C to 70°C.
    +
    +
    Overview
    Specs
    Reviews (1)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Products
    image for this item 1000Base-T
    LX 1000Base-LX
    image for this item 1000Base-SX
    10GBase-T 10GBase-T
    SR 10GBase-SR
    LR 10GBase-LR
    Data Rate 1.25G 1.25G 1.25G 10G 10G 10G
    Wavelength RJ-45 1310nm 850nm RJ-45 850nm 1310nm
    Fiber Type CAT.5e SMF MMF CAT.6a/CAT.7 MMF SMF
    Distance 100 m 20KM 550 m <30 m <300 m 10 km
    Optical Comp. 100 m FP/PIN PF/PIN N/A VCSEL/PIN DFB/PIN
    Tx Power(dBm) -9~-3 -8~-4 - -1~-6 1~-3
    E.R(dBm) >9 >9 - >=6 >=3.5
    Rx Sens.(dBm) -22~-3 -18~0 - -11.1~-1 -12.6~0.5
    Temp 0~70 0~70 0~70 0~70 0-70 0-70
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    ASF13-24-20-D

    10Gtek's ASF13-24-20-D is a 1.25Gbps SFP transceiver supporting up to 20 km transmission over SMF Fiber, following IEEE 802.3ab and SFP MSA 1000Base-LX.

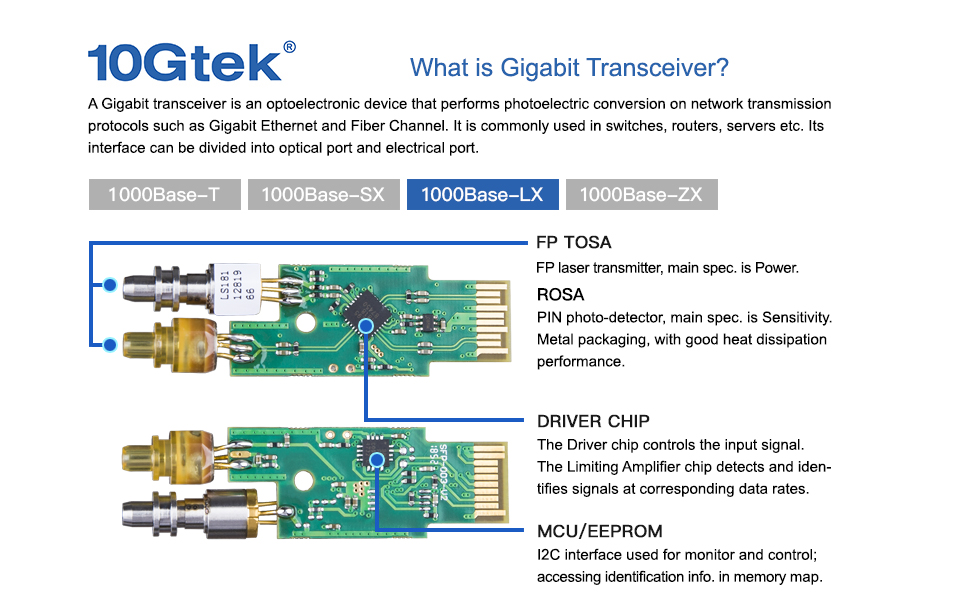

    The SFP transceiver consists of FP laser TOSA, PIN (tia) ROSA, Driver IC and eeprom I2C unit.

    Features:
    1000Base-LX
    Data Rate: 1.25Gb/s
    Interface: Dual LC connectors
    1310nm FP Laser TOSA
    PIN-TAI ROSA
    up to 20 km transmission
    Compliant with IEEE 802.3ab
    Compliant with SFP MSA
    With DDM/DOM
    Temp. Range(?): 0~70

    Applications:
    Gigabit Ethernet
    Fiber Channel
    Other Optical Links
