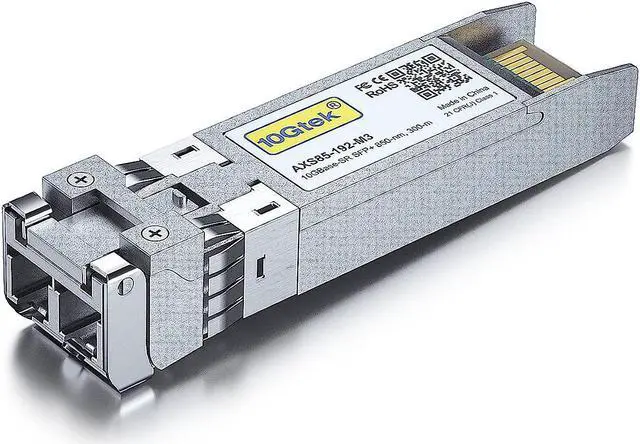

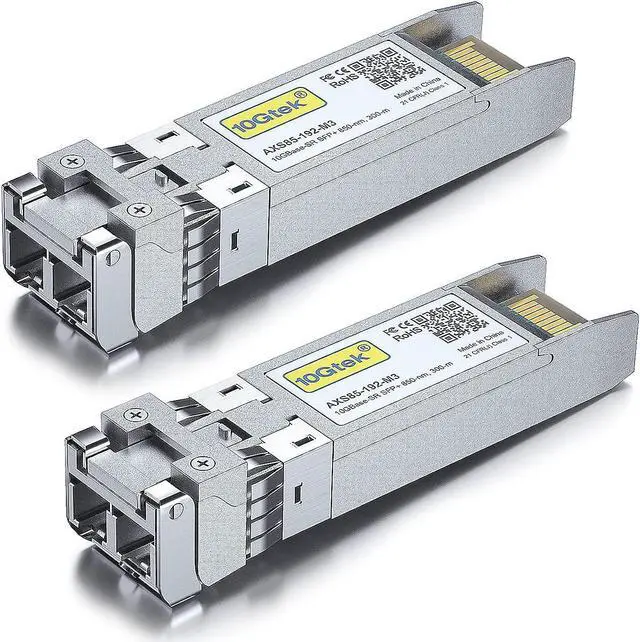

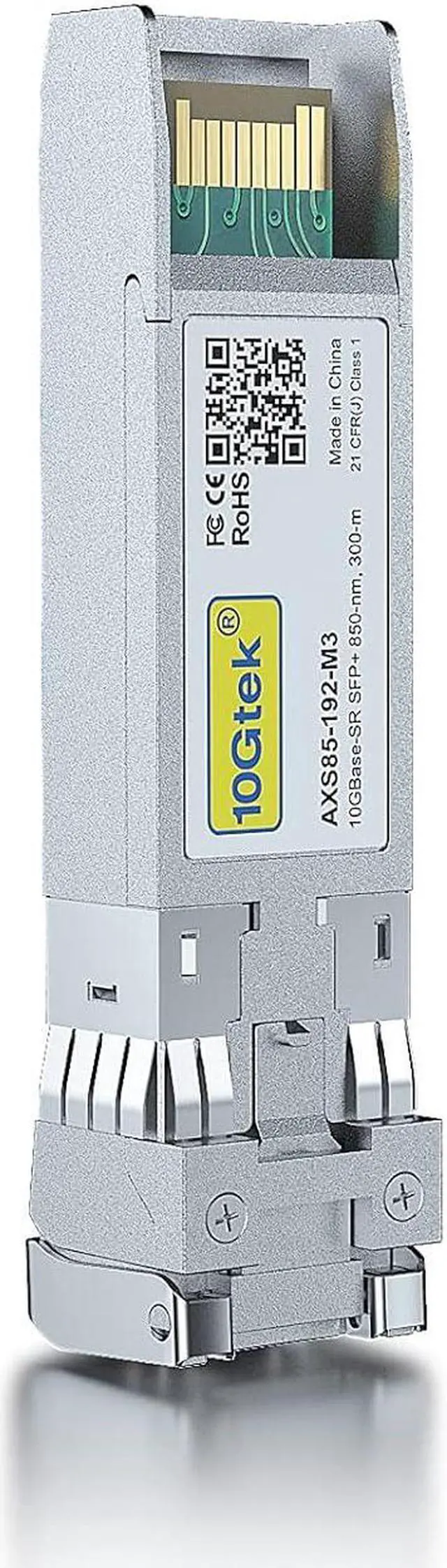

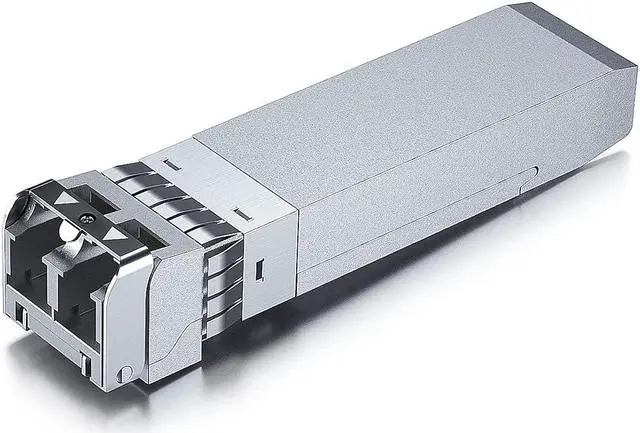

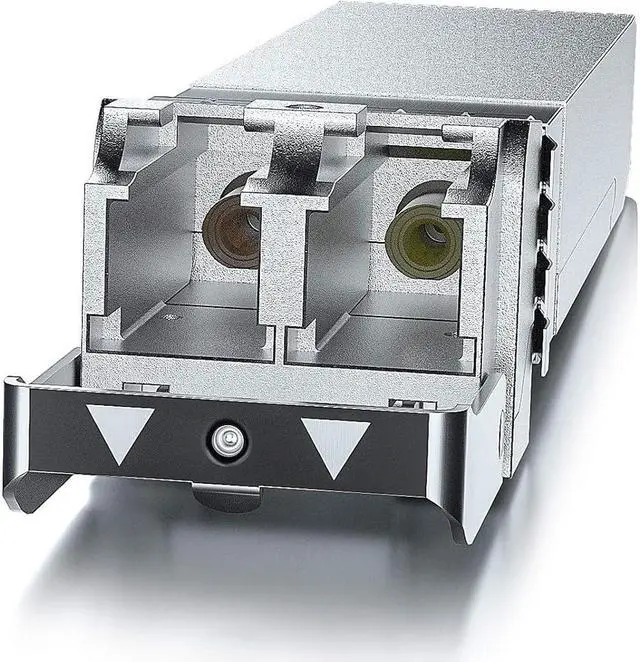

10Gtek 2 Packs Ubiquiti Networks 10GBase-SR 10G SFP+ Module, Multi-mode, Duplex, 850nm, up to 300m, Compatible with Ubiquiti UniFi UF-MM-10G, UACC-OM-MM-10G-D-2

Name: 10Gtek 2 Packs Ubiquiti Networks 10GBase-SR 10G SFP+ Module, Multi-mode, Duplex, 850nm, up to 300m, Compatible with Ubiquiti UniFi UF-MM-10G,
Brand: 10Gtek
SKU: 2AS-003C-002F3
Price: 35.99 USD
Availability: InStock
Rating: 5 (1 reviews)

(1) Write a Review

Data Rate: 10G
Wavelength: 850-nm
Interface: Dual LC connectors
Reach: up to 300m
Fiber Type: Dual LC OM3/OM4 multi-mode fiber
Compatible with Ubiquiti UF-MM-10G

Choking Hazard Small parts. Not for children under 3 years.

Overview

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

AXS85-192-M3

10Gtek's AXS85-192-M3 is a 10Gbps SFP+ transceiver supporting up to 300 m transmission over daul LC OM3 MMF fiber, following IEEE 802.3ae and SFP+ MSA 10GBase-SR. The SFP+ transceiver consists of VCESL laser, PIN-(tia), Driver IC and eeprom I2C unit based on COB (Chip on Board) technology.

Features:
10GBase-SR
Data Rate: 1.25G/10G, multi-rate
300 meters transmission over OM3/OM4 MMF Cable
Interface: Dual LC connector
RoHS
Compliant with MSA SFP+
Compliant with IEEE 802.3ae
Temp. Range(?): 0~70

Applications:

10 Gigabit Ethernet
1.25 Gigabit Ethernet

Products	1000Base-T	1000Base-SX	1000Base-LX	10GBase-T	10GBase-SR	10GBase-LR
Data Rate	1.25G	1.25G	1.25G	10GG	10G	10G
Wavelength	RJ-45	850nm	1310nm	RJ-45	850nm	1310nm
Fiber Type	CAT.5e	MMF	SMF	CAT.6a/CAT.7	MMF	SMF
Distance	100 m	550 m	20 km	<30 m	<300 m	10 km
Optical Comp	-	PF/PIN	FP/PIN	-	VCSEL/PIN	DFB/PIN
Tx Power(dBm)	-	-8~-4	-9~-3	-	-1~-6	1~-3
E.R(dBm)	-	>9	>9	-	>=6	>=3.5
Rx Sens.(dBm)	-	-18~0	-22~-3	-	-11.1~-1	-12.6~0.5
Temp	0~70	0~70	0~70	0~70	0~70	0~70
