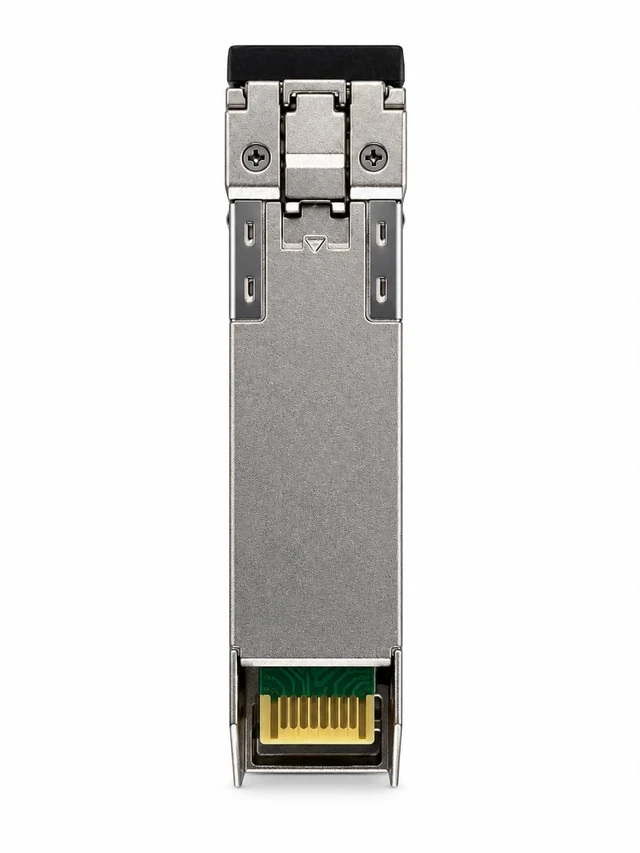

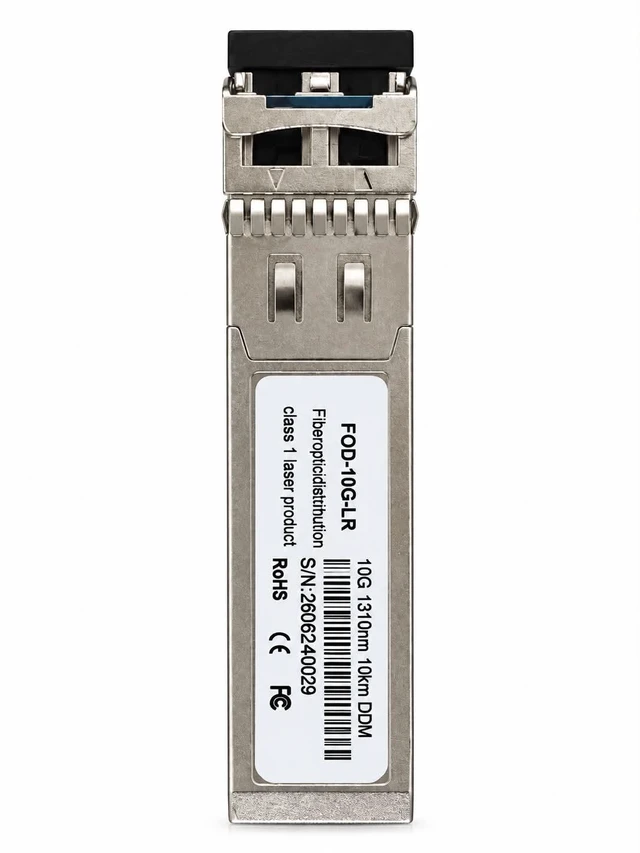

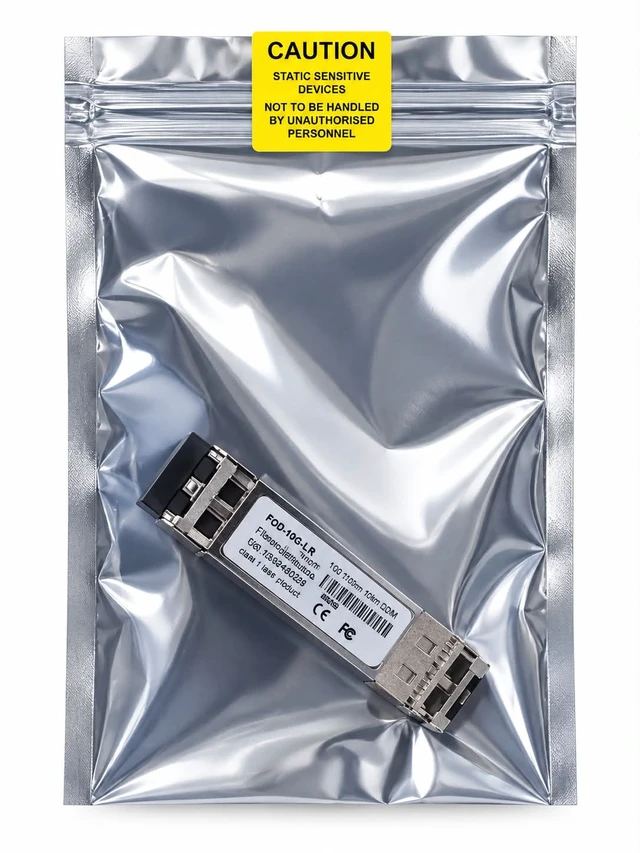

Dell Force10 GP-10GSFP-1L Compatible 10GBASE-LR SFP+ Transceiver Module, 1310nm SMF, 10km, LC, DOM
- Direct replacement for the Dell Force10 GP-10GSFP-1L 10GBASE-LR SFP+ module
- Coded and tested in Dell Force10 S-series and PowerSwitch platforms for guaranteed compatibility
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 10km reach at 1310nm over single-mode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- DFB transmitter with PIN receiver for stable long-reach performance
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Dell Force10 GP-10GSFP-1L Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
This Dell Force10 GP-10GSFP-1L compatible SFP+ transceiver carries 10GBASE-LR and 10GBASE-LW traffic up to 10 kilometers over single-mode fiber, operating at 1310nm through an LC duplex interface. Built-in Digital Optical Monitoring reports temperature, voltage, and optical power in real time, so a degrading link shows up before it drops.
The module meets the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, so it interoperates cleanly in mixed-vendor networks. It suits Force10 and PowerSwitch uplinks, campus backbones, building-to-building fiber runs, metro area links, and data center interconnects. Every unit is programmed with Dell EEPROM coding and tested in Dell 10G switches, servers, and network interface cards before it ships, so the port recognizes it exactly as it would the OEM GP-10GSFP-1L, at a much lower price.
Specifications
| Compatible OEM Part# | GP-10GSFP-1L | Manufacturer Part# | FOD-DEL-GP10GSFP1L |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 1310 nm | Media Type | SMF |
| Max Distance | 10 km | Transmitter Type | DFB |
| Receiver Type | PIN | Transmitter Power | -6 ~ 0 dBm |
| Receiver Sensitivity | < -14.4 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-LR/10GBASE-LW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
